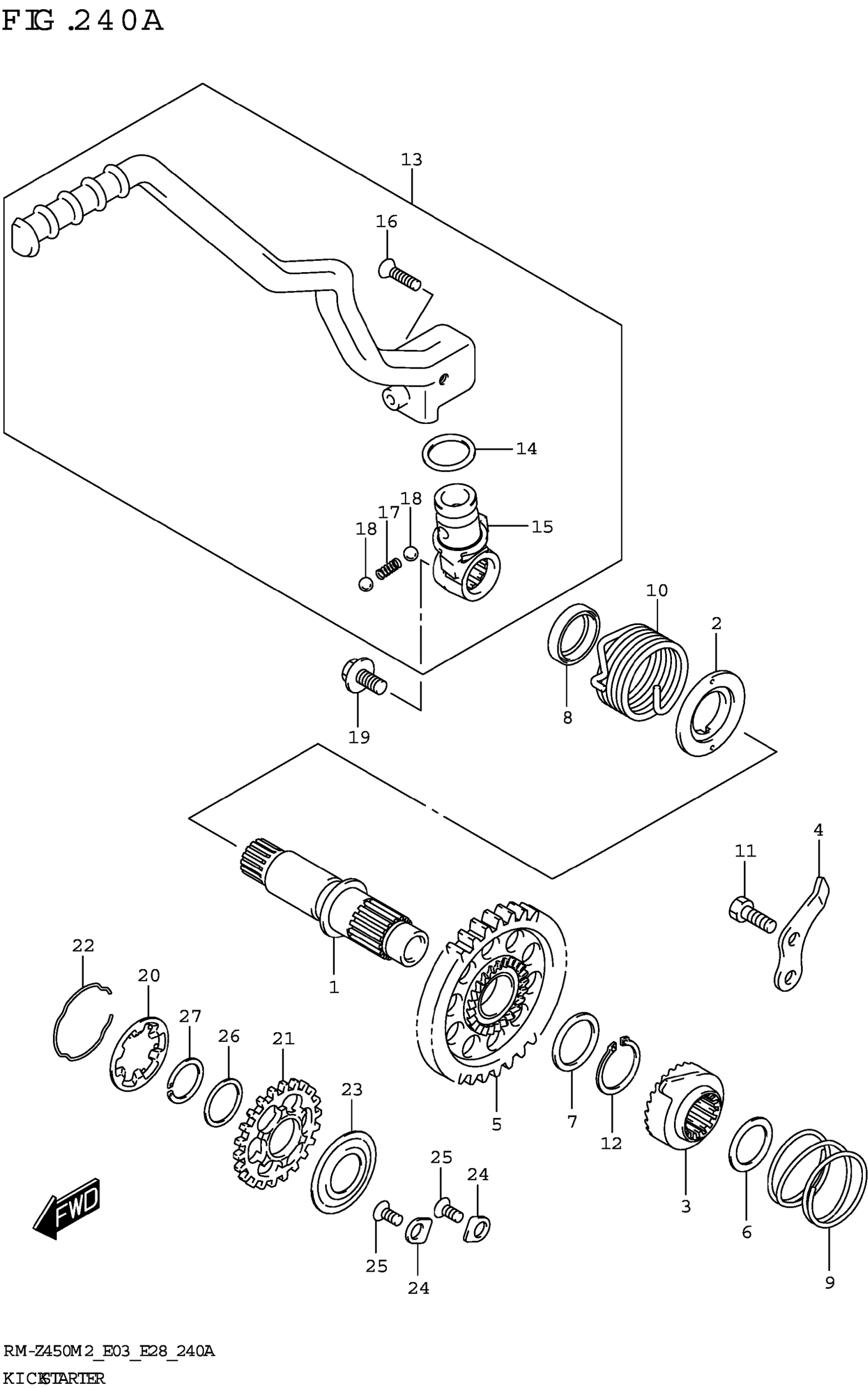

Suzuki RM-Z450M2 (2022) KICK STARTER Diagram

#

Description
Price

1

SHAFT,KICK STARTER

26211-28H00

$128.28

2

GUIDE,KICK STARTER SFT SPRING

26221-35G00

$5.52

3

STARTER,KICK

26231-28H00

$50.01

4

GUIDE,KICK STARTER

26232-28H00

$8.32

5

GEAR,KICK STARTER DRIVE (NT:3 | )

26240-28H00

Unavailable

6

SHIM (17X24X0.5)

09181-17130

$2.80

7

SHIM (20X26X1)

09181-20139

$1.82

8

SEAL,OIL (20X27X5)

09283-20031

$4.73

9

SPRING

09440-32002

$2.10

10

SPRING

09448-38007

$6.31

11

BOLT

01500-0612A

$1.80

12

CIRCLIP

08331-3120A

$2.01

13

LEVER ASSY,KICK STARTER

26300-28H31

$200.03

14

.O-RING

26313-28E21

$2.45

15

.JOINT,KICK STARTER LEVER

26331-28H20

$62.35

16

.SCREW (6X27.5)

09127-06016

$2.80

17

.SPRING

09440-05031

$1.45

18

BALL

06111-07004

$1.22

19

BOLT (8X14)

09103-08522

$3.77

20

CAP,BREATHER GEAR

11335-28H00

$13.63

21

GEAR,BREATHER (NT:22)

11337-28H00

$120.57

22

CIRCLIP,BREATHER CAP

11338-28H00

$7.68

23

PLATE,BREATHER GEAR

11339-28H00

$7.15

24

RETAINER,BREATHER GEAR SHAFT

24741-28H00

$5.05

25

SCREW (6X12)

09126-06011

$2.01

26

SHIM (22X28X0.5)

09181-22130

$2.80

27

CIRCLIP

09380-22006

$2.80
