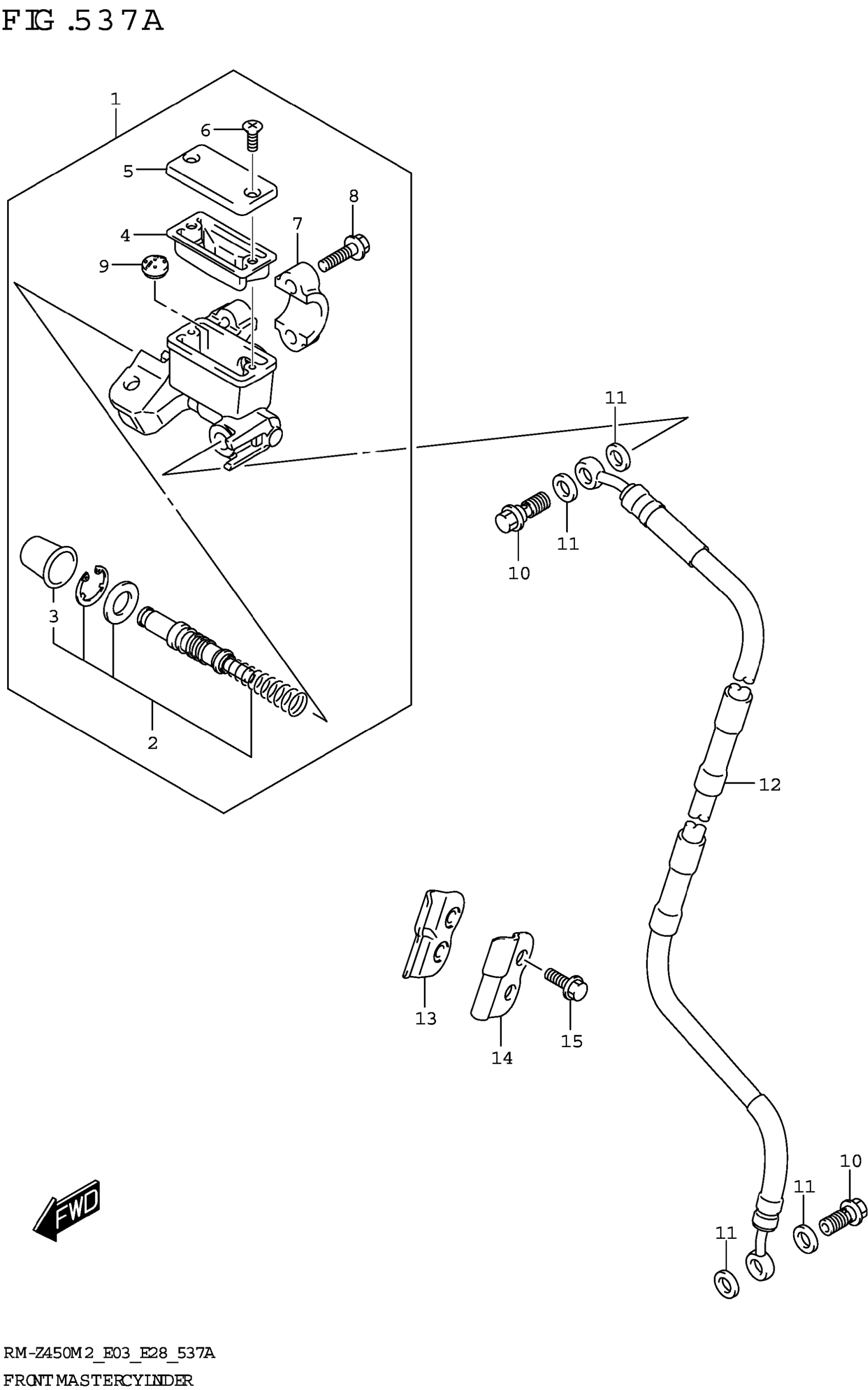

Suzuki RM-Z450M2 (2022) FRONT MASTER CYLINDER Diagram

#

Description
Price

1

CYLINDER ASSY,FR MASTER

59600-37F10

$252.18

2

.PISTON & CUP SET

59600-37810

$66.23

3

..BOOT

59666-44300

$5.30

4

.DIAPHRAGM

59667-14500

$9.53

5

.CAP

69669-44E00

$26.03

6

.SCREW

69689-49300

$1.81

7

.HOLDER

59671-27C00

$19.22

8

.BOLT (6X22)

59675-06F10

$5.27

9

.SEPARATOR

59748-36E00

$10.58

10

UNION (10X1.25X22)

09360-10065

$9.70

11

WASHER (10X15X1.5)

09161-10009

$1.83

12

HOSE,FRONT BRAKE

59480-28H12

$232.97

13

CLAMP,FR BRAKE HOSE INNER

59260-28H20

$17.75

14

CLAMP,FR BRAKE HOSE

59271-28H10

$8.01

15

BOLT

01547-0616A

$2.01
