2022 Suzuki RM-Z450M2 Air Cleaner Diagram

← All diagrams

Find the part on the Air Cleaner diagram for your 2022 Suzuki RM-Z450M2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

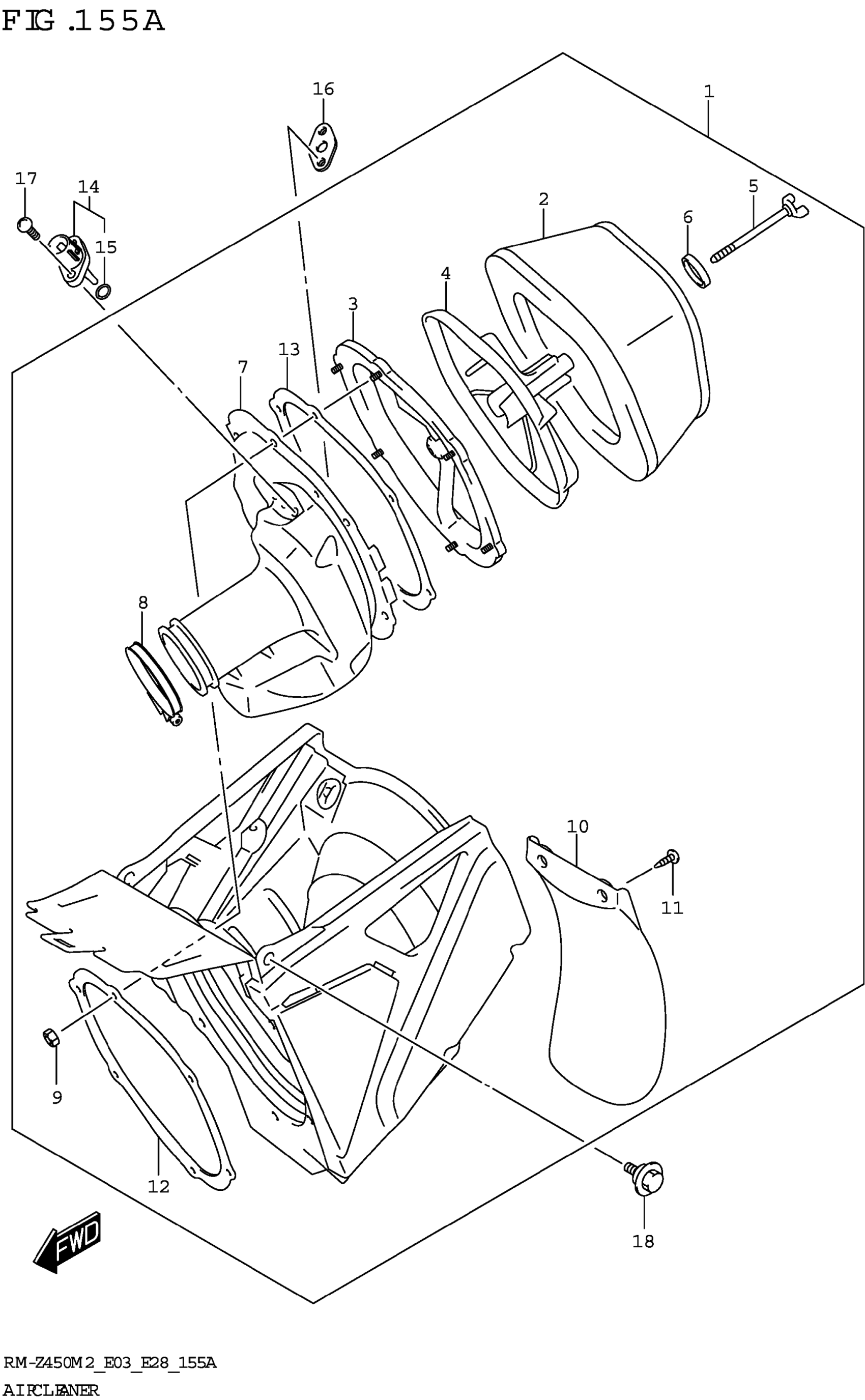

2022 Suzuki RM-Z450M2 Air Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CLEANER ASSY,AIR

13700-37K03

1

$469.83

In stock

2

.FILTER ASSY

13780-37K00

1

$69.60

In stock

3

.BASE,FILTER

13790-37K00

1

$29.97

In stock

4

.HOLDER,FILTER

13791-37K00

1

$21.95

In stock

5

.BOLT,WING

13831-37F20

1

$8.04

In stock

6

.WASHER

13792-13A01

1

$4.33

In stock

7

.TUBE,OUTLET

13881-37K01

1

$110.43

In stock

8

1

$8.67

In stock

9

.NUT

08319-2105B

6
Out of stock

10

.MUD GUARD

13738-36E10

1

$29.62

In stock

11

.SCREW

13831-35F00

2

$2.64

In stock

12

.PLATE,AIR CLEANER

13795-37K00

1

$19.70

In stock

13

.GASKET,BASE FILTER

13796-37K00

1

$7.42

In stock

14

SENSOR,AIR TEMP

13650-14G10

1

$51.91

In stock

15

.O-RING

13655-14G10

1

$11.18

In stock

16

1

$14.00

In stock

17

.SCREW

02112-0516A

2
Out of stock

18

BOLT (6X16)

09111-06251

2
Out of stock
