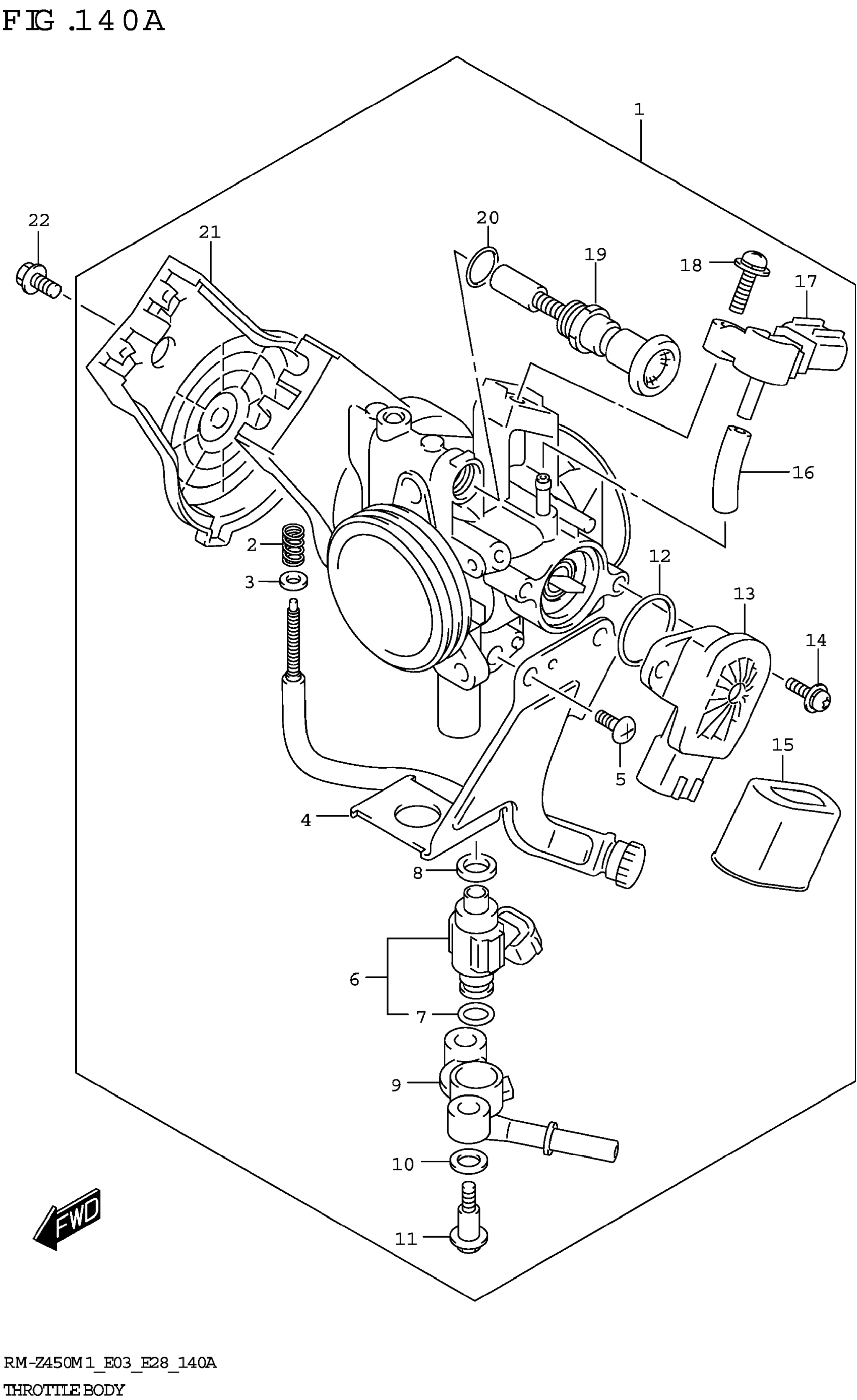

Suzuki RM-Z450M1 (2021) THROTTLE BODY Diagram

#

Description
Price

1

BODY ASSY,THROTTLE This part replaces 13041-37K00.

13041-37K01

$555.05

2

.SPRING

13271-96110

Unavailable

3

.WASHER

13615-43010

$3.25

4

.ADJUSTER SCREW ASSY

13270-37K00

$49.02

5

.SCREW

13602-02F00

Unavailable

6

.INJECTOR ASSY

15710-37K00

$245.97

7

.O-RING

15717-58B00

$9.95

8

SEAL

15722-14J00

$11.36

9

.DELIVERY PIPE

15731-37K00

$195.67

10

PACKING

13602-29G01

$2.43

11

SCREW

13601-11J00

$4.79

12

.O-RING

13575-31G00

$11.50

13

.SENSOR ASSY

13580-37K00

$208.05

14

.SCREW

13605-37K00

$2.57

15

.COVER

13589-37K00

$52.85

16

HOSE (L:425) This part replaces 13683-10F60.

13683-10F61

$17.10

17

SENSOR,BOOST

18590-18K00

$315.08

18

SCREW

13437-14J00

Unavailable

19

.PLUNGER ASSY

13411-37K00

$35.25

20

.O RING (16)

13278-47091

$1.90

21

.COVER,THROTTLE

13484-37K00

Unavailable

22

SCREW,THROTTLE COVER

13601-37K00

$2.90
