Description

Price

1

CYLINDER ASSY,REAR MASTER

69600-37K00

$131.88

2

.PISTON/CUP SET This part replaces 69600-35811.

69600-35812

$39.88

3

.BOOT

69691-04A00

$5.83

4

.YOKE

69692-37K00

$14.45

5

.ROD,PUSH

69670-37K00

$23.92

6

.NUT

51212-77500

$7.95

7

.CAP

69669-28H00

$17.30

8

.DIAPHRAGM

69667-37F20

$18.25

9

.SCREW

69689-37F30

$4.83

10

.SEPARATOR

59748-36E00

$10.58

11

.RING

69744-36E00

$4.53

12

SCREW (6X16)

09139-06139

$2.92

13

HOSE,REAR BRAKE

69480-37K01

$69.68

14

UNION (10X1.25X22)

09360-10065

$9.70

15

WASHER (10X15X1.5)

09161-10009

$1.83

16

GUIDE,RR BRAKE HOSE

61196-37K00

$4.12

17

SCREW This part replaces 02142-0510A.

02142-0510B

$1.77

18

CLAMP,REAR BRAKE HOSE

69268-37K00

$5.20

19

BOLT

01550-0510A

$2.65

20

PIN (8X20)

09200-08048

$2.80

21

WASHER (8.5X14X1.6)

09160-08090

$2.38

22

PIN

04111-2015A

$1.22

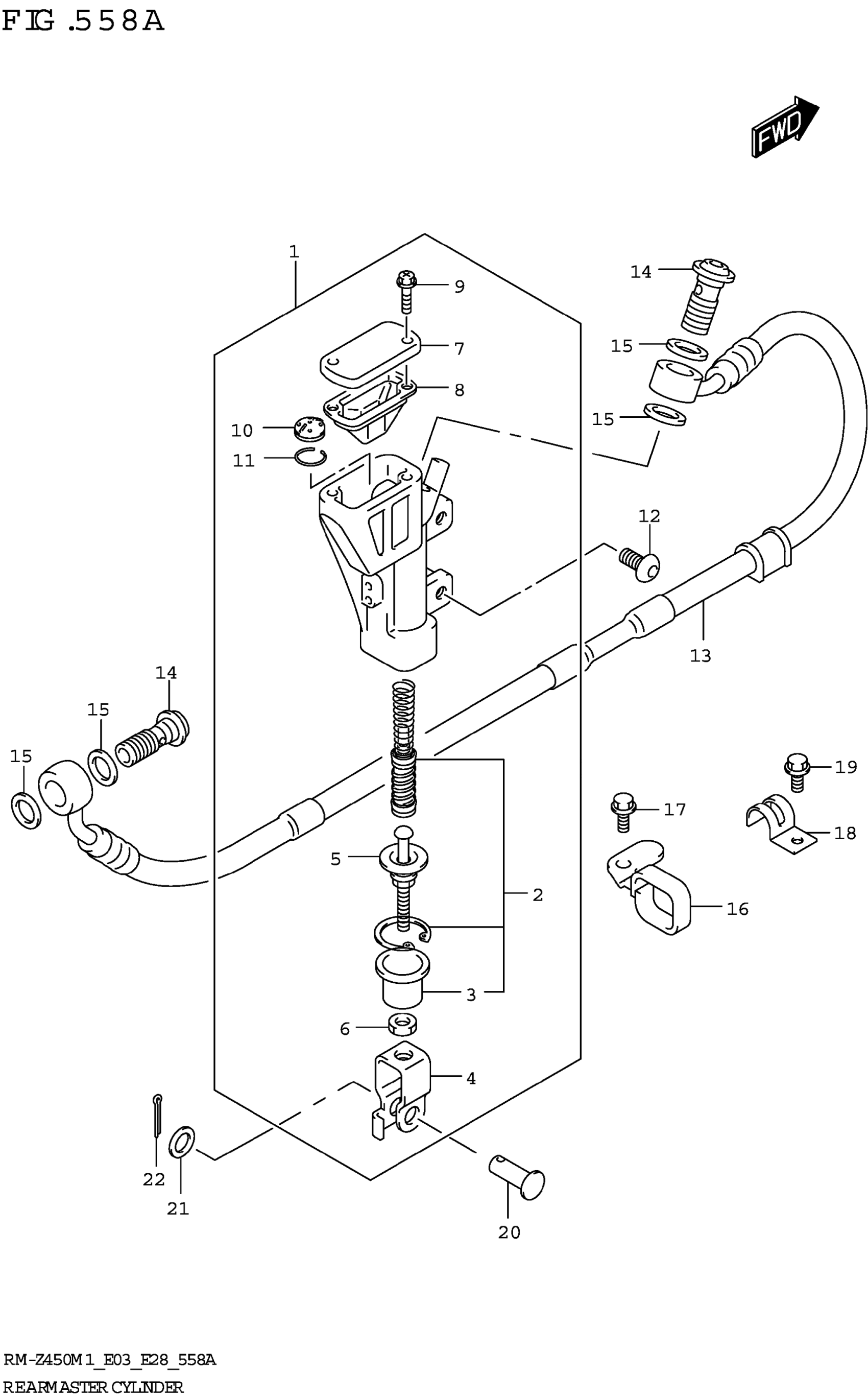

Suzuki RM-Z450M1 (2021) REAR MASTER CYLINDER Diagram
