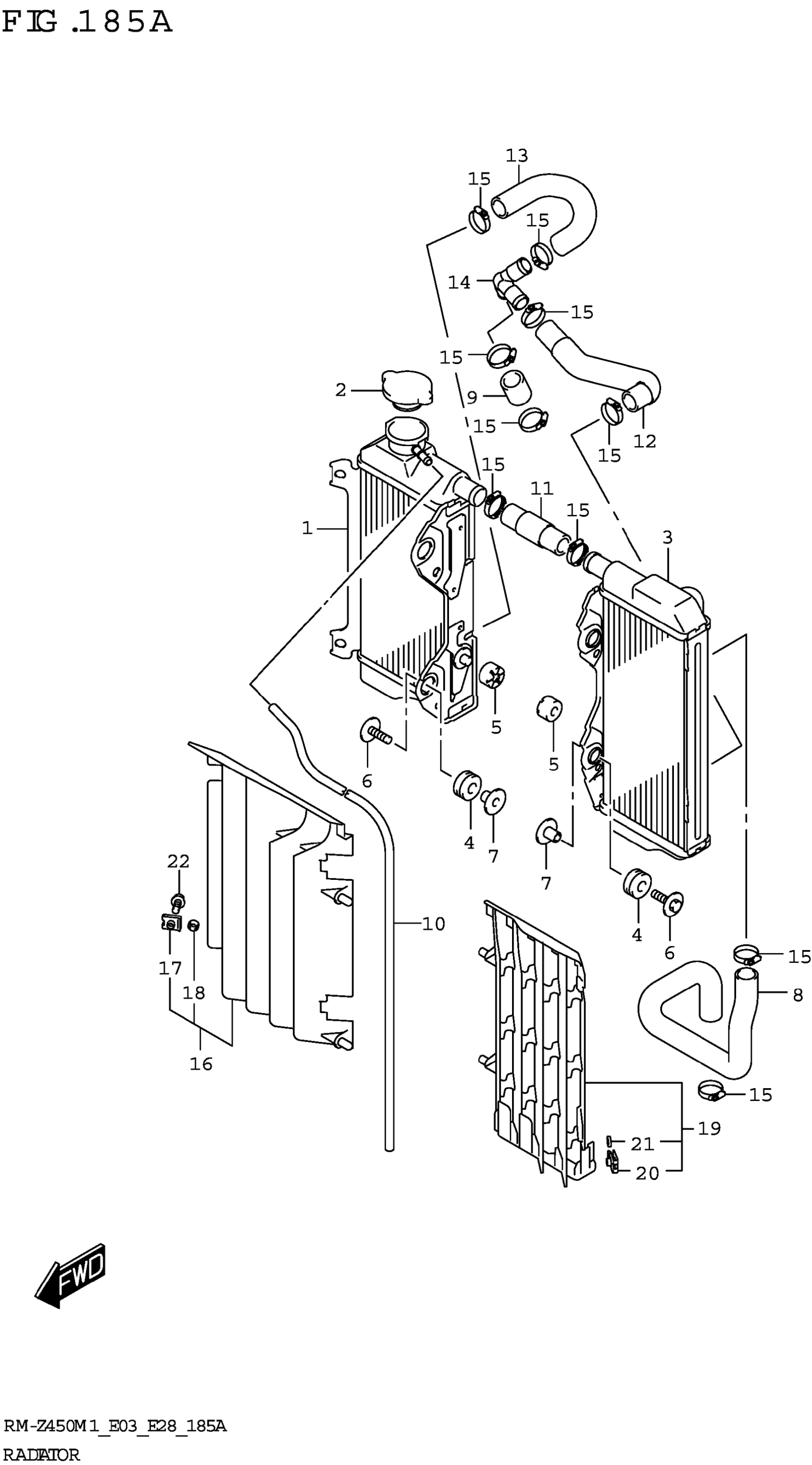

Suzuki RM-Z450M1 (2021) RADIATOR Diagram

#

Description
Price

1

RADIATOR,WATER,R

17710-37K01

$401.75

2

CAP,RADIATOR (1.1)

17730-14G00

$42.83

3

RADIATOR,WATER,L

17720-37K01

$457.45

4

CUSHION,RADIATOR SUPPORT

17787-19A10

$4.98

5

CUSHION,RDTR

17787-37K00

$6.98

6

BOLT (6X25)

09116-06186

$2.61

7

SPACER (6.5X10.5X14.1)

09180-06243

$5.46

8

HOSE,RADIATOR INLET

17851-37K01

$28.12

9

HOSE,RADIATOR OUTLET

17852-37K00

$8.65

10

HOSE (5X8X2000) This part replaces 09351-50801-00A.

09351-50803-00B

$9.10

11

HOSE,RADIATOR JOINT UPPER

17853-37K00

$14.93

12

HOSE,RADIATOR JOINT LOWER NO.

17854-37K00

$30.92

13

HOSE,RADIATOR JOINT LOWER NO.

17855-37K00

$17.80

14

JOINT,RDTR OUTLET HOSE

17857-37K00

$65.77

15

CLAMP

09402-28513

$6.88

16

LOUVER,RADIATOR,R

17801-37K00

$35.18

17

.NUT

09148-06017

$3.20

18

.SPACER (6.2X10X2.2)

09180-06129

$2.12

19

LOUVER,RADIATOR,L

17802-37K00

$39.43

20

.NUT

09148-06017

$3.20

21

.SPACER (6.2X10X2.2)

09180-06129

$2.12

22

BOLT

01547-0610A

$2.45
