2021 Suzuki RM-Z450M1 Front Fork Damper Diagram

← All diagrams

Find the part on the Front Fork Damper diagram for your 2021 Suzuki RM-Z450M1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

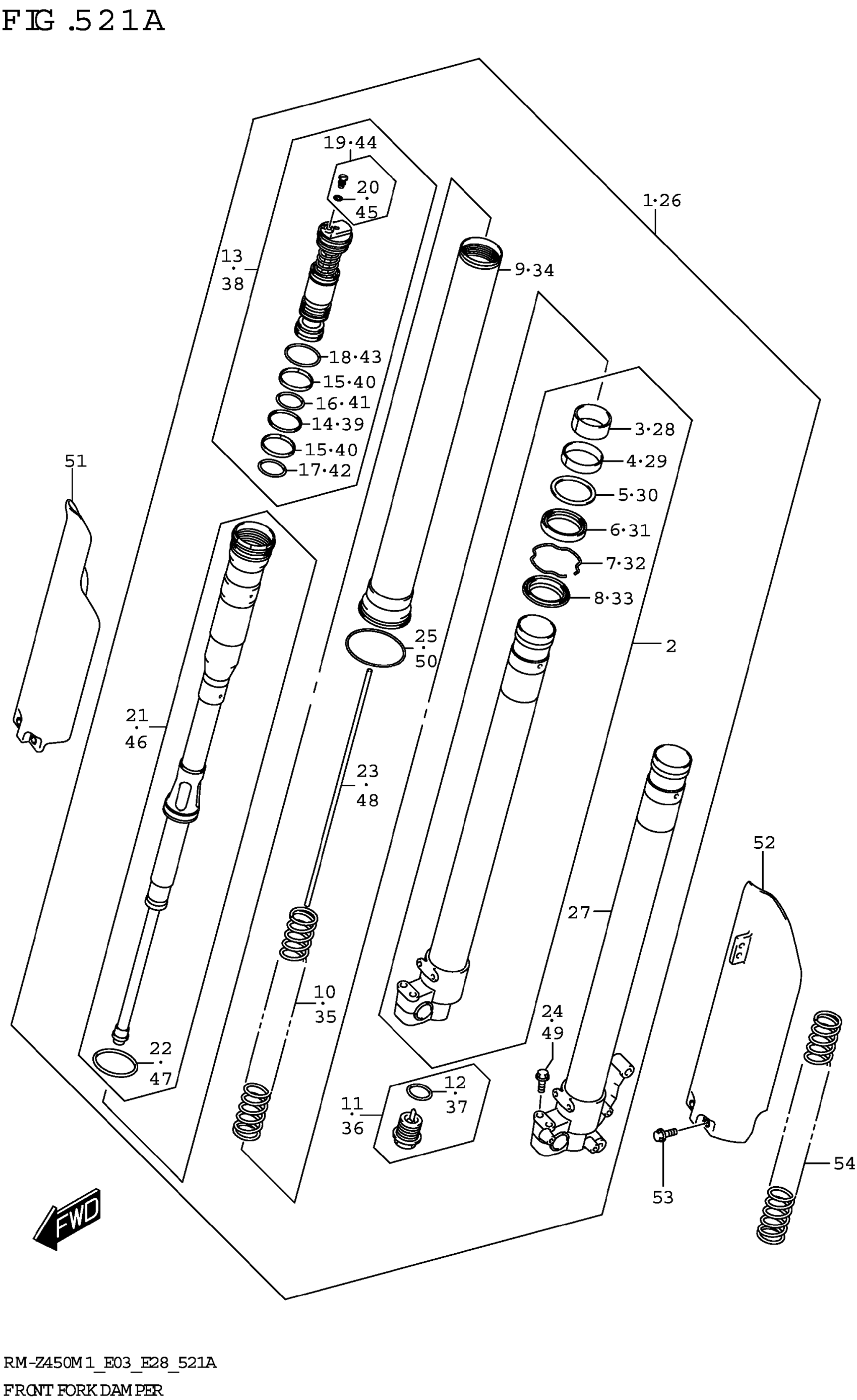

2021 Suzuki RM-Z450M1 Front Fork Damper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

1

$1,497.45

In stock

2

.TUBE,INNER,R

51110-37K00

1

$381.95

In stock

3

..BUSH,SLIDE

51127-28H40

1

$32.15

In stock

4

..BUSH,GUIDE

51167-28H40

1

$31.45

In stock

5

..SPACER,SEAL

51158-36E00

1
Out of stock

6

..SEAL,OIL

51153-36E00

1
Out of stock

7

..RING,STOPPER

51156-36E00

1
Out of stock

8

..SEAL,DUST

51173-37K00

1

$32.33

In stock

9

.TUBE,OUTER

51140-37K00

1

$614.45

In stock

10

1

$145.17

In stock

11

.BOLT,CENTER

51170-37K00

1

$117.65

In stock

12

..O-RING

51122-28H40

1

$4.40

In stock

13

.BOLT,FORK

51350-37K00

1

$546.87

In stock

14

..PISTON-RING

51124-28H40

1

$5.70

In stock

15

..BUSH C,SLIDE

51123-28H40

2

$15.35

In stock

16

..O-RING

51174-28H40

1

$5.32

In stock

17

..O-RING

51175-28H40

1

$5.65

In stock

18

..O-RING

51187-47H00

1
Out of stock

19

..BOLT,PLUG

51357-36F20

1
Out of stock

20

...O-RING

51358-28E30

1
Out of stock

21

.DAMPER

51190-37K00

1

$903.33

In stock

22

..O-RING

51118-28H30

1

$5.48

In stock

23

.ROD,PUSH

51191-37K00

1

$15.35

In stock

24

BOLT

51328-37F80

2

$7.23

In stock

25

.RING,STOPPER

51211-28H40

1

$15.90

In stock

26

1

$1,497.45

In stock

27

.TUBE,INNER,L

51120-37K00

1

$374.87

In stock

28

..BUSH,SLIDE

51127-28H40

1

$32.15

In stock

29

..BUSH,GUIDE

51167-28H40

1

$31.45

In stock

30

..SPACER,SEAL

51158-36E00

1
Out of stock

31

..SEAL,OIL

51153-36E00

1
Out of stock

32

..RING,STOPPER

51156-36E00

1
Out of stock

33

..SEAL,DUST

51173-37K00

1

$32.33

In stock

34

.TUBE,OUTER

51140-37K00

1

$614.45

In stock

35

1

$145.17

In stock

36

.BOLT,CENTER

51170-37K00

1

$117.65

In stock

37

..O-RING

51122-28H40

1

$4.40

In stock

38

.BOLT,FORK

51350-37K00

1

$546.87

In stock

39

..PISTON-RING

51124-28H40

1

$5.70

In stock

40

..BUSH C,SLIDE

51123-28H40

2

$15.35

In stock

41

..O-RING

51174-28H40

1

$5.32

In stock

42

..O-RING

51175-28H40

1

$5.65

In stock

43

..O-RING

51187-47H00

1
Out of stock

44

..BOLT,PLUG

51357-36F20

1
Out of stock

45

...O-RING

51358-28E30

1
Out of stock

46

.DAMPER

51190-37K00

1

$903.33

In stock

47

..O-RING

51118-28H30

1

$5.48

In stock

48

.ROD,PUSH

51191-37K00

1

$15.35

In stock

49

BOLT

51328-37F80

2

$7.23

In stock

50

.RING,STOPPER

51211-28H40

1

$15.90

In stock

51

1

$65.53

In stock

52

1

$116.52

In stock

53

BOLT (6X10)

09111-06098

6

$3.30

In stock

54-1

2

$145.17

In stock

54-2

2

$145.17

In stock
