Description

Price

1

WHEEL ASSY,REAR This part replaces 64100-37K00.

64100-37K01

$822.17

2

.HUB,REAR

64111-35G30

$273.98

3

.SPACER,RR HUB BEARING

64731-35G01

$39.55

4

.BEARING (25X42X9) This part replaces 09262-25139.

09262-25192

$46.28

5

.SEAL,OIL (32X43X7) This part replaces 09283-32045.

09283-32049

$12.32

6

.CIRCLIP

08331-41429

$2.41

7

.RIM,RR WHEEL (19X2.15)

65311-37K00

$377.18

8

.SPOKE,RR WHEEL INNER

65321-35G10

$4.79

9

.SPOKE,RR WHEEL OUTER

65322-35G10

$4.97

10

.NIPPLE,RR WHEEL

65325-35G10

$4.79

11

DISC,RR BRAKE

69211-28H10

$211.15

12

SCREW (8X15)

09139-08022

$4.45

13

AXLE,RR

64711-35G10

$99.88

14

SPACER,RR AXLE

64751-28H10

$32.62

15

WASHER (22X35X2)

09160-22081

$3.04

16

NUT

64721-13K00

$12.61

17-1

SPROCKET,RR (NT:50)

64511-36E00

$126.60

17-2

SPROCKET,RR (NT:48) | OPT

64511-37E00

$175.05

17-3

SPROCKET,RR (NT:51) | OPT

64511-40261

$155.22

17-4

SPROCKET,RR (NT:49) | OPT

64511-28E00

$120.85

18

BOLT (8X28)

09120-08017

$2.62

19

NUT

09159-08133

$5.30

20

WASHER (8.5X16X1.2)

09160-08082

$1.61

21

TIRE,RR (110/90-19) | X30R,BRIDGESTONE

65110-37K00

$375.80

22

TUBE ASSY,WHEEL INNER

65200-35G01

$75.40

23

PROTECTOR,WHL INR TUBE

65261-35G01

$7.53

24

STOPPER,BEAD (2.15)

65270-29F00

$54.75

25

WASHER

08322-0108A

$1.92

26

NUT

08310-0008A

$1.84

27

COVER,REAR DISC

69231-37F20

$16.33

28

BOLT (6X12)

09116-06197

$2.71

29

COVER,RR AXLE SPACER

64752-28H00

$7.93

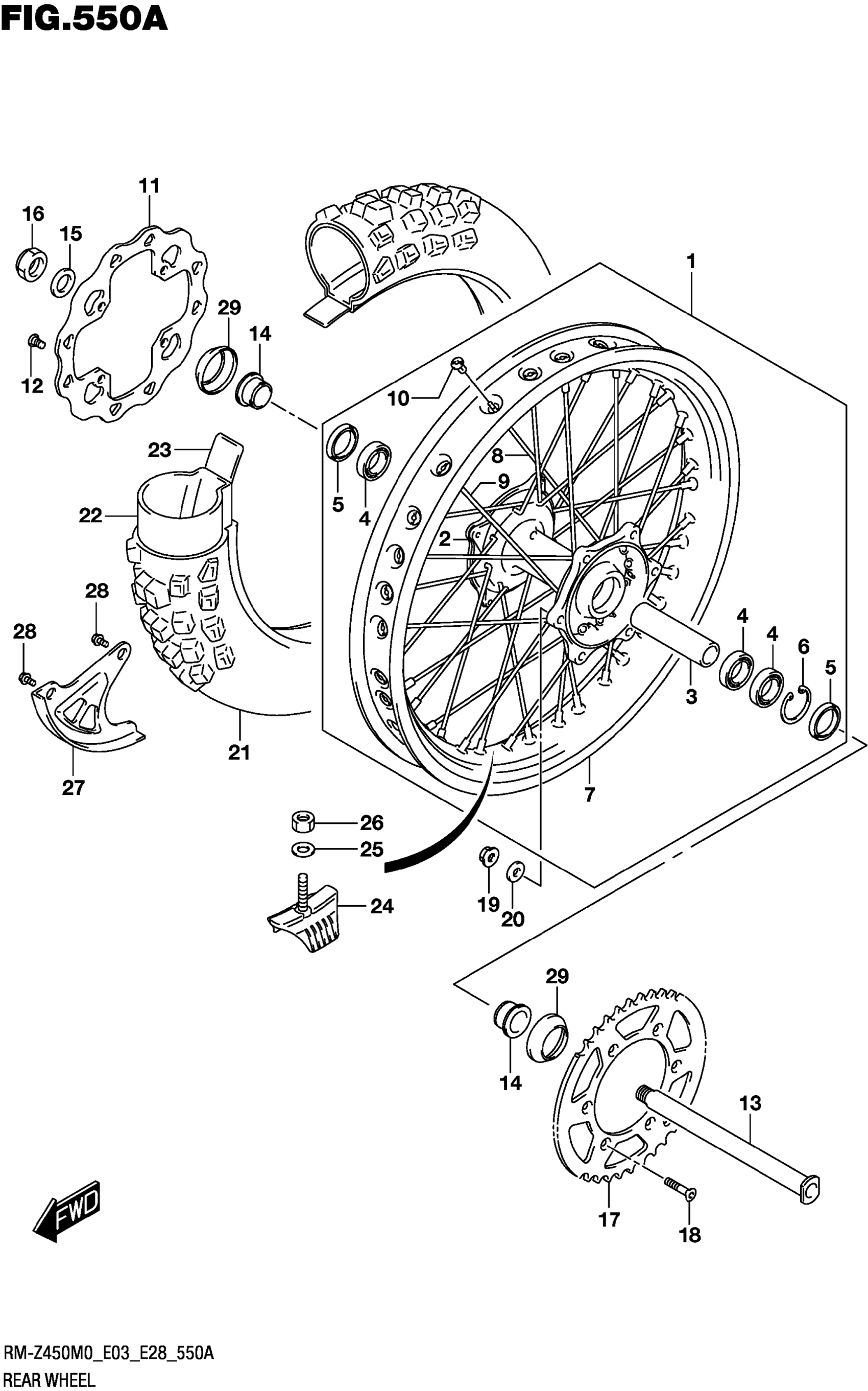

Suzuki RM-Z450M0 (2020) REAR WHEEL Diagram
