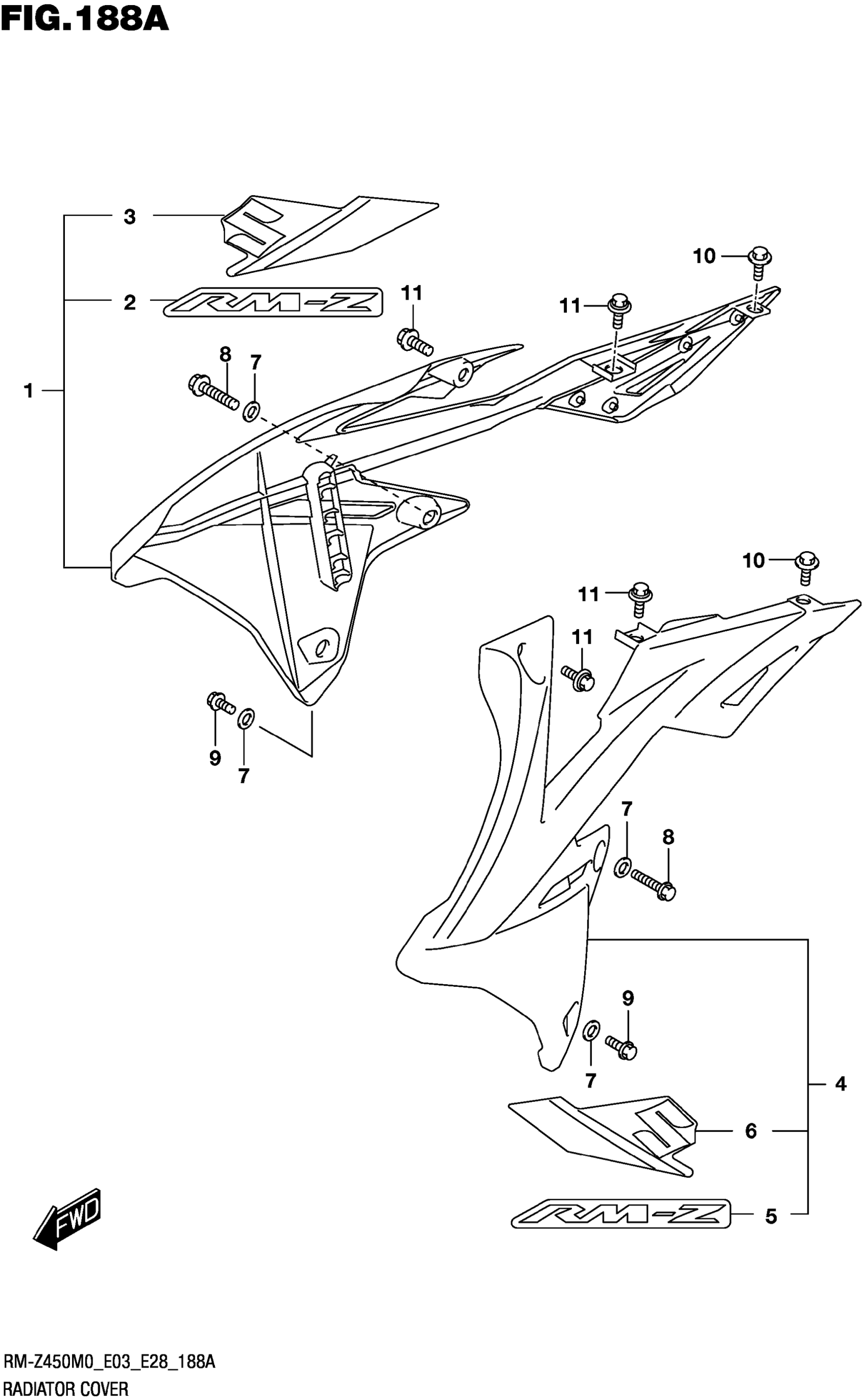

Suzuki RM-Z450M0 (2020) RADIATOR COVER Diagram

#

Description

Price

1

COVER ASSY,RADIATOR RH (YELLO | ,BLACK)

47207-37K00-B1X

$281.70

2

.EMBLEM,"RM-Z" (WHITE,ORANGE, | LACK)

68666-37K00-BLC

$11.73

3

.TAPE,RADIATOR COVER RH

68115-37K00-BZU

$22.02

4

COVER ASSY,RADIATOR LH (YELLO | ,BLACK)

47208-37K00-B1X

$281.70

5

.EMBLEM,"RM-Z" (WHITE,ORANGE, | LACK)

68666-37K00-BLC

$11.73

6

.TAPE,RADIATOR COVER LH

68125-37K00-BZU

$22.02

7

WASHER,RADIATOR COVER

47192-37K00

$7.27

8

BOLT,RADIATOR COVER

47256-37K00

$2.33

9

BOLT,RADIATOR COVER

47255-37K00

$1.60

10

BOLT (6X16)

09111-06251

$2.42

11

BOLT (6X12)

09116-06221

$2.57
