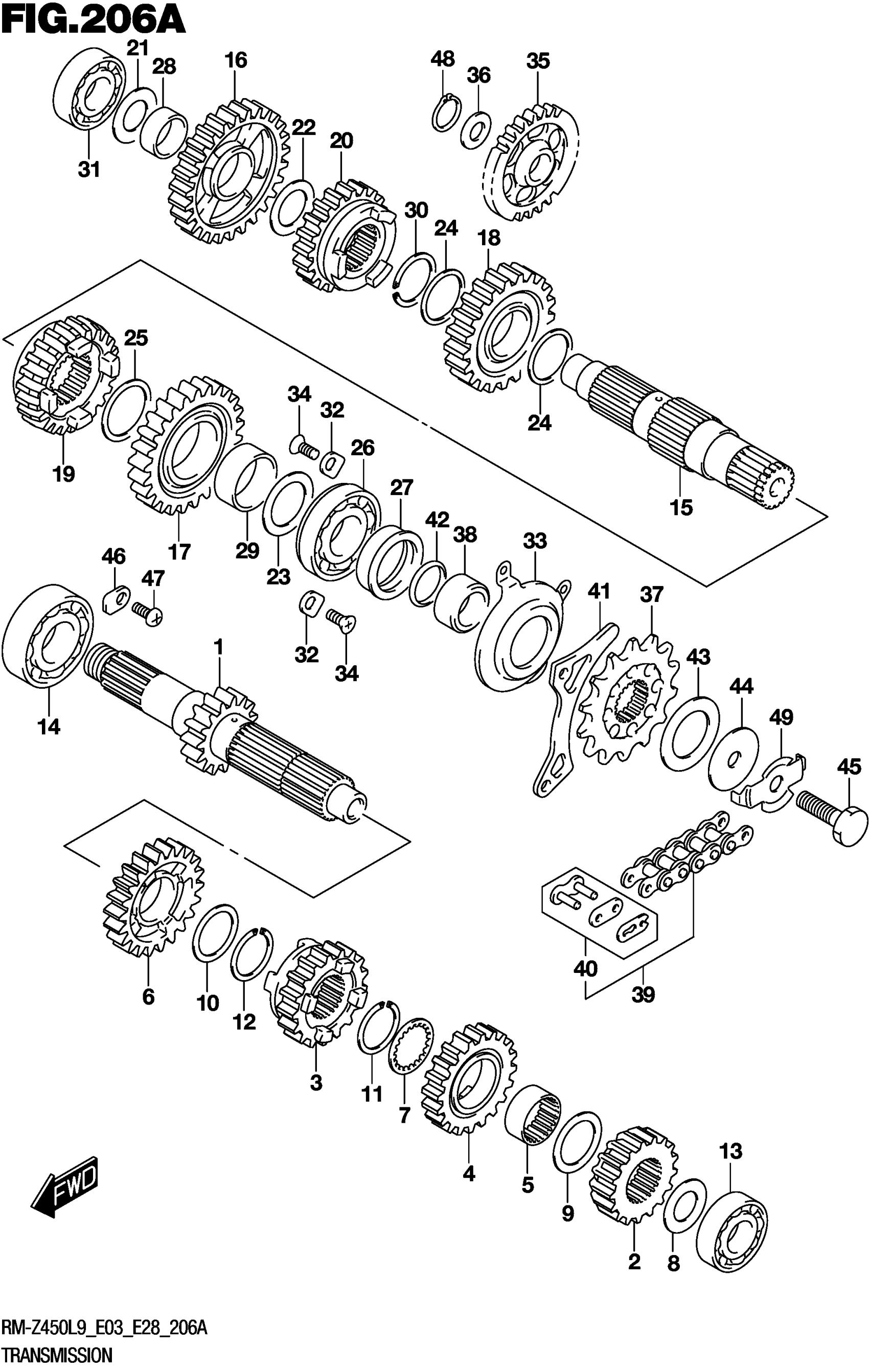

Suzuki RM-Z450L9 (2019) TRANSMISSION Diagram

#

Description
Price

1

SHAFT,COUNTER (NT:15)

24120-28H21

$274.03

2

GEAR,2ND DRIVE (NT:17)

24221-28H20

$124.47

3

GEAR,3RD DRIVE (NT:17)

24231-28H30

$112.67

4

GEAR,4TH DRIVE (NT:20)

24241-28H20

$123.88

5

BUSH,4TH DRIVE GEAR

24242-28H00

$35.55

6

GEAR,5TH DRIVE (NT:22)

24251-28H10

$114.37

7

WASHER (25X31X1.0)

09167-25026

$4.03

8

SHIM (17X30X1)

09181-17223

$2.80

9

WASHER, 5TH DRIVE This part replaces 09181-25059.

09181-25167

$2.85

10

SHIM (25X32X1)

09181-25139

$2.80

11

CIRCLIP

09380-25010

$2.80

12

CIRCLIP

09380-25010

$2.80

13

BEARING This part replaces 08123-62030.

08123-6203A

$27.67

14

BEARING (25X52X15)

08143-62057

$22.02

15

SHAFT,DRIVE

24131-28H20

$234.77

16

GEAR,1ST DRIVEN (NT:27)

24311-28H10

$120.73

17

GEAR,2ND DRIVEN (NT:25)

24321-28H10

$120.73

18

GEAR,3RD DRIVEN (NT:21)

24331-28H30

$120.07

19

GEAR,4TH DRIVEN (NT:21)

24341-28H20

$151.60

20

GEAR,5TH DRIVEN (NT:20)

24351-28H30

$136.62

21

SHIM (17X30X1)

09181-17223

$2.80

22

SHIM (20X30X1)

09181-20195

$2.68

23

SHIM (24X34X1)

09181-24005

$3.21

24

SHIM (25X30X1)

09181-25111

$4.45

25

SHIM (27X33X1)

09181-27015

$5.00

26

BEARING (24X56X14)

09262-24001

$98.02

27

SEAL,OIL (31X40X8.5)

09289-31003

$12.39

28

BUSH (20X24X10)

09300-20037

$19.47

29

BUSH,2ND DRIVEN GEAR

24322-28H00

$24.58

30

CIRCLIP

09380-25010

$2.80

31

BEARING This part replaces 08123-62030.

08123-6203A

$27.67

32

RETAINER

24741-20A00

$2.80

33

RETAINER,DRIVE SHAFT OIL SEAL

24751-28H00

$18.16

34

SCREW (6X12)

09126-06011

$2.01

35

GEAR,KICK STARTER IDLE (NT:27

26260-28H00

$123.60

35

GEAR,KICK STARTER IDLE (NT:27

26260-28H00

$123.60

36

SHIM (17X24X0.5)

09181-17130

$2.80

37

SPROCKET,ENGINE (NT:13)

27511-28H20

$34.93

38

SPACER,ENGINE SPROCKET

27531-35G01

$32.25

39

CHAIN ASSY,DRIVE (DID520DMA2K

27600-28H00-114

$269.31

39

CHAIN ASSY,DRIVE (DID520DMA2K

27600-28H00-114

$269.31

40

.JOINT SET,CHAIN (DID) | OPT

27620-28H00

$22.53

41

PLATE,FRONT CHAIN GUIDE

27641-28H00

$12.40

42

D-RING

27515-28H00

$6.67

43

WASHER,ENGINE SPROCKET WAVE

27514-49H00

$7.57

44

WASHER,ENGINE SPROCKET

27513-49H00

$17.15

45

BOLT,ENGINE SPROCKET

27517-28H00

$7.11

46

RETAINER

24741-21A00

$2.80

47

SCREW (6X12)

09125-06122

$2.54

48

CIRCLIP

08331-31179

$1.88

49

WASHER,ENG SPROCKET BOLT LOCK

27516-28H00

$14.18
