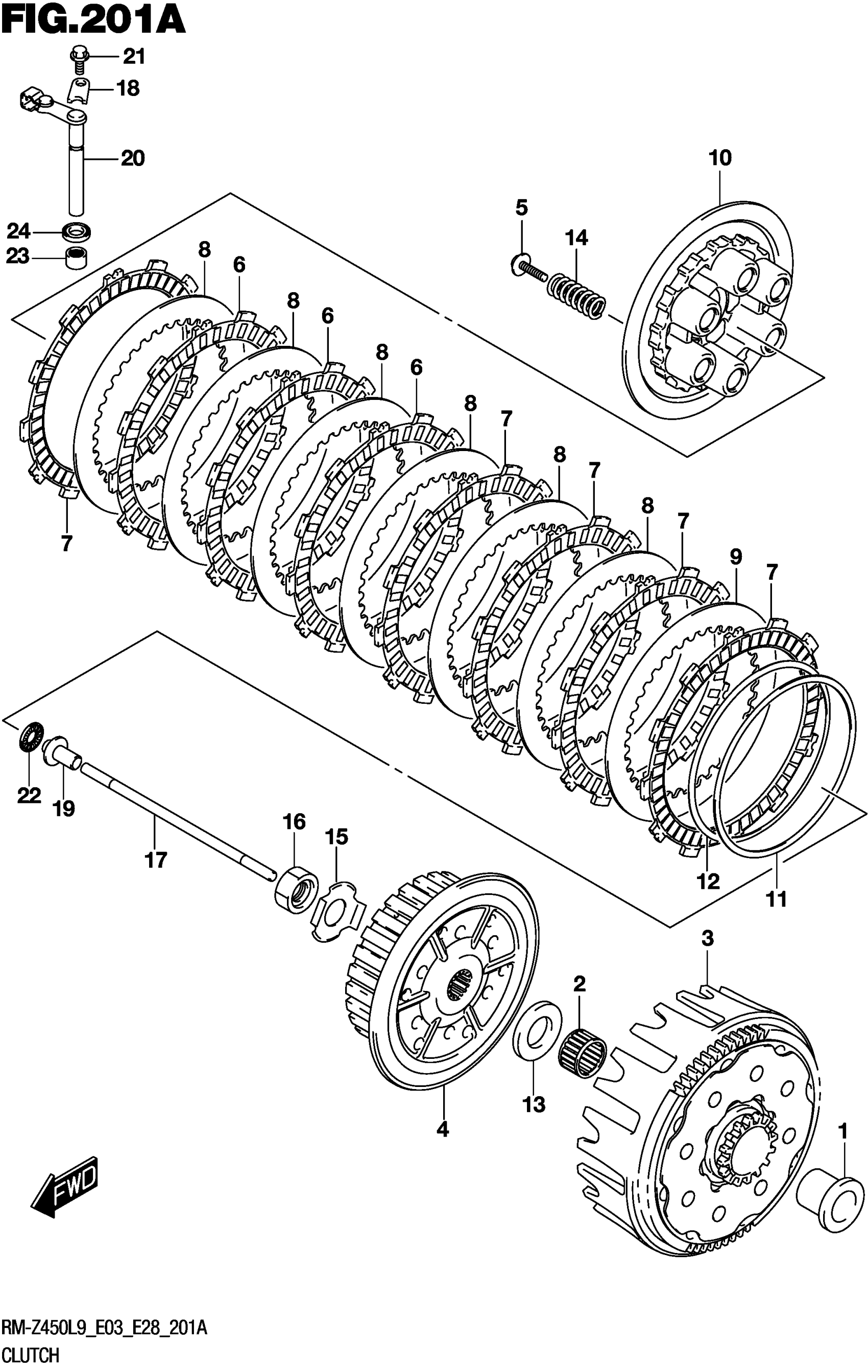

Suzuki RM-Z450L9 (2019) CLUTCH Diagram

#

Description
Price

1

SPACER,PRI DRIVEN GEAR

21251-28H00

$58.95

2

BEARING (28X32X26)

09263-28042

$32.12

3

GEAR ASSY,PRIMARY DRIVEN (NT:

21200-28H10

$404.92

3

GEAR ASSY,PRIMARY DRIVEN (NT:

21200-28H10

$404.92

4

HUB,CLUTCH SLEEVE

21411-35G30

$128.37

5

BOLT,CLUTCH SPRING (6X25)

21412-35G00

$2.88

6

PLATE,CLUTCH DRIVE NO.1 (T:2.

21441-35G00

$21.23

6

PLATE,CLUTCH DRIVE NO.1 (T:2.

21441-35G00

$21.23

7

PLATE,CLUTCH DRIVE NO.2 (T:2.

21441-37F30

$12.74

7

PLATE,CLUTCH DRIVE NO.2 (T:2.

21441-37F30

$12.74

8

PLATE,CLUTCH DRIVEN (T:1.6)

21451-35G00

$9.31

9

PLATE,CLUTCH DRIVEN (T:1.6)

21452-35G00

$14.00

10

DISC,CLUTCH PRESSURE

21462-28H00

$69.80

11

SEAT,WAVE WASHER

21471-28H00

$19.60

12

WASHER,CLUTCH PLATE WAVE

21472-35G00

$24.00

13

WASHER (22.5X39X3)

09160-22082

$15.50

14

SPRING

09440-18044

$7.30

15

WASHER,CLUTCH SLEEVE HUB LOCK

21416-35G10

$4.32

16

NUT

09140-18017

$15.33

17

ROD,CLUTCH PUSH

23110-28H00

$28.15

18

RETAINER,CL RELEASE CAMSHAFT

23117-28H00

$5.18

19

PIECE,CLUTCH PUSH

23121-37F00

$19.03

20

CAMSHAFT,CLUTCH RELEASE

23200-28H10

$91.57

21

BOLT (6X12)

09103-06280

$3.30

22

BEARING (10X22X2.8)

09263-10002

$9.20

23

BEARING (10X14X10)

09263-10014

$12.21

24

SEAL,OIL (10X17X5)

09285-10004

$3.04
