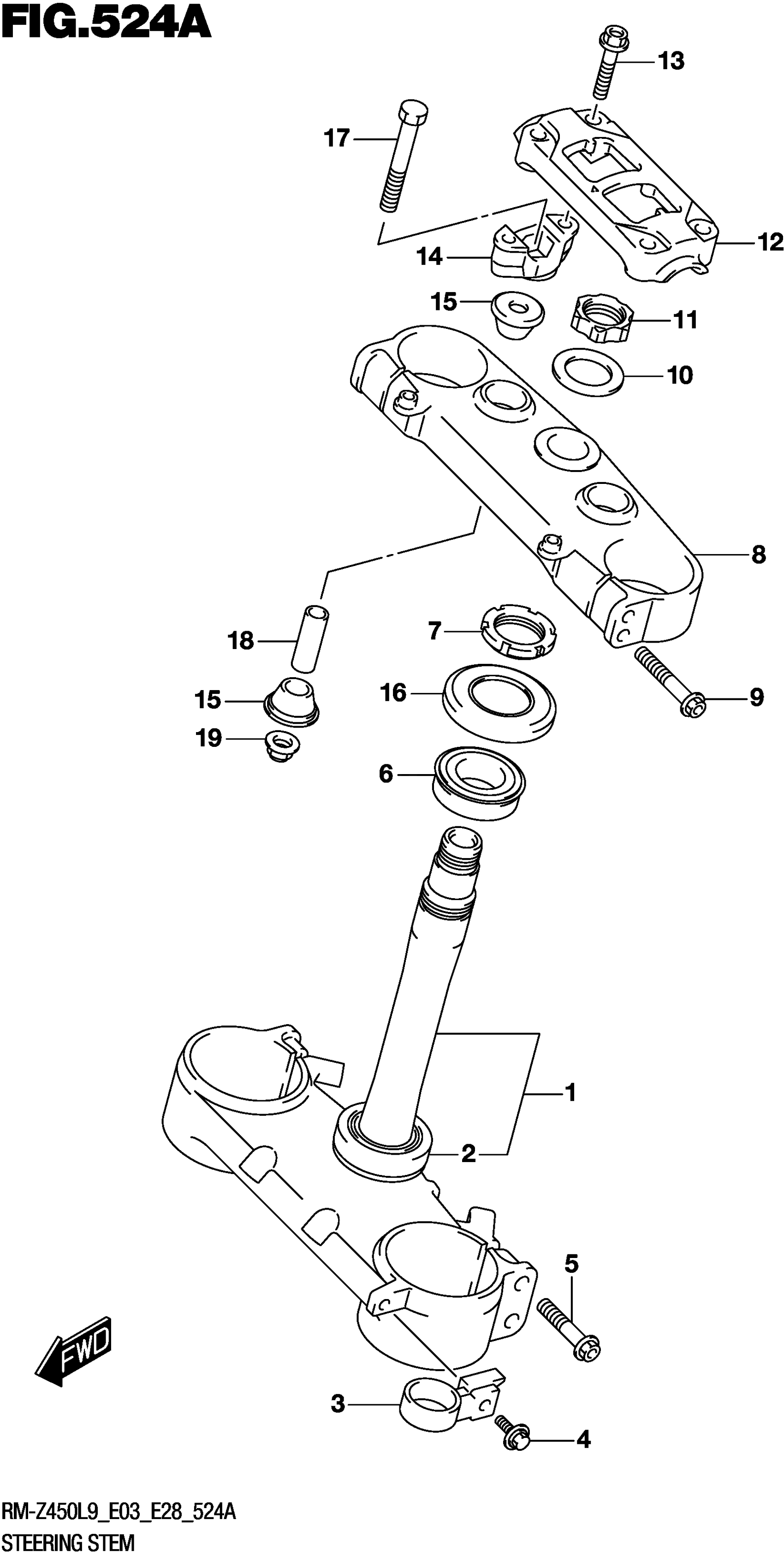

Suzuki RM-Z450L9 (2019) STEERING STEM Diagram

#

Description
Price

1

STEM, STEERING This part replaces 51410-37K00.

51410-37K01

$446.88

2

.BEARING (30X52X16) This part replaces 09265-30014.

09265-30035

$46.72

3

CLIP

58621-49H40

$7.85

4

BOLT (6X16)

09116-06200

$3.16

5

BOLT

51328-37F80

$7.25

6

.BEARING (30X52X16) This part replaces 09265-30014.

09265-30035

$46.72

7

NUT,STEERING This part replaces 51631-37K00.

51631-37K10

$29.43

8

HEAD, STEERING STEM

51311-37K00

$424.28

9

BOLT

51328-37F80

$7.25

10

WASHER,STEM HEAD

51356-29E00

$15.29

11

NUT,STEM HEAD

51353-37F70

$40.35

12

HOLDER,HANDLE

56211-10H10

$85.28

13

BOLT

51321-37F90

$6.19

14

HOLDER,HANDLE,LOWER

56221-28H01

$115.65

15

CUSHION,RUBBER

56241-10H11

$43.88

16

COVER,STEERING UPPER

51643-37K00

$24.18

17

BOLT,HANDLE HOLDER

56321-28H00

$13.07

18

SPACER

56243-10H11

$11.85

19

NUT This part replaces 08319-31108.

08319-31107

$2.73
