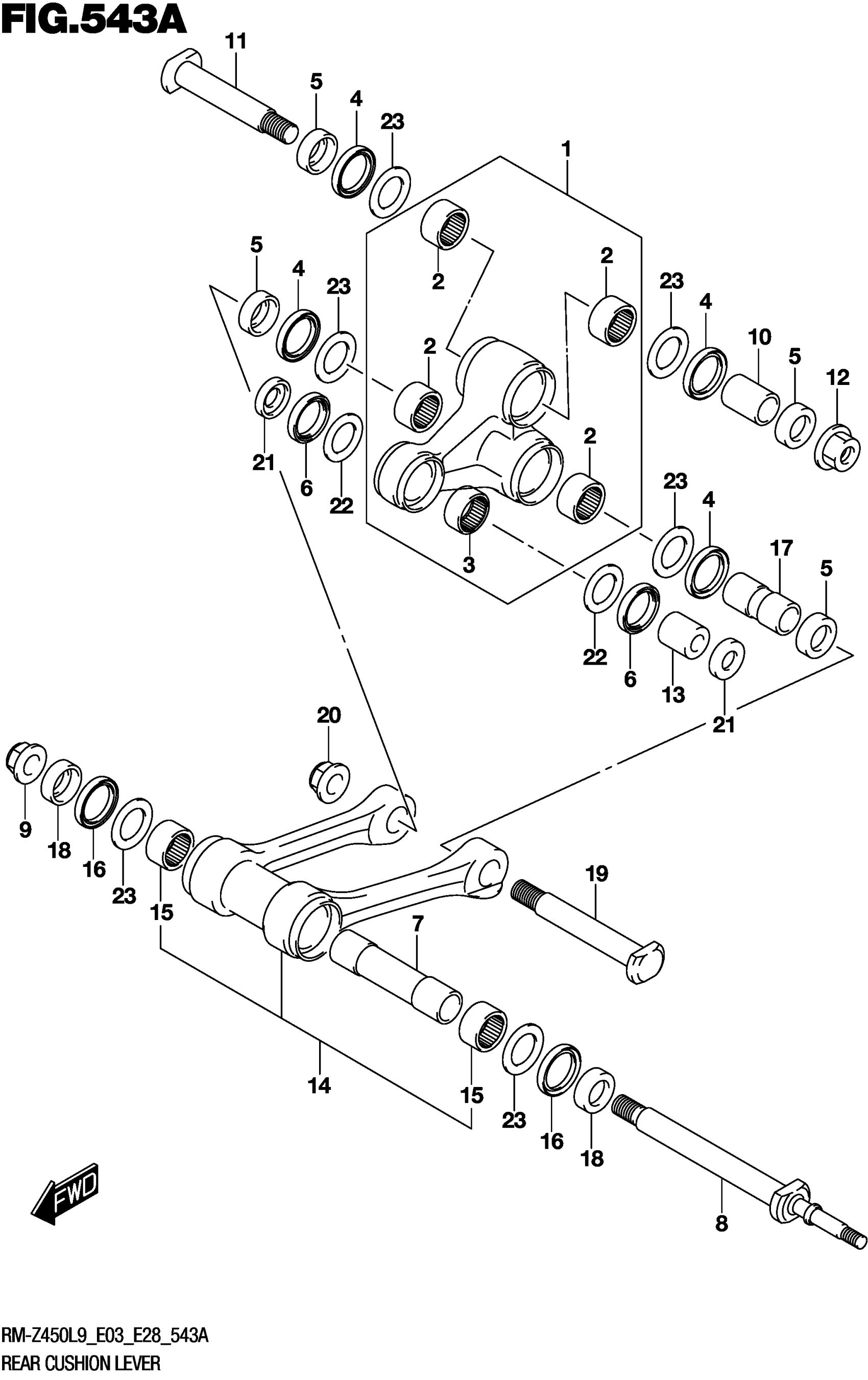

Suzuki RM-Z450L9 (2019) REAR CUSHION LEVER Diagram

#

Description
Price

1

LEVER SET,RR CUSHION

62600-37880

$152.87

2

.BEARING (20X26X14)

09263-20090

$16.23

3

.BEARING (16X22X12)

09263-16033

$20.26

4

SEAL,OIL (24X31X5)

09285-24001

$7.22

5

SPACER,RR CUSHION LEVER SIDE

62647-28H20

$20.98

6

SEAL,OIL (22X28X4)

09284-22003

$10.19

7

SPACER,RR CUSHION ROD

62317-37K00

$17.95

8

BOLT,RR CUSHION ROD

62621-37K00

$38.22

9

NUT

09159-12056

$7.37

10

SPACER,RR CUSHION LEVER UPPER

62648-28H20

$21.78

11

BOLT,RR CUSHION LEVER UPPER

62658-37K00

$18.25

12

NUT

09159-12056

$7.37

13

SPACER,RR CUSHION LEVER FR

62684-28H10

$24.52

14

ROD SET,RR CUSHION

62600-37890

$129.33

15

.BEARING (20X26X14)

09263-20090

$16.23

16

SEAL,OIL (24X31X5)

09285-24001

$7.22

17

SPACER,RR CUSHION LEVER LWR

62646-28H20

$27.77

18

SPACER,RR CUSHION LEVER SIDE

62647-28H20

$20.98

19

BOLT,RR CUSHION LEVER LWR

62657-28H00

$29.90

20

NUT

09159-12056

$7.37

21

SPACER,RR CUSHION LVR FR SIDE

62686-28H10

$24.52

22

SHIM (16X28X0.5)

09181-16214

$2.76

23

WASHER

08211-20301

$2.35
