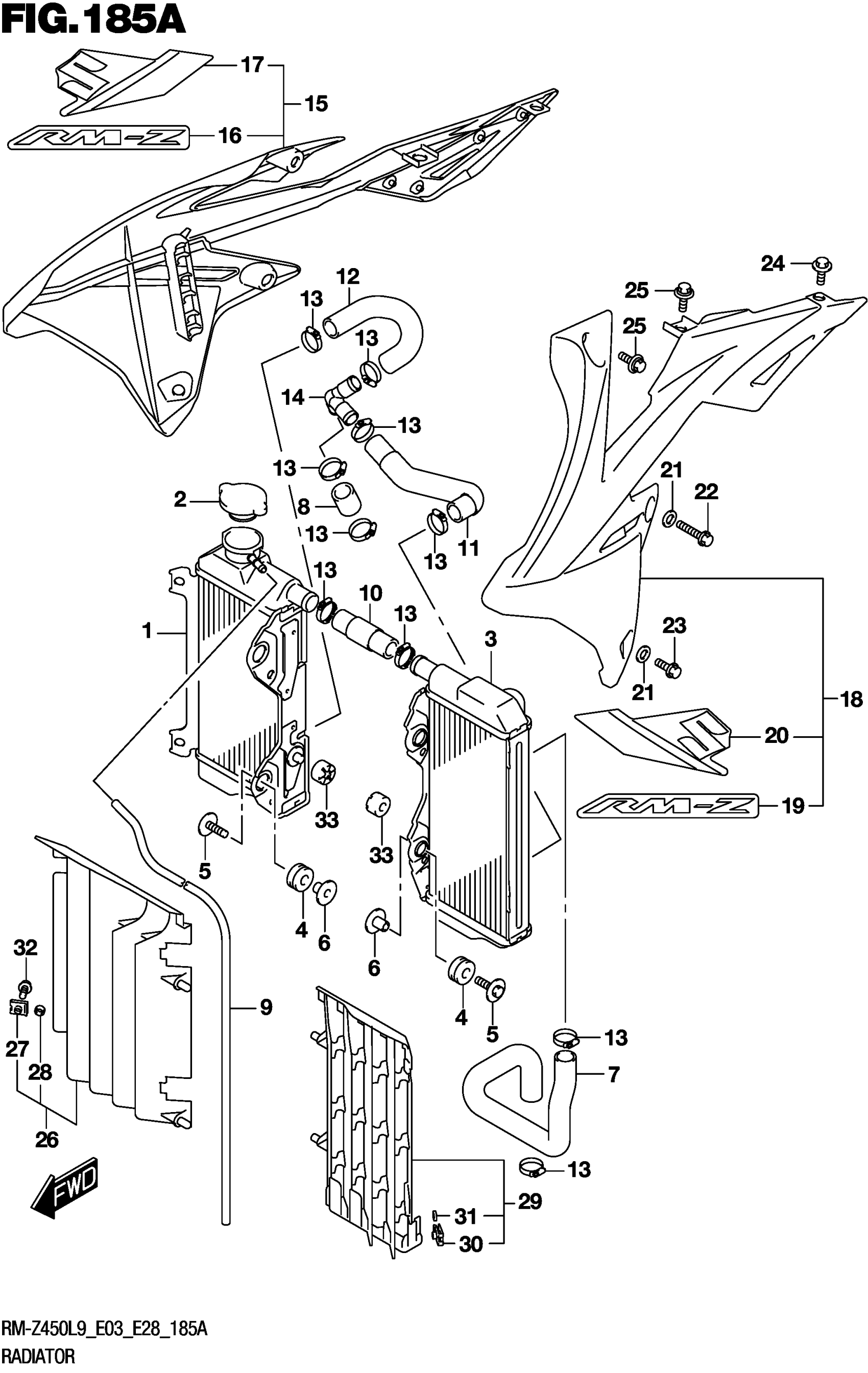

Suzuki RM-Z450L9 (2019) RADIATOR Diagram

#

Description
Price

1

RADIATOR,WATER,R

17710-37K01

$401.75

2

CAP,RADIATOR (1.1)

17730-14G00

$42.83

3

RADIATOR,WATER,L

17720-37K01

$457.45

4

CUSHION,RADIATOR SUPPORT

17787-19A10

$4.98

5

BOLT (6X25)

09116-06186

$2.61

6

SPACER (6.5X10.5X14.1)

09180-06243

$5.46

7

HOSE,RADIATOR INLET

17851-37K01

$28.12

8

HOSE,RADIATOR OUTLET

17852-37K00

$8.65

9

HOSE (5X8X2000) | L:1000->700 This part replaces 09351-50801-00A.

09351-50803-00B

$9.10

10

HOSE,RADIATOR JOINT UPPER

17853-37K00

$14.93

11

HOSE,RADIATOR JOINT LOWER NO.

17854-37K00

$30.92

11

HOSE,RADIATOR JOINT LOWER NO.

17854-37K00

$30.92

12

HOSE,RADIATOR JOINT LOWER NO.

17855-37K00

$17.80

12

HOSE,RADIATOR JOINT LOWER NO.

17855-37K00

$17.80

13

CLAMP

09402-28513

$6.88

14

JOINT,RDTR OUTLET HOSE

17857-37K00

$65.77

15

(YELLOW/BLACK)

47207-37K00-4MX

Unavailable

15

(YELLOW/BLACK)

47207-37K00-4MX

Unavailable

16

.EMBLEM,"RM-Z" (WHITE,ORANGE,

68666-37K00-BLC

$11.73

16

.EMBLEM,"RM-Z" (WHITE,ORANGE,

68666-37K00-BLC

$11.73

17

.TAPE, RADIATOR COVER RH

68115-37K00-BSY

$21.82

18

COVER ASSY, RADIATOR LH

47208-37K00-4MX

$273.42

18

COVER ASSY, RADIATOR LH

47208-37K00-4MX

$273.42

19

.EMBLEM,"RM-Z" (WHITE,ORANGE,

68666-37K00-BLC

$11.73

19

.EMBLEM,"RM-Z" (WHITE,ORANGE,

68666-37K00-BLC

$11.73

20

.TAPE, RADIATOR COVER LH

68125-37K00-BSY

$21.82

21

WASHER,RADIATOR COVER

47192-37K00

$7.27

22

BOLT,RADIATOR COVER

47256-37K00

$2.33

23

BOLT,RADIATOR COVER

47255-37K00

$1.60

24

BOLT (6X16)

09111-06251

$2.42

25

BOLT (6X12)

09116-06221

$2.57

26

LOUVER,RADIATOR,R

17801-37K00

$35.18

27

.NUT

09148-06017

$3.20

28

.SPACER (6.2X10X2.2)

09180-06129

$2.12

29

LOUVER,RADIATOR,L

17802-37K00

$39.43

30

.NUT

09148-06017

$3.20

31

.SPACER (6.2X10X2.2)

09180-06129

$2.12

32

BOLT

01547-0610A

$2.45

33

CUSHION,RDTR

17787-37K00

$6.98
