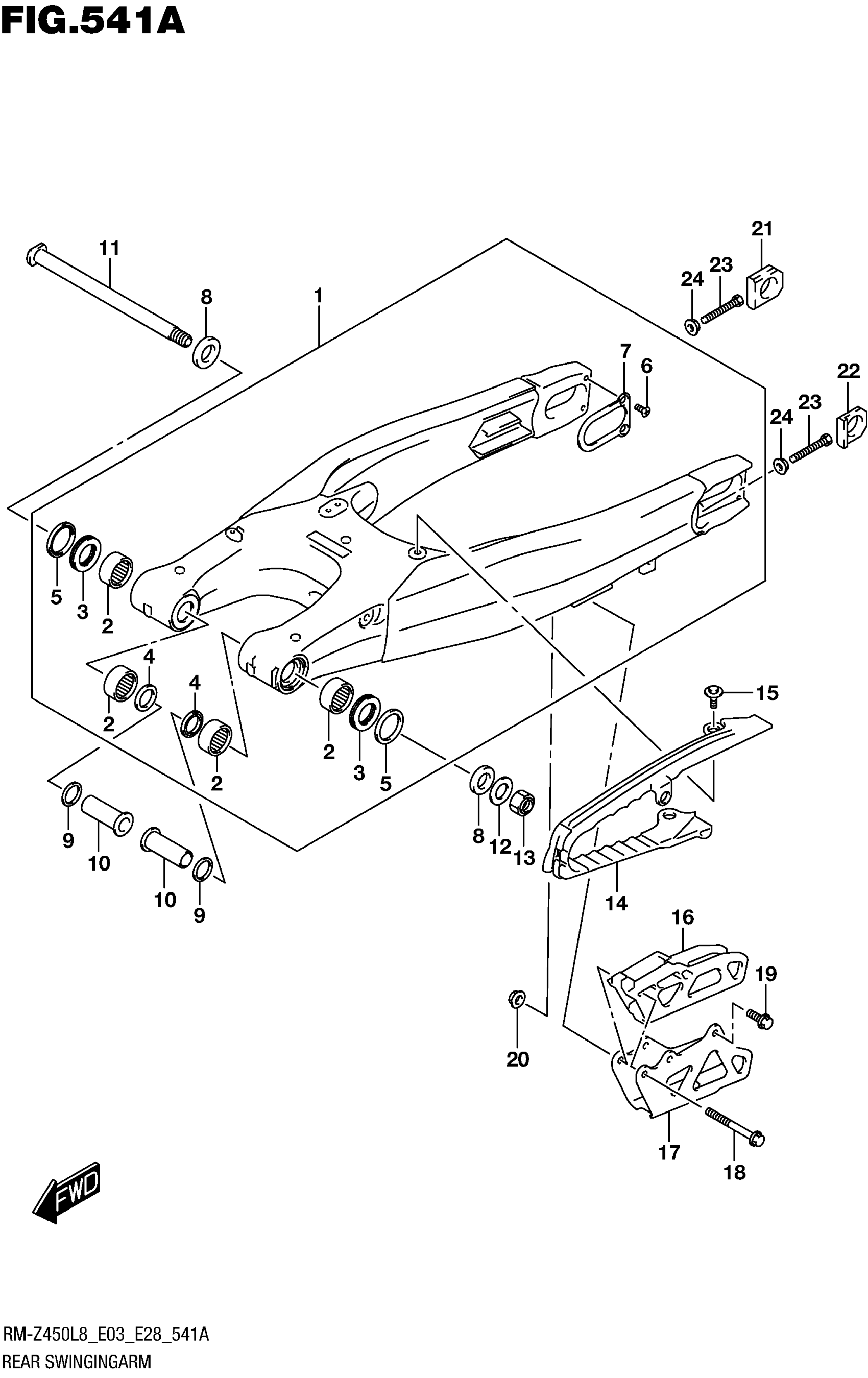

Suzuki RM-Z450L8 (2018) REAR SWINGINGARM Diagram

#

Description
Price

1

SWGARM ASSY,REAR This part replaces 61000-37K00.

61000-37K01

$1,141.80

2

.BEARING (22X29X15)

09263-22070

$29.17

3

.BEARING (22X35X2)

09263-22064

$27.72

4

.SEAL,OIL (21X29X4) This part replaces 09285-22001.

09285-22006

$3.83

5

.SEAL, PIVOT OUTER

61262-36E00

$6.93

6

.SCREW

09120-05005

$1.77

7

.PLATE, SWGARM REAR

61128-28H30

$17.72

8

SPACER, PIVOT OUTER

61251-36E01

$13.16

9

WASHER

08211-22365

$5.97

10

SPACER, PIVOT INNER

61252-37F01

$44.15

11

SHAFT, REAR SWINGINGARM PIVOT

61211-35G00

$84.50

12

WASHER

08322-0116B

$2.70

13

NUT

09159-16007

$12.61

14

BUFFER, CHAIN TOUCH DEFENSE

61273-37K00

$35.53

15

BOLT (6X16)

09111-06251

$2.42

16

GUIDE, CHAIN

61341-37K00

$45.00

17

PLATE, CHAIN GUIDE

61342-37K00

$35.68

18

BOLT

01547-0645A

$2.42

19

BOLT

01547-0612A

$2.03

20

NUT

08316-1006B

$2.50

21

WASHER,CHAIN ADJUSTER RH

61445-28H11

$48.67

22

WASHER,CHAIN ADJUSTER LH

61446-35G01

$36.60

23

BOLT (8X50)

09100-08287

$3.10

24

NUT

09159-08034

$1.62
