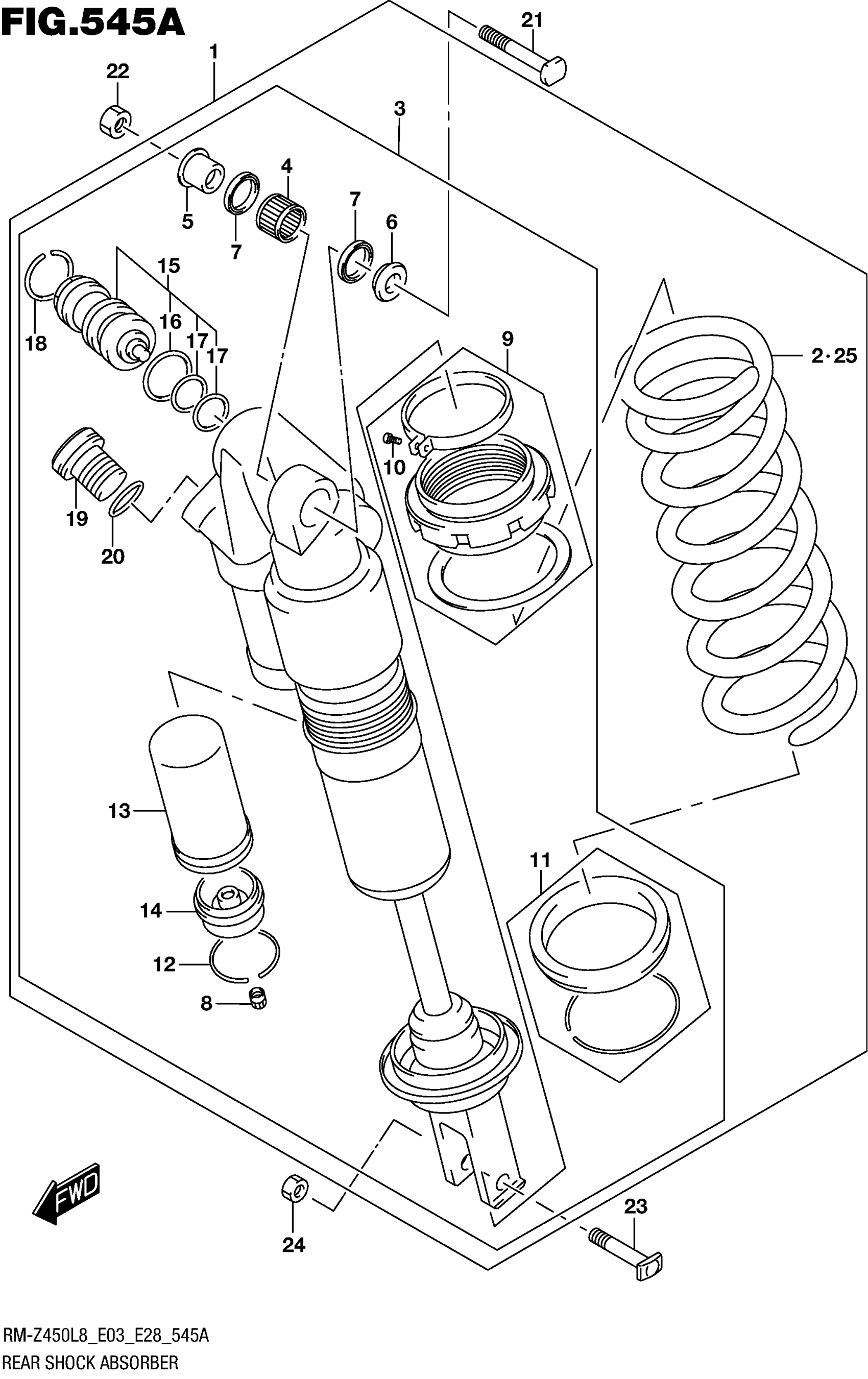

Suzuki RM-Z450L8 (2018) REAR SHOCK ABSORBER Diagram

#

Description
Price

1

ABSORBER ASSY, RR SHOCK

62100-37K10-019

$1,394.90

1

(BLACK)

62100-37K10-019

$1,394.90

2

SPRING,RR (K=54N/MM,BLACK) | (STD K=54N/MM)

62211-37K00-019

$206.85

3

.DAMPER REAR

62210-37K10

$793.70

4

..BEARING (16X22X12)

09263-16033

$20.26

5

.SPACER,UPPER BRG,R

62684-36F00

$23.07

6

.SPACER,UPPER BRG,L

62685-36F00

$13.36

7

OIL SEAL (16X22X2.5)

09284-16005

$6.95

8

..CAP,AIR VALVE

52194-46686

Unavailable

9

ADJUSTER SET

62190-37K00

$68.35

10

..BOLT,GUIDE BOOT

51579-29EC0

$2.85

11

..SPRING SEAT SET

62220-36F00

$86.03

12

..RING,STOPPER

62279-27C40

Unavailable

13

..BLADDER

62273-43D10

$29.47

14

..CAP,CHAMBER

62275-37K00

$38.22

15

..BOLT,PLUG

62130-37K00

$126.97

16

...O-RING

62156-37K00

$5.17

17

...O-RING

51134-28H40

$4.88

18

..RING,STOPPER

62132-37K00

$5.98

19

..CAP

62133-37K00

$36.35

20

..O-RING

62154-37K00

$2.48

21

BOLT,RR SHOCK ABSORBER UPR

62311-28H00

$9.85

22

NUT

09159-10067

$6.11

23

BOLT,RR SHOCK ABSORBER LWR

62221-37F30

$7.48

24

NUT

09159-10067

$6.11

25-1

SPRING,RR (K=52N/MM,BLACK) | OPT

62211-37K10-019

$206.85

25-1

SPRING,RR (K=52N/MM,BLACK) | (SOFT K=52N/MM)

62211-37K10-019

$206.85

25-2

.SPRING,RR (K=56N/MM,BLACK) | OPT

62211-37K20-019

$206.85

25-2

.SPRING,RR (K=56N/MM,BLACK) | (HARD K=56N/MM)

62211-37K20-019

$206.85
