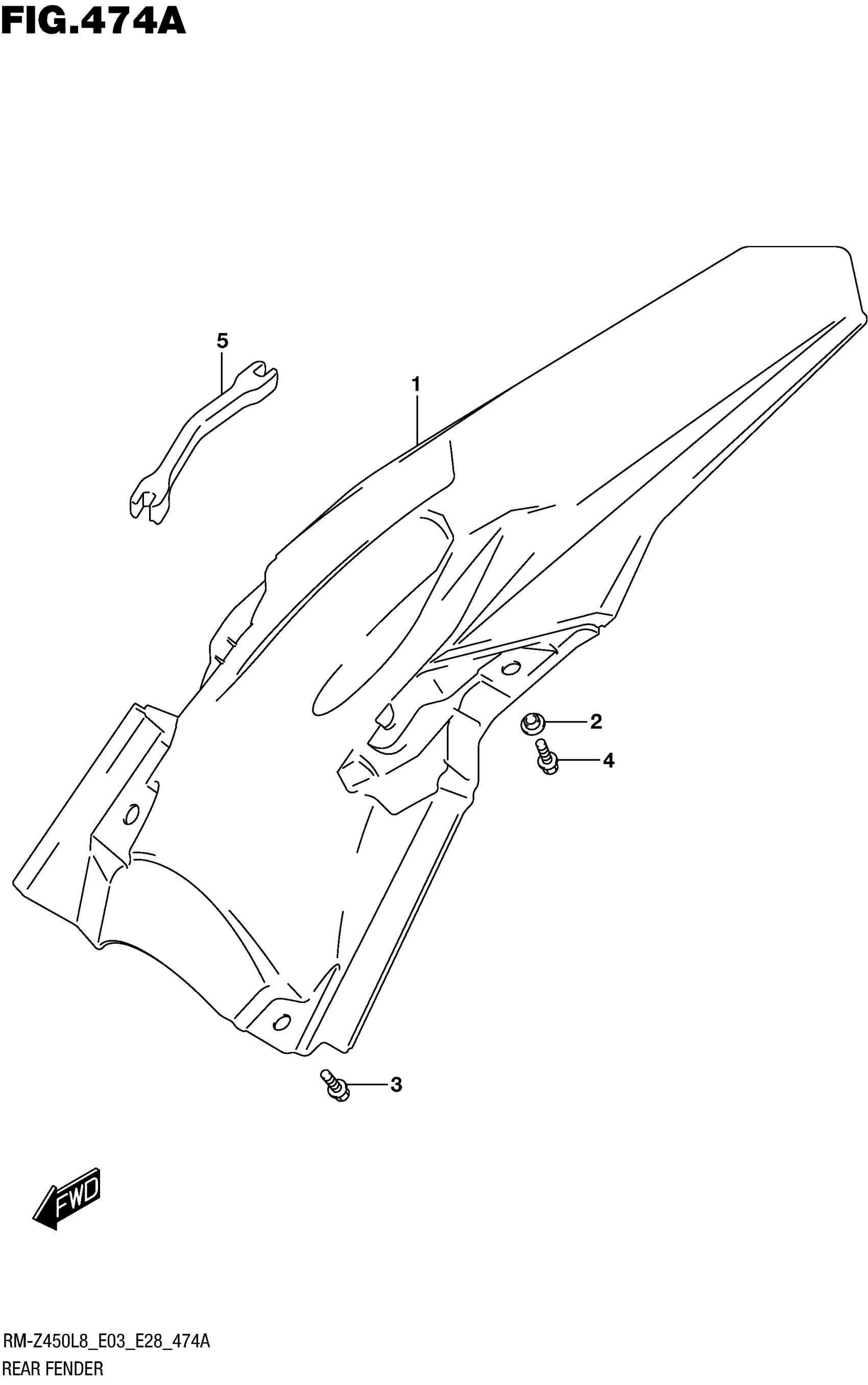

Suzuki RM-Z450L8 (2018) REAR FENDER Diagram

#

Description

Price

1

FENDER, REAR (YELLOW)

63111-37K00-YU1

$65.58

2

WASHER, FRONT FENDER

63191-28H00

$10.28

3

BOLT (6X16)

09111-06251

$2.42

4

BOLT

01547-0616A

$2.03

5

SPANNER (6.4X6.8)

09813-00134

$18.48
