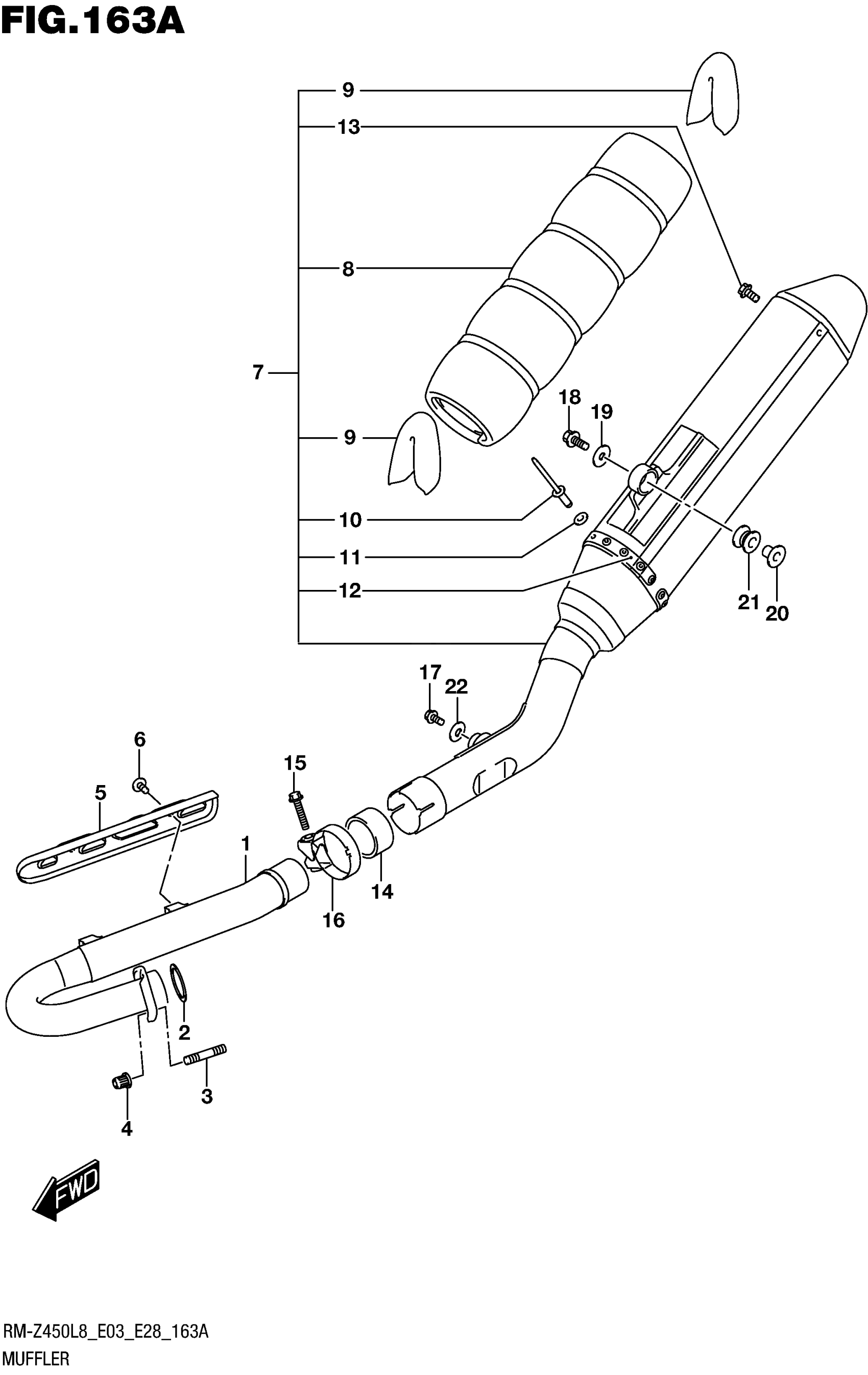

Suzuki RM-Z450L8 (2018) MUFFLER Diagram

#

Description
Price

1

PIPE,EXHAUST

14150-28H60

$238.88

2

.GASKET,EXHAUST PIPE

14181-35G00

$9.31

3

STUD BOLT

01421-0816A

$1.78

4

NUT

09159-08144

$14.80

5

COVER,EXHAUST PIPE

14186-28H20

$54.75

6

BOLT (6X8)

09139-06178

$4.72

7

BODY,MUFFLER

14310-37K10

$816.85

8

.SILENCER,MUF

14351-28H60

$311.95

9

.GLASS WOOL, MUFFLER TAIL

14355-49H00

$25.25

10

.RIVET, MUFFLER

14454-28H00

Unavailable

11

.WASHER

14456-28H00

$1.70

12

.BAND,MUFFLER

14781-28H10

Unavailable

13

.BOLT

01547-0612A

$2.03

14

CONNECTOR, MUFFLER

14771-42F10

$23.13

15

BOLT (8X35)

09103-08536

$2.68

16

CLAMP, CONNECTOR

14459-28H00

$36.80

17

BOLT (8X20)

09103-08426

$4.60

18

BOLT (8X35)

09103-08536

$2.68

19

WASHER (8.5X26X1.6)

09160-08151

$1.99

20

SPACER (8.6X12X18.5)

09180-08157

$7.12

21

CUSHION

09320-12043

$7.98

22

WASHER (8X20X1)

09160-08103

$3.48
