Description

Price

1

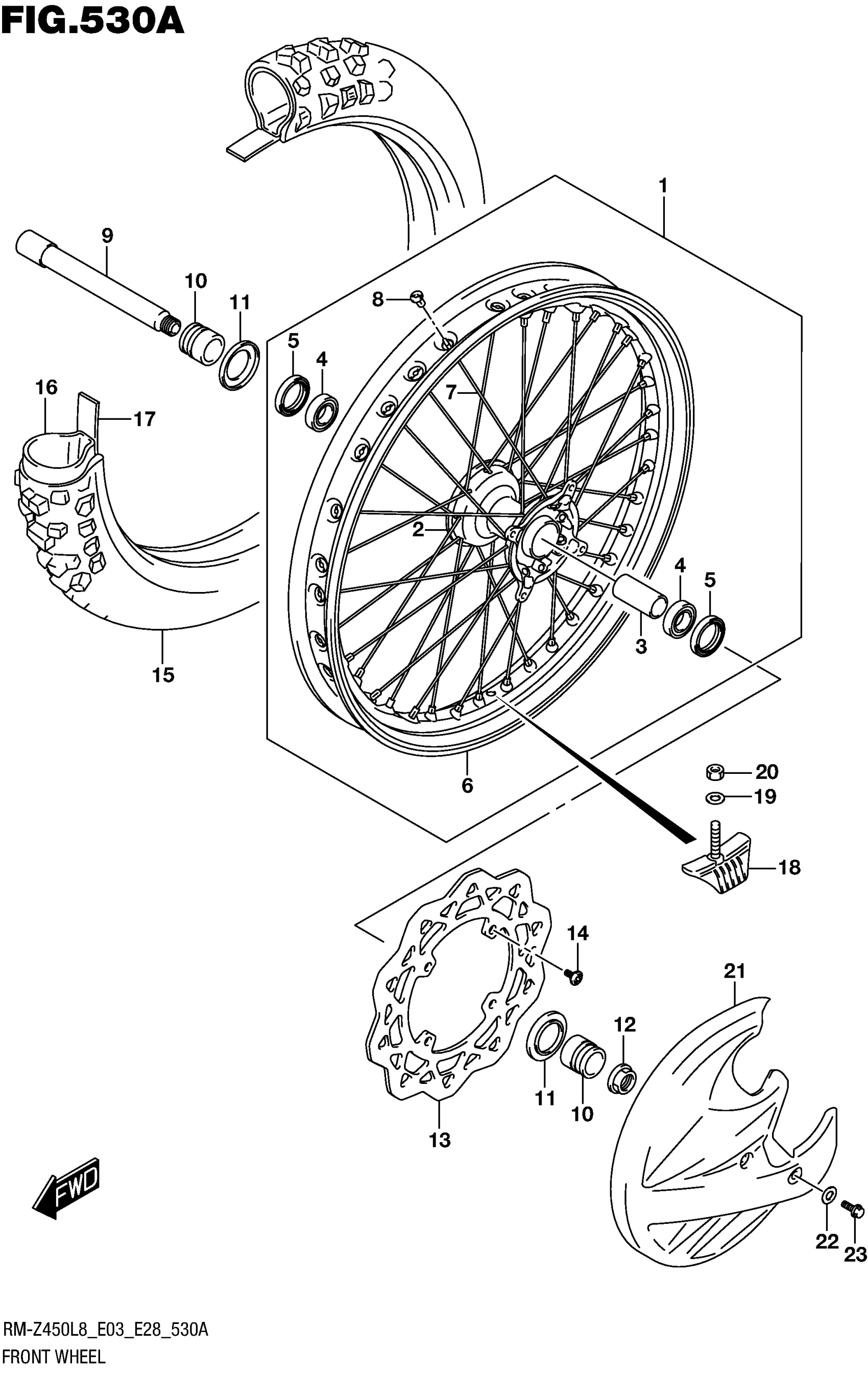

WHEEL ASSY,FRONT This part replaces 54100-37K00.

54100-37K01

$789.30

2

.HUB,FR

54111-35G01

$298.30

3

.SPACER,FR HUB BEARING (20.5X

54731-35G00

$25.52

4

.BEARING (22X39X9) This part replaces 09262-22034.

09262-22048

$46.03

5

.SEAL,OIL (30X40X7)

09283-30073

$17.28

6

.RIM, FRONT WHEEL (21X1.60)

55311-37K00

$350.85

7

.SPOKE,FR WHEEL

55321-35G10

$4.79

8

.NIPPLE, FRONT WHEEL

55325-35G00

$5.83

9

AXLE,FR

54711-35G00

$115.85

10

SPACER,FR AXLE (L:41)

54741-35G00

$31.07

11

COVER,FR AXLE SPACER

54742-35G00

$8.98

12

NUT

09159-18016

$12.48

13

DISC, FRONT BRAKE

59221-37K00

$193.07

14

SCREW (6X13.5)

09139-06142

$3.97

15

TIRE,FR (80/100-21) | X30F

55110-37K00

$282.13

15

TIRE,FR (80/100-21) | BRIDGESTONE

55110-37K00

$282.13

16

TUBE ASSY, WHEEL INNER

55200-32E01

$58.75

17

PROTECTOR,WHL INR TUBE

55261-35G01

$6.88

18

STOPPER, BEAD (1.6)

65270-08G00

$54.75

19

WASHER

08322-0108A

$1.92

20

NUT

08310-0008A

$1.84

21

COVER, BRAKE DISC (BLACK) | OPT

59231-36E30-019

Unavailable

22

WASHER, BRAKE DISC COVER | OPT

59232-36E30
