2017 Suzuki RM-Z450L7 RH Front Fork Damper Diagram

← All diagrams

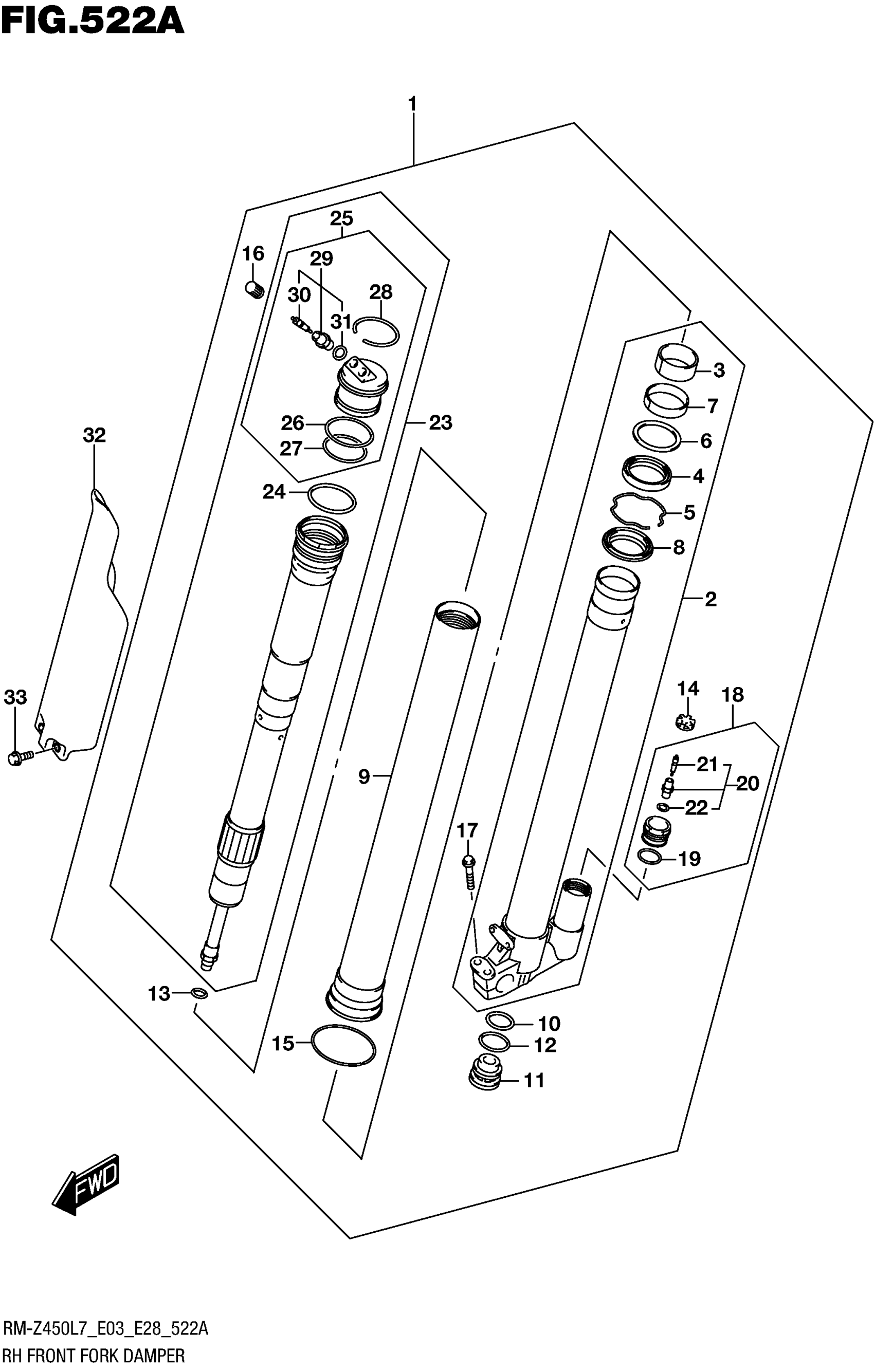

Find the part on the RH Front Fork Damper diagram for your 2017 Suzuki RM-Z450L7, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2017 Suzuki RM-Z450L7 RH Front Fork Damper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

1

$1,834.40

In stock

2

.TUBE, INNER RH

51110-28H40

1
Out of stock

3

..BUSH,SLIDE

51127-28H40

1

$32.15

In stock

4

..SEAL,OIL

51153-36E00

1
Out of stock

5

..RING,STOPPER

51156-36E00

1
Out of stock

6

..SPACER,SEAL

51158-36E00

1
Out of stock

7

..BUSH,GUIDE

51167-28H40

1

$31.45

In stock

8

..SEAL, DUST

51173-28H40

1

$42.02

In stock

9

.TUBE, OUTER

51130-28H50

1
Out of stock

10

.O RING

51175-37F80

1

$6.60

In stock

11

.BOLT

51177-28H40

1
Out of stock

12

.O RING

51178-28H40

1

$8.98

In stock

13

.O RING

51179-28H40

1

$5.75

In stock

14

.CAP

51199-28H40

1

$10.62

In stock

15

.RING,STOPPER

51211-28H40

1

$15.90

In stock

16

.CAP

51294-20400

1

$8.32

In stock

17

BOLT

51328-37F80

2

$7.23

In stock

18

.BOLT

51357-28H40

1

$80.70

In stock

19

..O RING

51176-28H40

1

$5.65

In stock

20

..VALVE ASSY, AIR

51290-28H40

1

$25.02

In stock

21

...CORE, VALVE

51291-28H40

1
Out of stock

22

...O RING

51292-28H40

1

$5.75

In stock

23

.ROD, JOINT

51180-28H60

1
Out of stock

24

..O-RING

51118-28H30

1

$5.48

In stock

25

..CAP

51360-28H60

1
Out of stock

26

...O RING

51133-28H40

1

$5.75

In stock

27

...O-RING

51134-28H40

1

$5.52

In stock

28

...RING, STOPPER

51132-28H40

1
Out of stock

29

...VALVE ASSY, AIR

51290-28H40

2

$25.02

In stock

30

....CORE, VALVE

51291-28H40

2
Out of stock

31

....O RING

51292-28H40

2

$5.75

In stock

32

1

$65.53

In stock

33

BOLT (6X10)

09111-06098

2

$3.30

In stock
