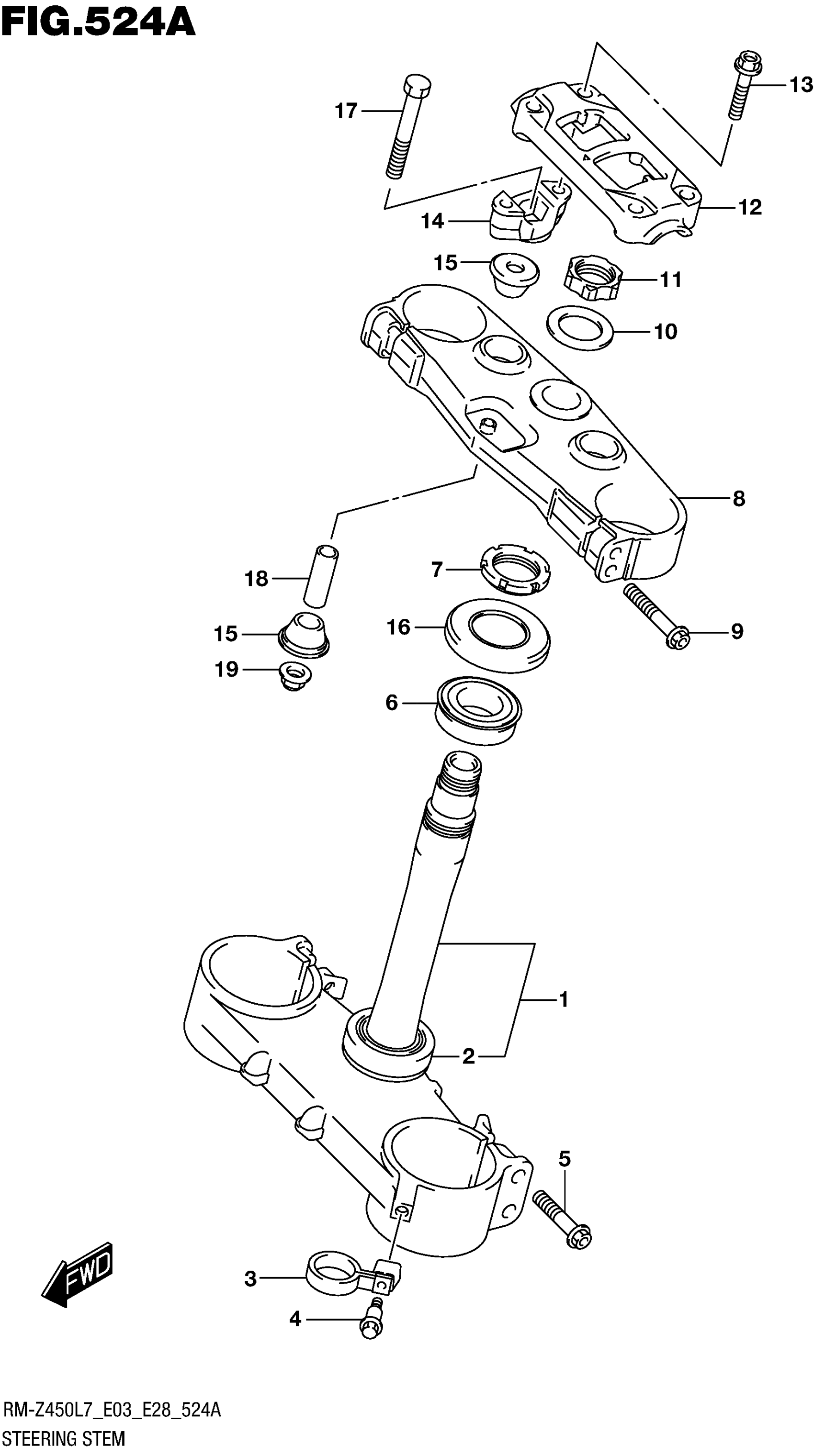

Suzuki RM-Z450L7 (2017) STEERING STEM Diagram

#

Description
Price

1

STEM, STEERING

51410-28H60

$1,026.45

2

.BEARING (30X52X16) This part replaces 09265-30014.

09265-30035

$43.42

3

GUIDE, FRONT BRAKE HOSE

58621-37F90

$15.27

4

BOLT (6X20.5)

09111-06087

$3.30

5

BOLT

51328-37F80

$6.94

6

.BEARING (30X52X16) This part replaces 09265-30014.

09265-30035

$43.42

7

NUT, STEERING

51631-28H00

$32.77

8

HEAD, STEERING STEM

51311-28H60

$495.75

9

BOLT

51328-37F80

$6.94

10

WASHER,STEM HEAD

51356-29E00

$20.30

11

NUT,STEM HEAD

51353-37F70

$45.53

12

HOLDER,HANDLE

56211-10H10

$96.27

13

BOLT

51321-37F90

$8.21

14

HOLDER,HANDLE,LOWER

56221-28H01

$130.52

15

CUSHION,RUBBER

56241-10H11

$49.52

16

COVER, STEERING UPPER

51643-28H10

$11.73

17

BOLT,HANDLE HOLDER

56321-28H00

$14.75

18

SPACER

56243-10H11

$13.37

19

NUT This part replaces 08319-31108.

08319-31107

$2.80
