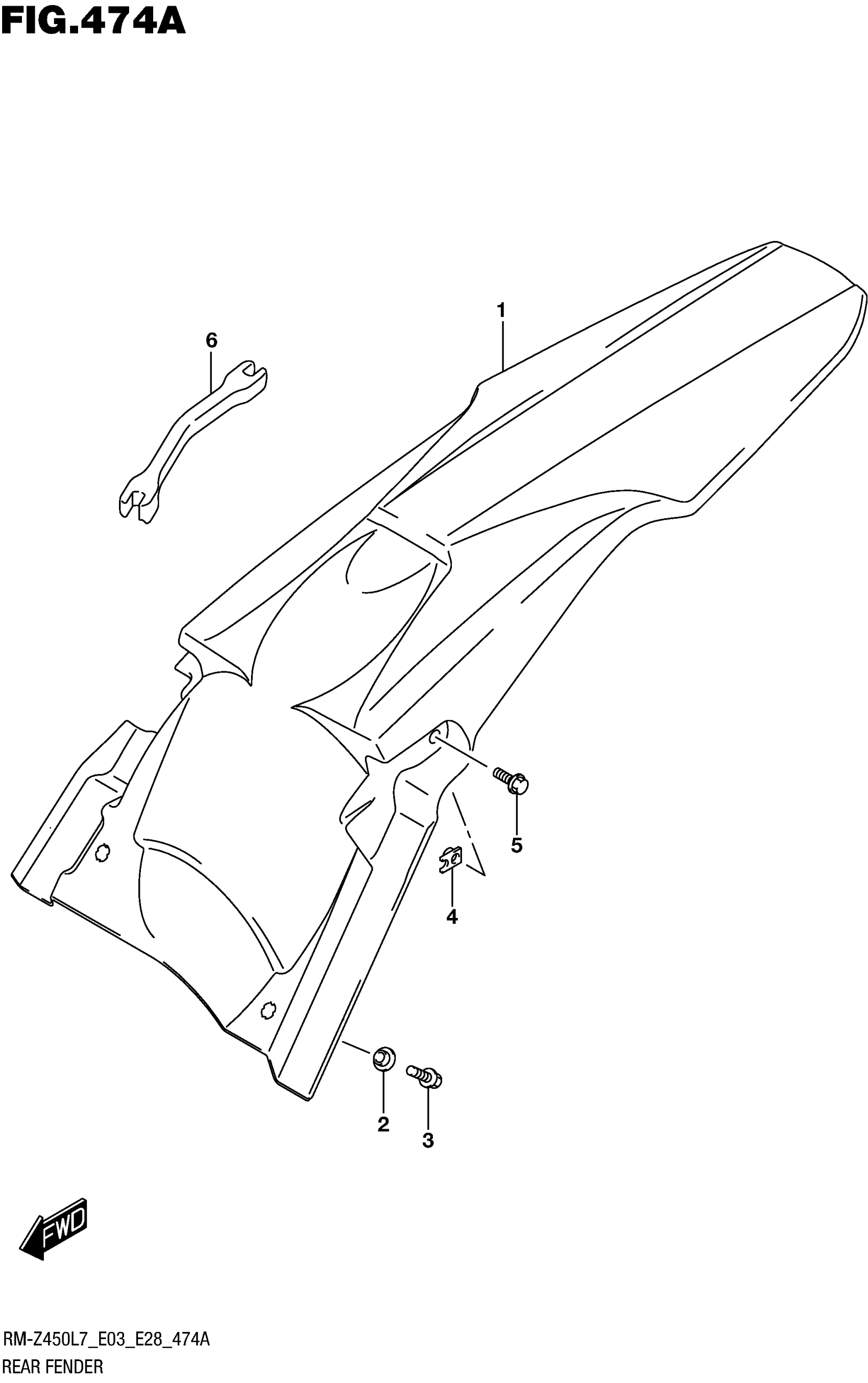

Suzuki RM-Z450L7 (2017) REAR FENDER Diagram

#

Description

Price

1

FENDER, REAR (YELLOW)

63111-28H01-YU1

$72.28

2

WASHER, FRONT FENDER

63191-28H00

$10.12

3

BOLT

01547-0620A

$2.10

4

NUT

63131-02J00

$14.88

5

BOLT

01547-0616A

$2.09

6

SPANNER (6.4X6.8)

09813-00134

$20.67
