2017 Suzuki RM-Z450L7 Front Fender Diagram

← All diagrams

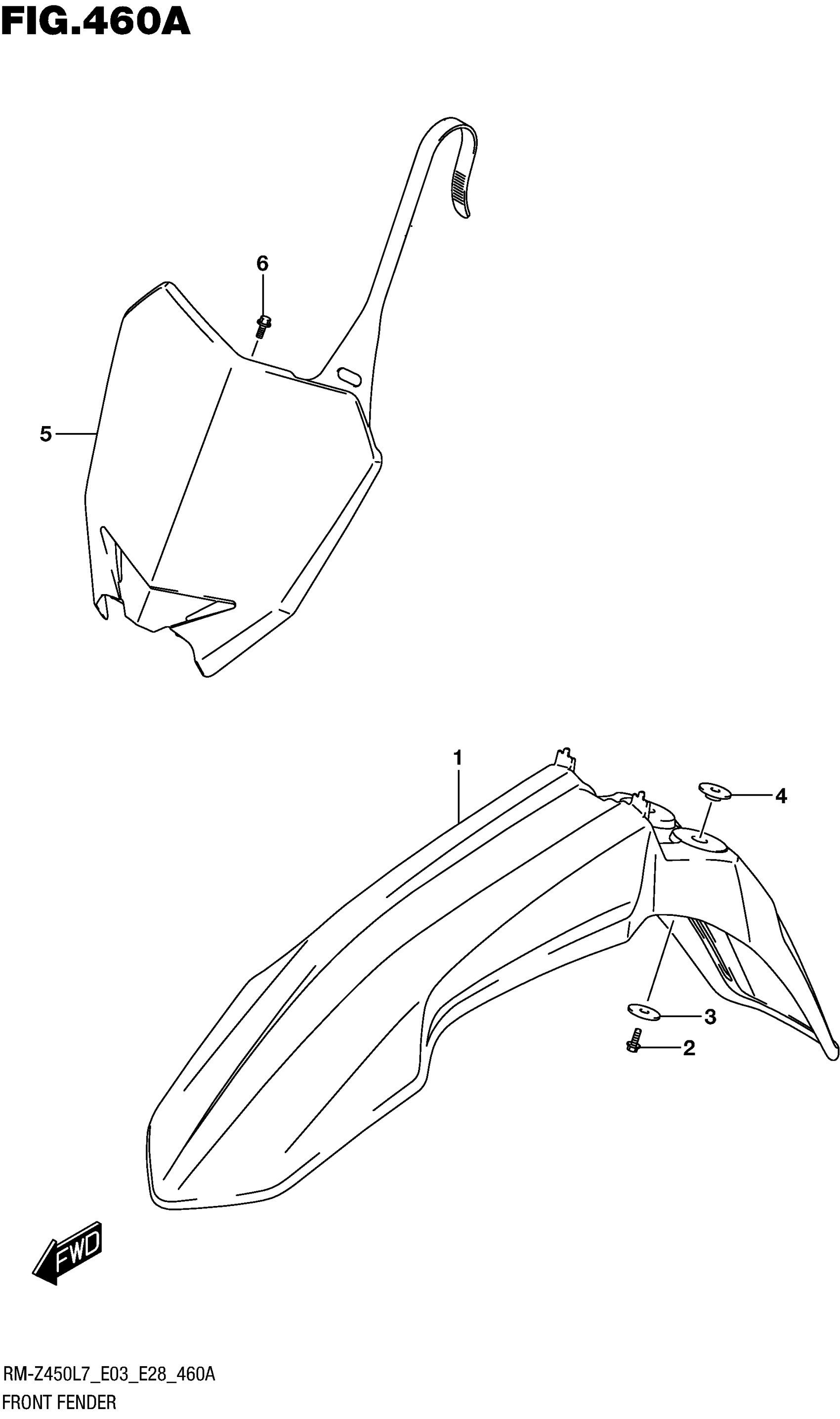

Find the part on the Front Fender diagram for your 2017 Suzuki RM-Z450L7, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2017 Suzuki RM-Z450L7 Front Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FENDER, FRONT (YELLOW)

53111-28H00-YU1

1

$63.28

In stock

2

BOLT

01547-0616A

4
Out of stock

3

WASHER, LOWER

44135-35G00

4

$11.64

In stock

4

WASHER

09169-06078

4

$3.51

In stock

5

1

$48.75

In stock

6

BOLT (6X12)

09116-06197

1

$2.92

In stock
