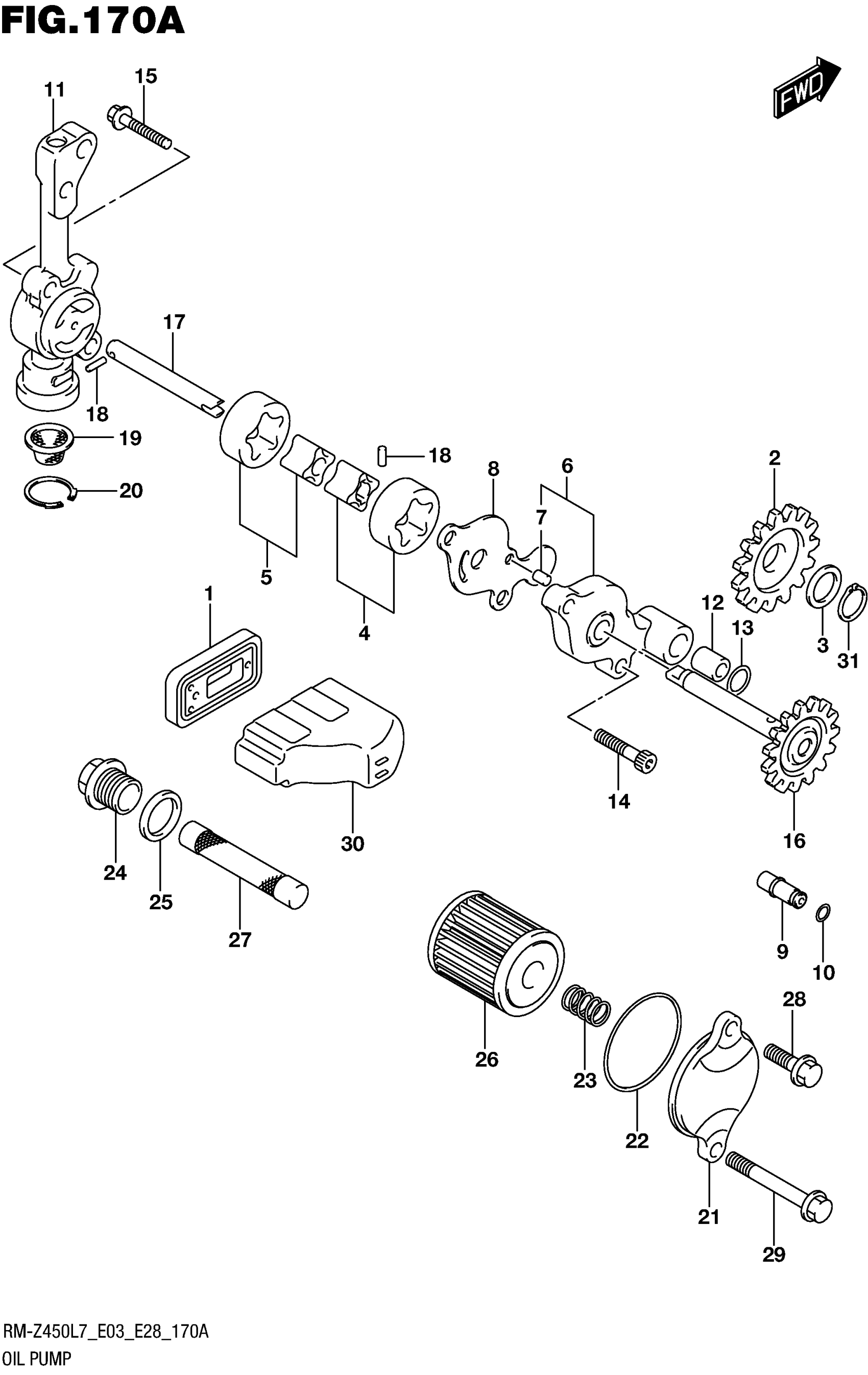

Suzuki RM-Z450L7 (2017) OIL PUMP Diagram

#

Description
Price

1

VALVE ASSY, OIL REED

13150-28H10

$41.60

2

GEAR,OIL PUMP IDLE (NT:15)

16321-28H00

$67.32

3

SHIM (12X18X0.5)

09181-12130

$2.06

4

ROTOR SET,OIL PUMP NO.1

16410-35G00

$37.45

5

ROTOR SET,OIL PUMP

16410-45G00

$40.84

6

COVER,OIL PUMP NO.1

16430-28H00

$44.07

7

PIN (4X13.8)

04221-04089

$1.49

8

PLATE,OIL PUMP NO.1

16432-35G10

$7.73

9

VALVE ASSY, OIL RELIEF

16440-28H00

$74.08

10

O RING (D:1.2,ID:4.7)

09280-05007

$1.92

11

COVER,OIL PUMP NO.2

16450-28H10

$71.53

12

PIN

04211-09149

$1.65

13

.O RING (D:1.9,ID:8.6)

09280-09005

$3.70

14

BOLT

07130-0520A

$2.22

15

BOLT

01547-0625A

$2.01

16

SHAFT,OIL PUMP DRIVEN GEAR (N

16440-35G10

$76.30

17

SHAFT,OIL PUMP NO.2

16443-28H00

$19.38

18

PIN (2.5X11.8)

09261-02008

$1.65

19

STRAINER,OIL PUMP NO.2

16530-28H00

$9.72

20

CIRCLIP

09381-19003

$2.11

21

CAP,ENG OIL FILTER OUTER

16315-35G30

$21.67

22

O-RING (D:2,ID:38.5) This part replaces 09280-39001.

09280-39002

$3.16

23

SPRING

09440-10038

$3.10

24

CAP, ENGINE OIL STRAINER

16316-10H01

$22.29

25

GASKET (16X22X2)

09168-16002

$1.91

26

FILTER, ENGINE OIL

16510-35G00

$10.13

27

STRAINER, ENGINE OIL

16520-10H10

$45.89

28

BOLT

01547-0616A

$2.03

29

BOLT

01547-0640A

$2.32

30

GUIDE,OIL REED VALVE

13158-28H00

$17.67

31

CIRCLIP

08331-3112A

$1.78
