2017 Suzuki RM-Z450L7 Magneto Diagram

← All diagrams

Find the part on the Magneto diagram for your 2017 Suzuki RM-Z450L7, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

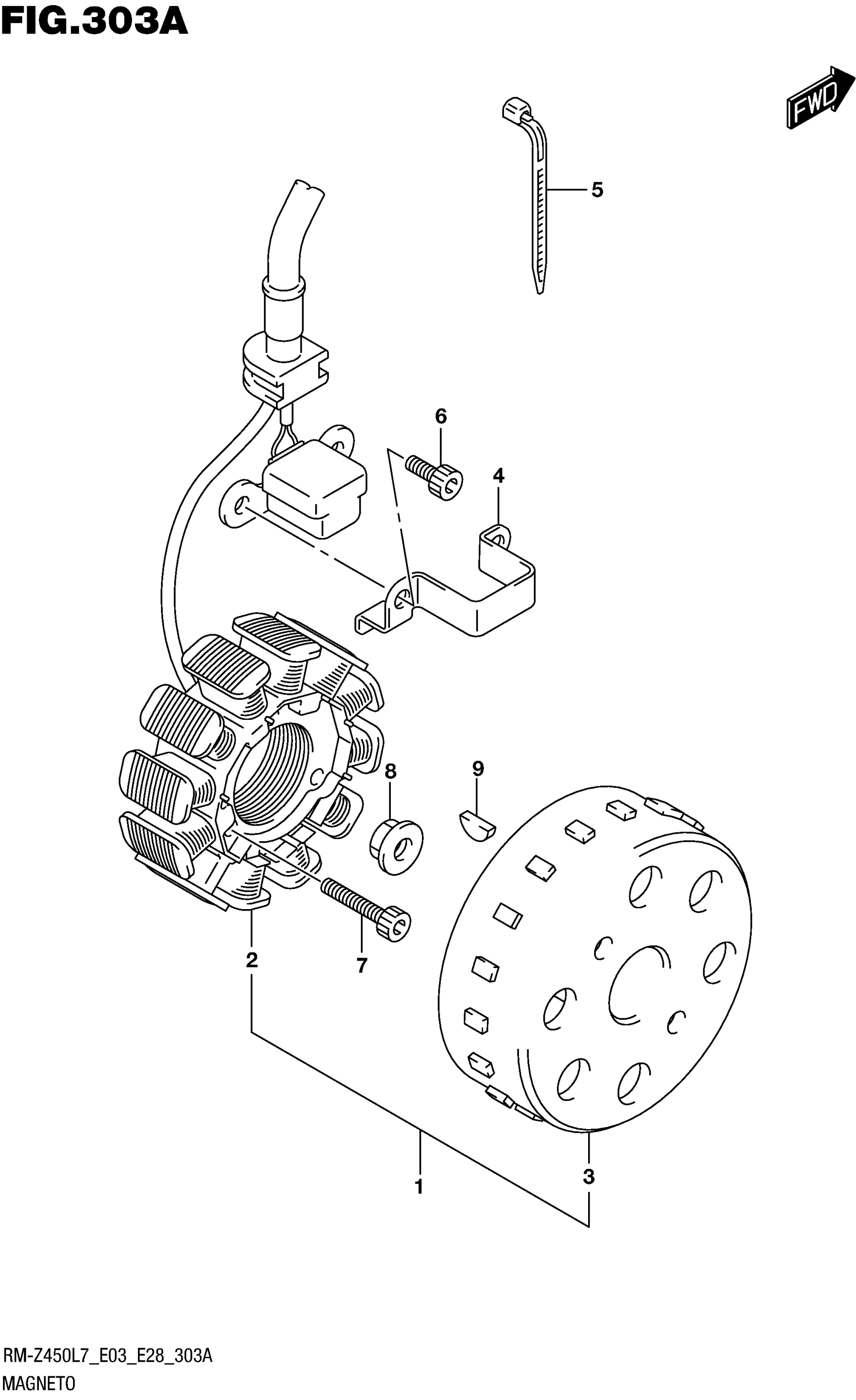

2017 Suzuki RM-Z450L7 Magneto Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

MAGNETO ASSY

32100-28HA0

1
Out of stock

2

STATOR ASSY,MAGNETO This part replaces 32101-28HA0.

32101-28HA1

1
Out of stock

3

ROTOR ASSY,MAGNETO

32102-28HA0

1
Out of stock

4

CLAMP, MAGNETO LEAD

32371-35G00

1
Out of stock

5

CLAMP (L:165)

09407-18402

1
Out of stock

6

BOLT

07130-0512A

2
Out of stock

7

BOLT

07130-0525A

3
Out of stock

8

NUT

08316-1012A

1
Out of stock

9

KEY

08341-31039

1
Out of stock
