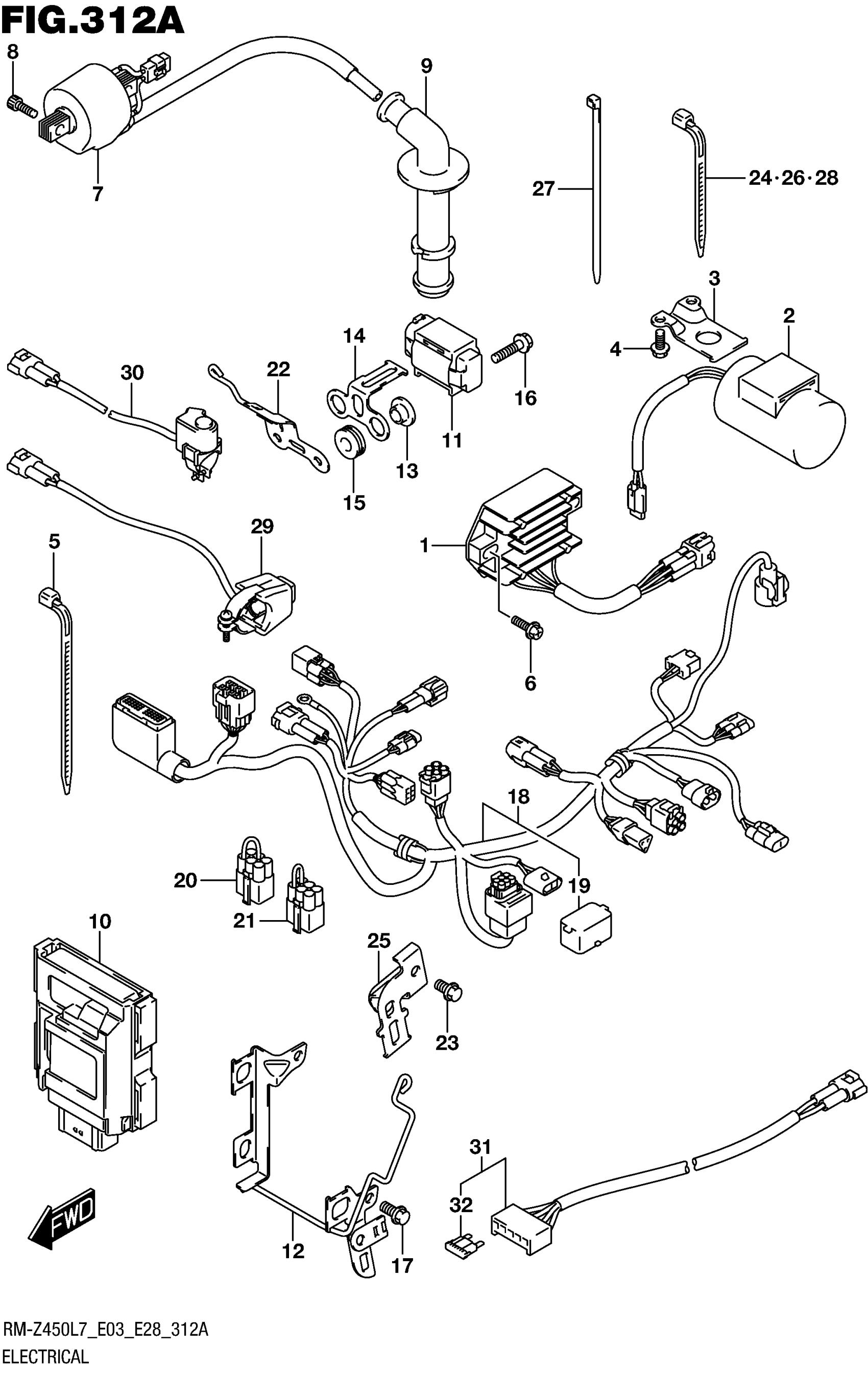

Suzuki RM-Z450L7 (2017) ELECTRICAL Diagram

#

Description
Price

1

RECTIFIER ASSY

32800-28H00

$194.41

2

CONDENSER ASSY

33640-28H00

$152.79

3

BRACKET, CONDENSER

33641-28H00

Unavailable

4

BOLT (6X10)

09103-06188

$3.17

5

CLAMP (L:235)

09407-25401

$4.33

6

SCREW

02162-0620C

$1.80

7

COIL ASSY, IGNITION

33410-28H00

$94.21

8

BOLT

07130-0620A

$2.57

9

CAP ASSY,SPARK PLUG

33510-28H00

$67.48

10

CONTROL UNIT, FI

32920-28HG0

$650.68

11

SENSOR ASSY,FUEL CUT

33960-06G10

$86.01

12

BRACKET, FI CONTROL UNIT

32931-28H00

$44.53

13

SPACER (6.2X8.4X10.9)

09180-06331

$5.17

14

BRACKET, FUEL CUT SENSOR

33961-28HA0

$7.62

15

CUSHION

09320-08501

$3.06

16

BOLT

01500-0630A

$2.29

17

BOLT

01547-0612A

$2.09

18

HARNESS,WIRING This part replaces 36610-28H60.

36610-28H61

$367.35

19

CAP,TS This part replaces 36654-46H00.

36654-46H01

$14.23

20

WIRE,SHORT This part replaces 36852-28H00.

36852-28H01

$14.88

21

WIRE,SHORT This part replaces 36852-49H00.

36852-49H01

$10.97

22

BRACKET, COUPLER

36672-28H30

$21.65

23

BOLT

01547-0610A

$1.47

24

CLAMP (L:95)

09407-11401

$2.87

25

BRACKET, COUPLER

36672-28H20

Unavailable

26

CLAMP (L:125)

09407-14403

$2.31

27

CLAMP (L:145)

09407-14407

$2.84

28

CLAMP (L:165)

09407-18402

$2.29

29

SWITCH ASSY,ENGINE STOP

37820-36E00

$25.90

30

SWITCH ASSY, LAUNCH CONTROL

37820-28H01

$144.35

31

WIRE, BATTERY | OPT

36890-28H00

$51.95

32

.FUSE (10A) | OPT

09481-10101

$1.80
