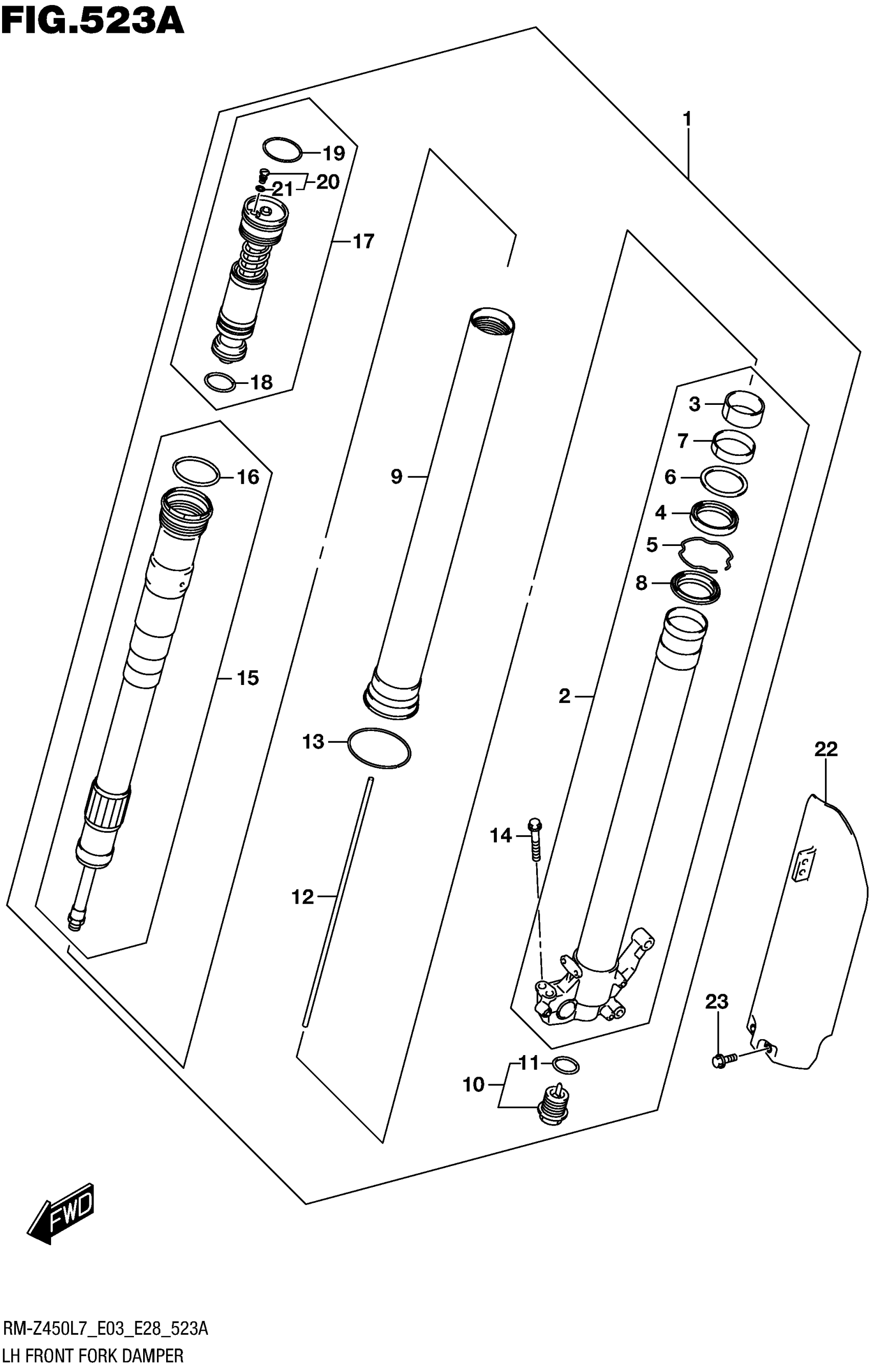

Suzuki RM-Z450L7 (2017) LH FRONT FORK DAMPER Diagram

#

Description
Price

1

DAMPER ASSY, FRONT FORK LH

51104-28H60

Unavailable

2

.TUBE, INNER LH

51120-28H40

$611.33

3

..BUSH,SLIDE

51127-28H40

$28.48

4

..SEAL,OIL

51153-36E00

$37.22

5

..RING,STOPPER

51156-36E00

$8.43

6

..SPACER,SEAL

51158-36E00

$9.37

7

..BUSH,GUIDE

51167-28H40

$27.87

8

..SEAL, DUST

51173-28H40

$37.23

9

.TUBE, OUTER

51140-28H40

$601.08

10

.BOLT, CENTER

51170-28H40

$112.87

11

..O-RING

51122-28H40

$3.90

12

.ROD, PUSH

51191-28H30

$14.70

13

.RING,STOPPER

51211-28H40

$14.08

14

BOLT

51328-37F80

$7.25

15

.DAMPER

51190-28H40

Unavailable

16

..O-RING

51118-28H30

$4.85

17

.BOLT, FORK

51350-28H60

Unavailable

18

..O-RING

51175-28H40

$5.02

19

..O-RING

51187-47H00

$6.93

20

..BOLT,PLUG

51357-36F20

$14.37

21

...O-RING

51358-28E30

$4.28

22

PROTECTOR,FRONT FORK,L

51510-28H70

$103.73

23

BOLT (6X10)

09111-06098

$2.92
