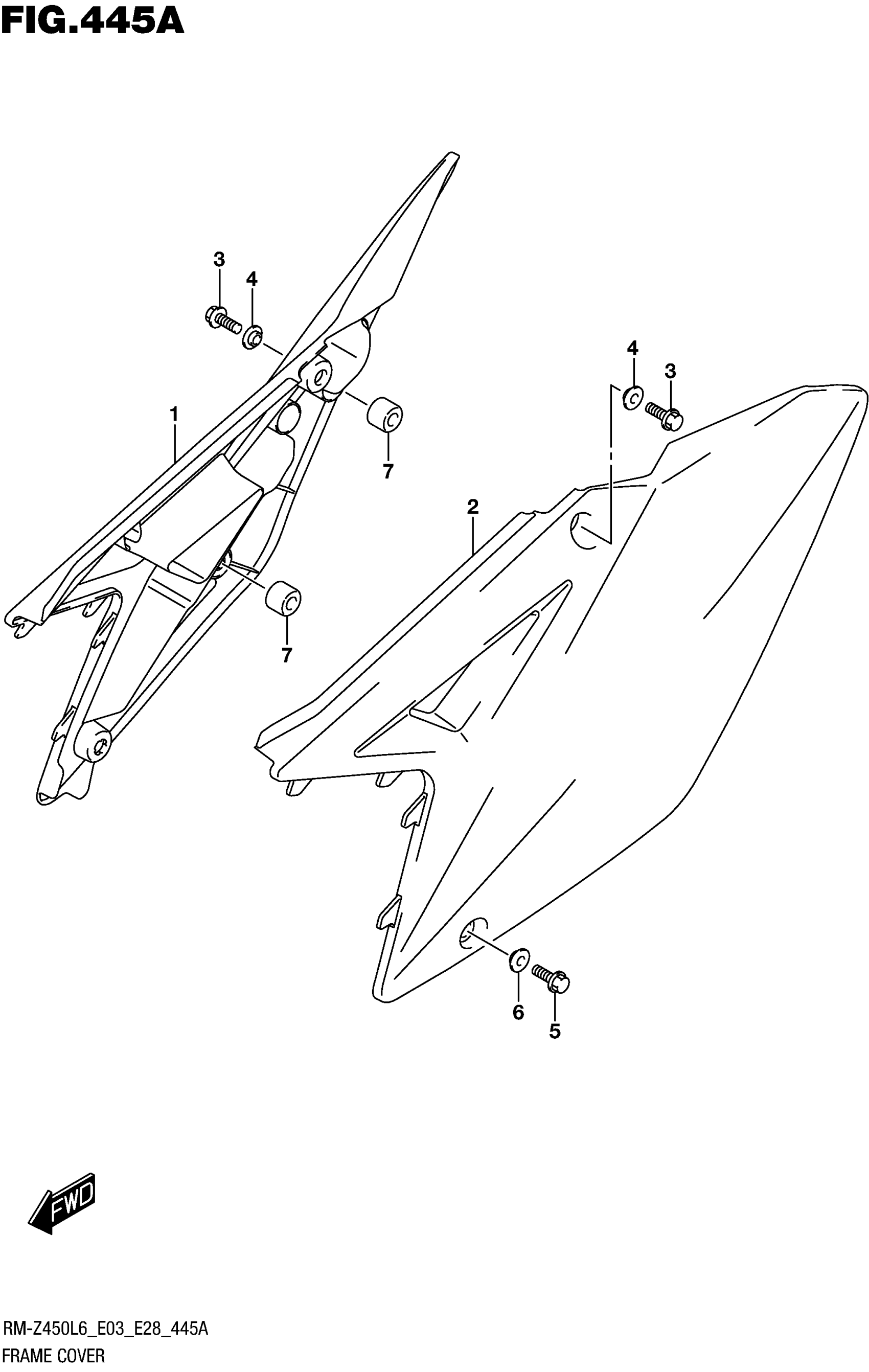

Suzuki RM-Z450L6 (2016) FRAME COVER Diagram

#

Description

Price

1

COVER, FRAME RH (YELLOW)

47111-28H02-YU1

$198.49

2

COVER, FRAME LH (YELLOW)

47211-28H00-YU1

$198.49

3

BOLT

01547-0620A

$2.03

4

WASHER

47191-28H00

$9.60

5

BOLT | FRONT

01547-0616A

$2.03

6

WASHER | FRONT

47191-28H00

$9.60

7

CUSHION, RH

47161-08G00

$9.63
