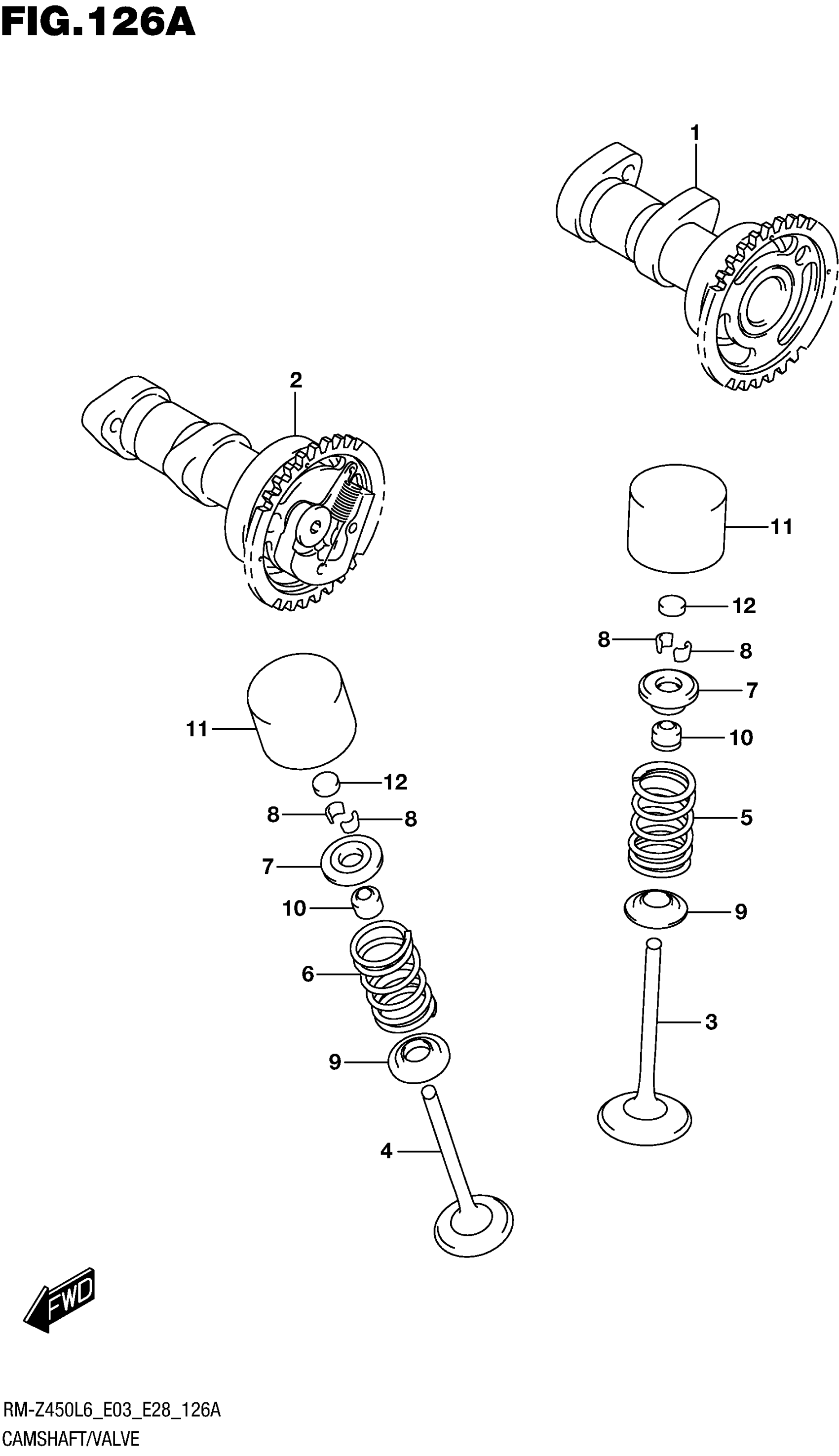

Suzuki RM-Z450L6 (2016) CAMSHAFT/VALVE Diagram

#

Description
Price

1

CAM SHAFT, INTAKE (NT:32) | NT:32

12710-28H50

$293.90

2

CAM SHAFT, EXHAUST (NT:32) | NT:32

12720-28H60

$329.82

3

VALVE,INTAKE

12911-28H00

$88.08

4

VALVE,EXHAUST

12912-28H00

$97.68

5

SPRING,VALVE

12921-28H00

$16.93

6

SPRING,VALVE

12921-28H00

$16.93

7

RETAINER,VALVE SPRING

12931-02F10

$15.16

8

COTTER, VALVE

12932-24400

$1.94

9

SEAT,VALVE SPRING

12933-38400

$5.44

10

OIL SEAL (5.5X11X8.2)

09289-05015

$6.70

11

TAPPET This part replaces 12891-02F00.

12891-02F10

$52.61

12-1

SHIM,TAPPET (T:1.50)

12892-35G00-150

$11.83

12-2

SHIM,TAPPET (T:1.52)

12892-35G00-152

Unavailable

12-3

SHIM,TAPPET (T:1.55)

12892-35G00-155

Unavailable

12-4

SHIM,TAPPET (T:1.58)

12892-35G00-158

Unavailable

12-5

SHIM,TAPPET (T:1.60)

12892-35G00-160

Unavailable

12-6

SHIM,TAPPET (T:1.62)

12892-35G00-162

Unavailable

12-7

SHIM,TAPPET (T:1.65)

12892-35G00-165

$11.83

12-8

SHIM,TAPPET (T:1.68)

12892-35G00-168

Unavailable

12-9

SHIM,TAPPET (T:1.70)

12892-35G00-170

Unavailable

12-10

SHIM,TAPPET (T:1.72)

12892-35G00-172

Unavailable

12-11

SHIM,TAPPET (T:1.75)

12892-35G00-175

Unavailable

12-12

SHIM,TAPPET (T:1.78)

12892-35G00-178

Unavailable

12-13

SHIM,TAPPET (T:1.80)

12892-35G00-180

Unavailable

12-14

SHIM,TAPPET (T:1.82)

12892-35G00-182

Unavailable

12-15

SHIM,TAPPET (T:1.85)

12892-35G00-185

Unavailable

12-16

SHIM,TAPPET (T:1.88)

12892-35G00-188

Unavailable

12-17

SHIM,TAPPET (T:1.90)

12892-35G00-190

Unavailable

12-18

SHIM,TAPPET (T:1.92)

12892-35G00-192

Unavailable

12-19

SHIM,TAPPET (T:1.95)

12892-35G00-195

Unavailable

12-20

SHIM,TAPPET (T:1.98)

12892-35G00-198

Unavailable

12-21

SHIM,TAPPET (T:2.00)

12892-35G00-200

Unavailable

12-22

SHIM,TAPPET (T:2.02)

12892-35G00-202

Unavailable

12-23

SHIM,TAPPET (T:2.05)

12892-35G00-205

Unavailable

12-24

SHIM,TAPPET (T:2.08)

12892-35G00-208

Unavailable

12-25

SHIM,TAPPET (T:2.10)

12892-35G00-210

$11.83

12-26

SHIM,TAPPET (T:2.12)

12892-35G00-212

Unavailable

12-27

SHIM,TAPPET (T:2.15)

12892-35G00-215

Unavailable

12-28

SHIM,TAPPET (T:2.18)

12892-35G00-218

Unavailable

12-29

SHIM,TAPPET (T:2.20)

12892-35G00-220

Unavailable

12-30

SHIM,TAPPET (T:2.22)

12892-35G00-222

Unavailable

12-31

SHIM,TAPPET (T:2.25)

12892-35G00-225

$11.83

12-32

SHIM,TAPPET (T:2.28)

12892-35G00-228

Unavailable

12-33

SHIM, TAPPET (T:2.30)

12892-41C00-230

$11.38

12-34

SHIM, TAPPET (T:2.32)

12892-41C00-232

Unavailable

12-35

SHIM, TAPPET (T:2.35)

12892-41C00-235

$11.83

12-36

SHIM, TAPPET (T:2.38)

12892-41C00-238

$11.83

12-37

SHIM, TAPPET (T:2.40)

12892-41C00-240

$11.83

12-38

SHIM, TAPPET (T:2.42)

12892-41C00-242

Unavailable

12-39

SHIM, TAPPET (T:2.45)

12892-41C00-245

$11.83

12-40

SHIM, TAPPET (T:2.48)

12892-41C00-248

Unavailable

12-41

SHIM, TAPPET (T:2.50)

12892-41C00-250

$11.83

12-42

SHIM, TAPPET (T:2.52)

12892-41C00-252

Unavailable

12-43

SHIM, TAPPET (T:2.55)

12892-41C00-255

$11.83

12-44

SHIM, TAPPET (T:2.58)

12892-41C00-258

Unavailable

12-45

SHIM, TAPPET (T:2.60)

12892-41C00-260

$11.38

12-46

SHIM, TAPPET (T:2.62)

12892-41C00-262

Unavailable

12-47

SHIM, TAPPET (T:2.65)

12892-41C00-265

$11.38

12-48

SHIM, TAPPET (T:2.68)

12892-41C00-268

Unavailable

12-49

SHIM, TAPPET (T:2.70)

12892-41C00-270

$11.38

12-50

SHIM, TAPPET (T:2.72)

12892-41C00-272

Unavailable

12-51

SHIM, TAPPET (T:2.75)

12892-41C00-275

$9.69

12-52

SHIM, TAPPET (T:2.78)

12892-41C00-278

Unavailable

12-53

SHIM, TAPPET (T:2.80)

12892-41C00-280

$11.38

12-54

SHIM, TAPPET (T:2.82)

12892-41C00-282

Unavailable

12-55

SHIM, TAPPET (T:2.85)

12892-41C00-285

$11.83

12-56

SHIM, TAPPET (T:2.88)

12892-41C00-288

Unavailable

12-57

SHIM, TAPPET (T:2.90)

12892-41C00-290

$11.38

12-58

SHIM, TAPPET (T:2.92)

12892-41C00-292

Unavailable

12-59

SHIM, TAPPET (T:2.95)

12892-41C00-295

$11.83

12-60

SHIM, TAPPET (T:2.98)

12892-41C00-298

Unavailable

12-61

SHIM, TAPPET (T:3.00)

12892-41C00-300

$11.60

13

SHIM SET,TAPPET (5PCS. EACH) | OPT

12800-35820

Unavailable

13

SHIM SET,TAPPET (5PCS. EACH) | NOT ILLUSTRATED

12800-35820

Unavailable

13

SHIM SET,TAPPET (5PCS. EACH)

12800-35820

Unavailable

14

.CASE, TAPPET SHIM | OPT

99000-69471

Unavailable

14

.CASE,TAPPET SHIM | NOT ILLUSTRATED

99000-69471

Unavailable
