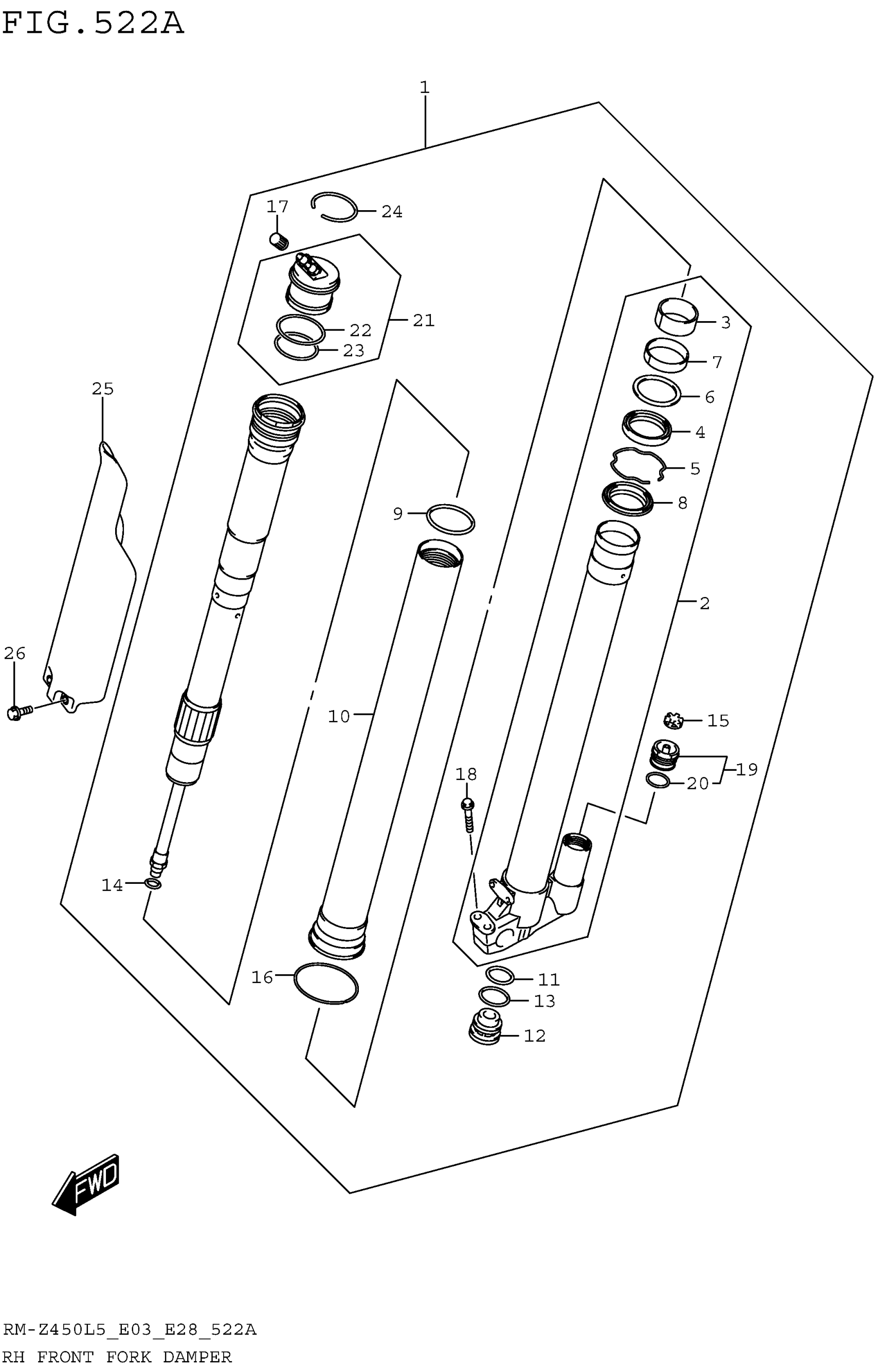

Suzuki RM-Z450L5 (2015) RH FRONT FORK DAMPER (RM-Z450L5 E03) Diagram

#

Description
Price

1

DAMPER ASSY, FRONT FORK RH

51103-28H50

$2,618.58

2

TUBE, INNER RH

51110-28H40

Unavailable

3

..BUSH,SLIDE

51127-28H40

$28.48

4

..SEAL,OIL

51153-36E00

$37.22

5

..RING,STOPPER

51156-36E00

$8.43

6

..SPACER,SEAL

51158-36E00

$9.37

7

..BUSH,GUIDE

51167-28H40

$27.87

8

SEAL, DUST

51173-28H40

$37.23

9

..O-RING

51118-28H30

$4.85

10

TUBE, OUTER

51130-28H50

Unavailable

11

O RING

51175-37F80

$5.83

12

BOLT

51177-28H40

$135.80

13

O RING

51178-28H40

$7.97

14

O RING

51179-28H40

$5.10

15

CAP

51199-28H40

$9.42

16

.RING,STOPPER

51211-28H40

$14.08

17

CAP

51294-20400

$7.37

18

BOLT

51328-37F80

$7.25

19

BOLT

51357-28H40

$71.50

20

O RING

51176-28H40

$5.02

21

CAP

51360-28H40

Unavailable

22

O RING

51133-28H40

$5.10

23

...O-RING

51134-28H40

$4.88

24

RING, STOPPER

51132-28H40

Unavailable

25

PROTECTOR,FRONT FORK,R

51501-28H60

$58.07

26

BOLT (6X10)

09111-06098

$2.92
