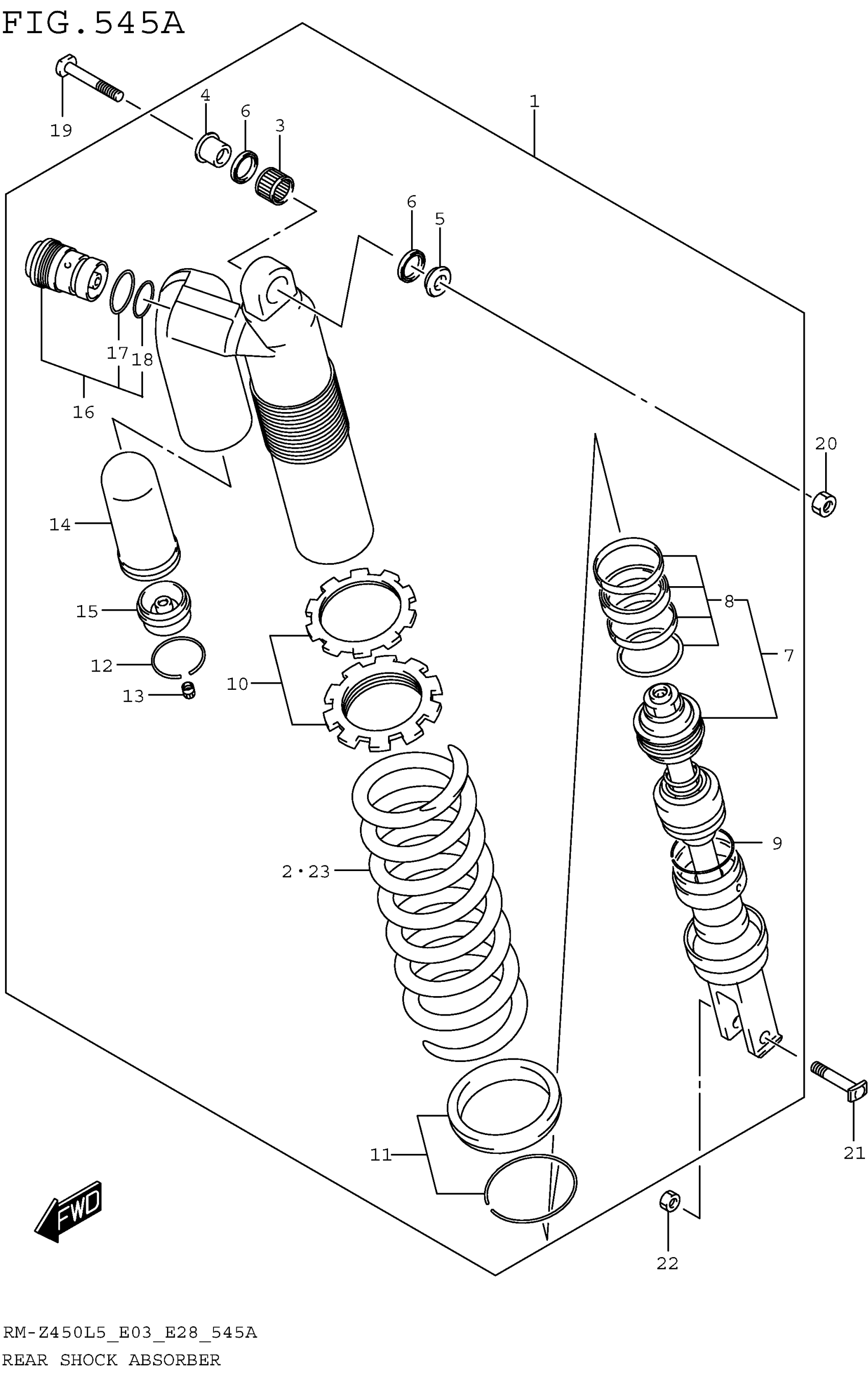

Suzuki RM-Z450L5 (2015) REAR SHOCK ABSORBER (RM-Z450L5 E03) Diagram

#

Description
Price

1

ABSORBER ASSY, RR SHOCK (RED)

62100-28HD0-YKS

$1,563.32

2

SPRING

62211-28H90

Unavailable

3

BEARING(16X22X12)

09263-16033

$20.26

4

.SPACER,UPPER BRG,R

62684-36F00

$23.07

5

.SPACER,UPPER BRG,L

62685-36F00

$13.36

6

OIL SEAL (16X22X2.5)

09284-16005

$6.95

7

ROD, PISTON

62120-28HC0

$796.28

8

O RING SET

62150-28H60

$117.30

9

RING, STOPPER

62279-36E80

$6.85

10

ADJUSTER SET

62190-28H90

Unavailable

11

SPRING SEAT SET

62220-36F00

$86.03

12

RING, STOPPER

62278-36E00

$8.60

13

..CAP,AIR VALVE

52194-46686

Unavailable

14

BLADDER

62273-36E00

$66.72

15

CAP, CHAMBER

62275-28H30

Unavailable

16

BOLT, PLUG This part replaces 62130-28HC0.

62130-28H60

$171.88

17

O RING

62131-28E00

$5.00

18

O RING

51174-36EB0

$5.33

19

BOLT,RR SHOCK ABSORBER UPR

62311-28H00

$9.85

20

NUT

09159-10067

$6.11

21

BOLT,RR SHOCK ABSORBER LWR

62221-37F30

$7.48

22

NUT

09159-10067

$6.11

23

SPRING (SOFT) | OPT

62211-49H60

$154.91

23

SPRING (HARD) | OPT

62211-35G40

Unavailable
