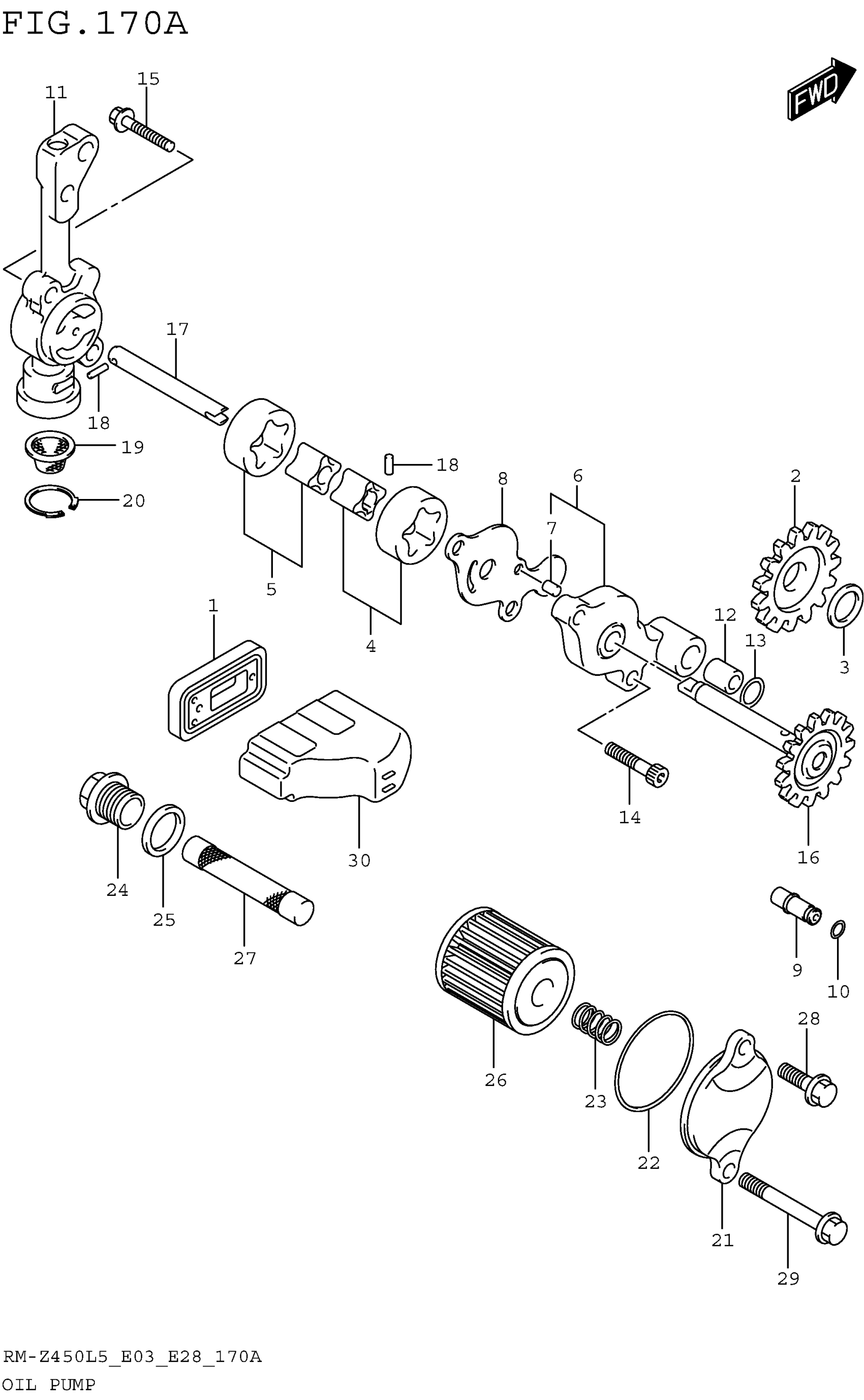

Suzuki RM-Z450L5 (2015) OIL PUMP Diagram

#

Description
Price

1

VALVE ASSY, OIL REED

13150-28H10

$46.95

2

GEAR,OIL PUMP IDLE (NT:15)

16321-28H00

$75.98

3

SHIM (12X18X0.5)

09181-12130

$2.07

4

ROTOR SET,OIL PUMP NO.1

16410-35G00

$49.72

5

ROTOR SET,OIL PUMP

16410-45G00

$37.39

6

COVER,OIL PUMP NO.1

16430-28H00

$49.73

7

PIN (4X13.8)

04221-04089

$1.10

8

PLATE,OIL PUMP NO.1

16432-35G10

$8.73

9

VALVE ASSY, OIL RELIEF

16440-28H00

$83.62

10

O RING (D:1.2,ID:4.7)

09280-05007

$2.08

11

COVER,OIL PUMP NO.2

16450-28H10

$80.73

12

PIN

04211-09149

$1.64

13

.O RING (D:1.9,ID:8.6)

09280-09005

$3.33

14

BOLT

07130-0520B

$3.18

15

BOLT

01547-0625A

$2.01

16

SHAFT,OIL PUMP DRIVEN GEAR (N

16440-35G10

$86.12

17

SHAFT,OIL PUMP NO.2

16443-28H00

$21.88

18

PIN (2.5X11.8)

09261-02008

$1.48

19

STRAINER,OIL PUMP NO.2

16530-28H00

$10.97

20

CIRCLIP

09381-19003

$2.33

21

CAP,ENG OIL FILTER OUTER

16315-35G30

$24.46

22

O-RING (D:2,ID:38.5) This part replaces 09280-39001.

09280-39002

$2.85

23

SPRING

09440-10038

$2.80

24

CAP, ENGINE OIL STRAINER

16316-10H01

$28.77

25

GASKET (16X22X2)

09168-16002

$1.89

26

FILTER, ENGINE OIL

16510-35G00

$9.01

27

STRAINER, ENGINE OIL

16520-10H10

$43.21

28

BOLT

01547-0616A

$2.01

29

BOLT

01547-0640A

$2.31

30

GUIDE,OIL REED VALVE

13158-28H00

$19.93
