2015 Suzuki RM-Z450L5 Crankshaft Diagram

← All diagrams

Find the part on the Crankshaft diagram for your 2015 Suzuki RM-Z450L5, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

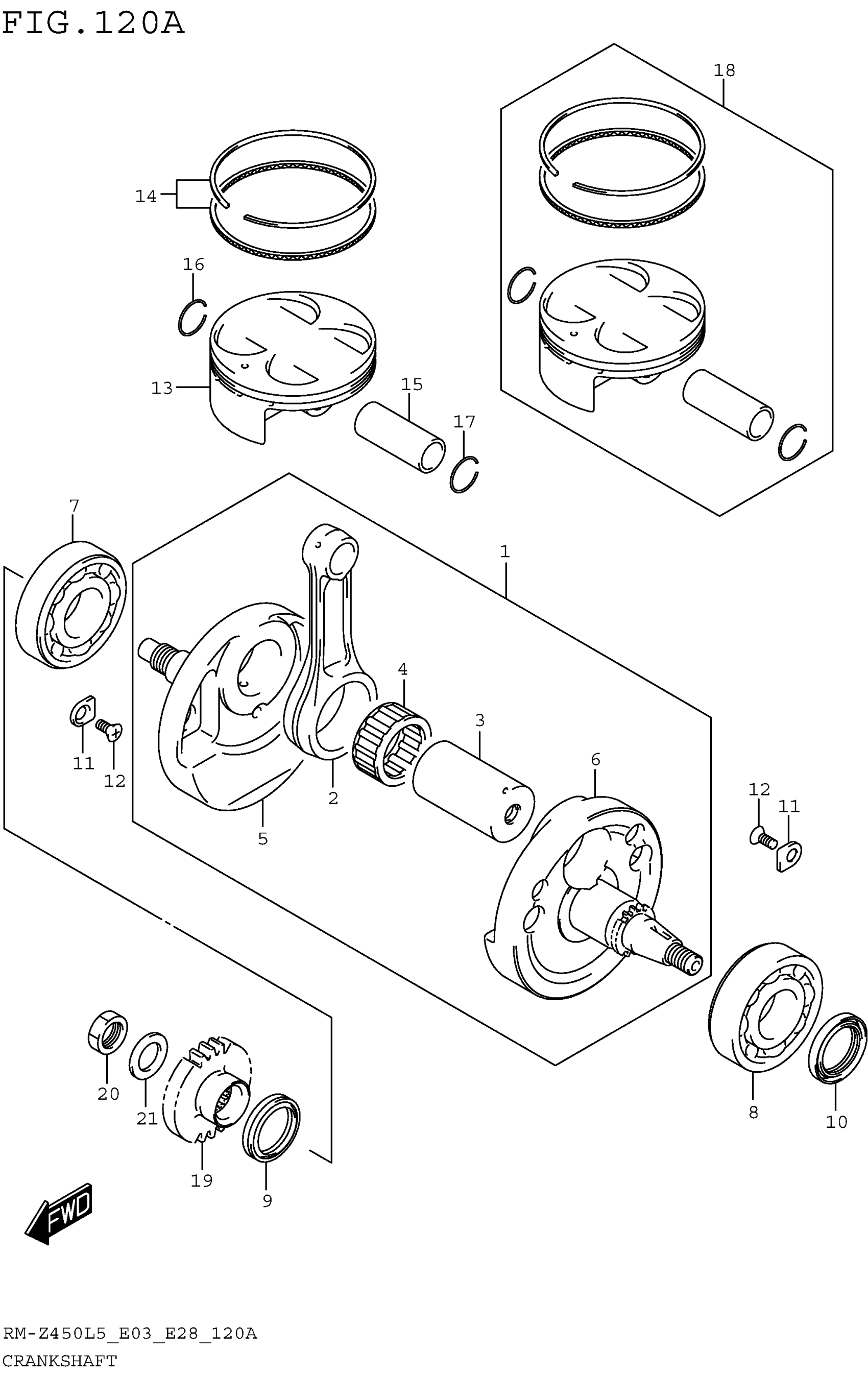

2015 Suzuki RM-Z450L5 Crankshaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKSHAFT ASSY

12200-28H30

1

$644.97

In stock

2

CONNROD

12161-35G10-0B0

1

$207.65

In stock

3

.PIN,CRANK

12210-28H00

1

$102.26

In stock

4

BEARING (34X42X20)

09263-34014-0B0

1

$152.90

In stock

5

CRANKSHAFT, RH

12220-28H20

1
Out of stock

6

CRANKSHAFT, LH

12261-28H20

1
Out of stock

7

1

$96.62

In stock

8

1

$144.80

In stock

10

1

$19.95

In stock

11

RETAINER

24741-20A00

4

$2.92

In stock

12

SCREW (6X12)

09126-06011

4
Out of stock

13

PISTON

12111-28H30-0F0

1

$175.22

In stock

14

RING SET,PISTON

12140-28820

1

$53.15

In stock

15

PIN,PISTON

12151-28H00

1

$41.98

In stock

16

RING,SNAP

09381-19001

1

$2.48

In stock

17

CIRCLIP

09381-19005

1
Out of stock

18

1

$233.58

In stock

19

GEAR,PRIMARY DRIVE (NT:24)

21111-28H00

1
Out of stock

20

NUT

09140-16037

1

$15.53

In stock

21

WASHER

09164-16002

1
Out of stock
