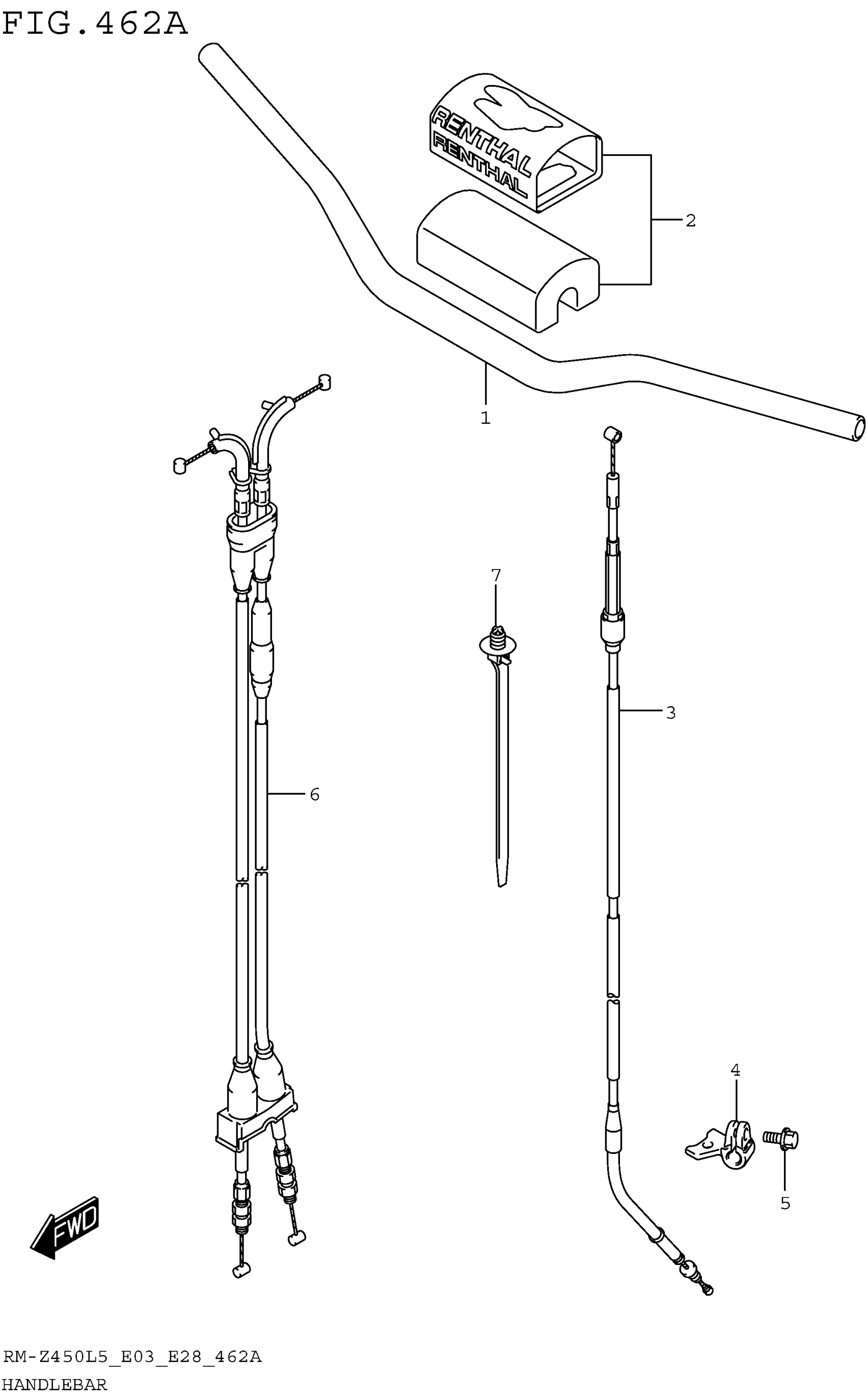

Suzuki RM-Z450L5 (2015) HANDLEBAR Diagram

#

Description

Price

1

HANDLEBAR This part replaces 56111-35G10.

56111-35G11

$249.60

2

PAD SET, HANDLEBAR

56170-35G00

Unavailable

3

CABLE ASSY,CLUT This part replaces 58210-28H00.

58210-28H01

$41.77

4

BRACKET,CLUTCH CABLE

58212-28H00

$103.33

5

BOLT

01547-0612A

$2.03

6

CABLE SET,THROT This part replaces 58301-28H40.

58301-28H41

$67.27

7

CLAMP (L:154)

09407-17403

$4.91
