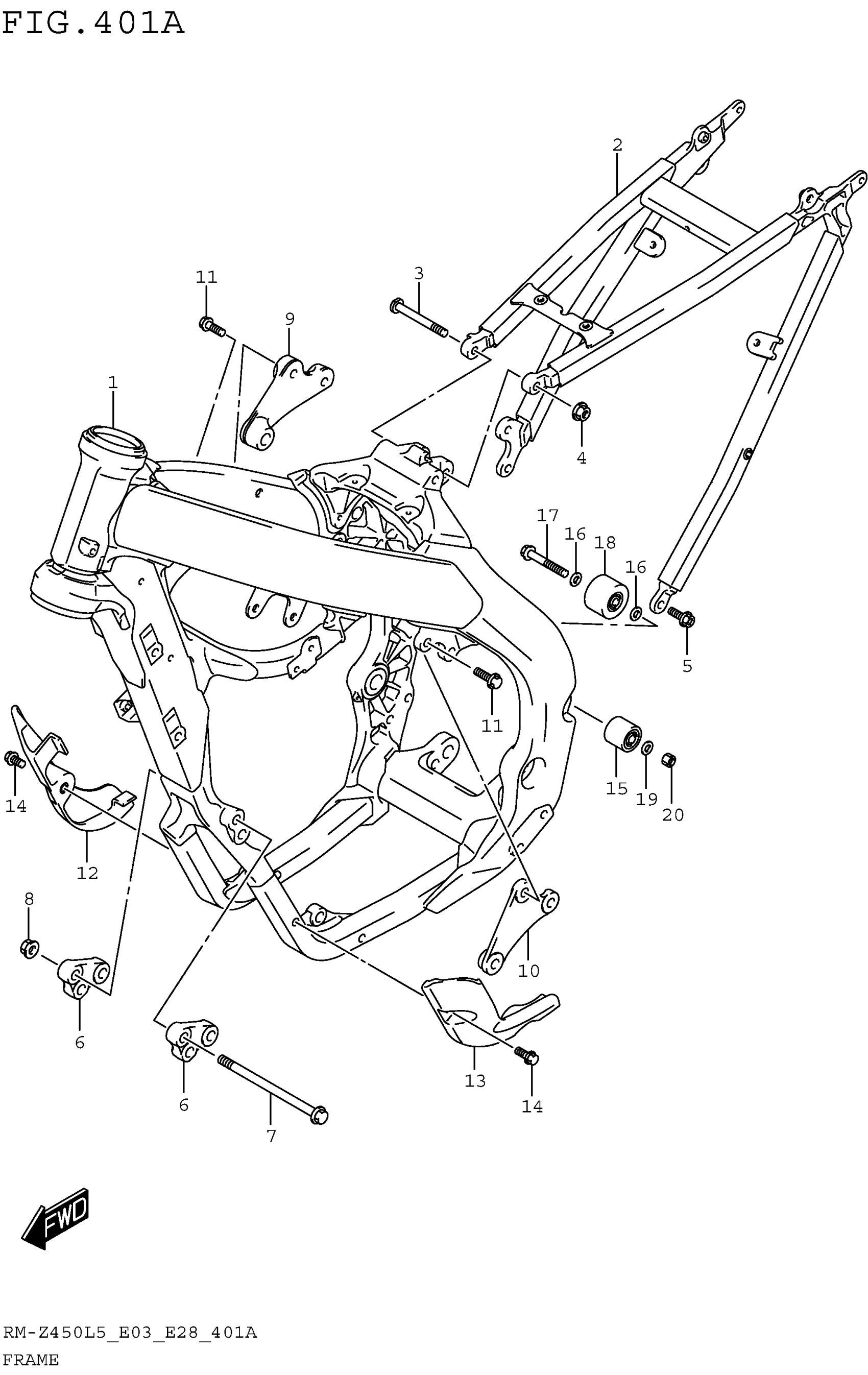

Suzuki RM-Z450L5 (2015) FRAME Diagram

#

Description
Price

1

FRAME

41100-28H40

$3,856.18

2

RAIL, SEAT

41200-28H40

Unavailable

3

BOLT, SEAT RAIL UPPER

41311-28H20

$19.12

4

NUT

09159-08146

$7.22

5

BOLT (8X23)

09103-08506

$5.78

6

BRACKET, ENGINE MOUNT FRONT

41991-28H10

$70.15

7

BOLT (10X135)

09103-10403

$15.83

8

NUT

09159-10122

$7.63

9

BRACKET, ENGINE MOUNT UPPER RH

41930-28H20

Unavailable

10

BRACKET, ENGINE MOUNT UPPER LH

41940-28H30

Unavailable

11

BOLT (8X21)

09103-08404

$3.72

12

PROTECTOR,FRONT,R This part replaces 42520-28H10.

42520-28H11

$20.15

13

PROTECTOR,FRONT,L

42530-28H20

$30.48

14

BOLT (6X25)

09116-06177

$2.50

15

ROLLER, CHAIN

43910-37F00

$70.53

16

SHIM (8X16X1)

09181-08167

$1.96

17

BOLT (8X45)

09103-08207

$2.51

18

ROLLER, CHAIN

43910-37F00

$70.53

19

SHIM (8X12X1)

09181-08111

$1.93

20

NUT

08319-2108A

$2.12
