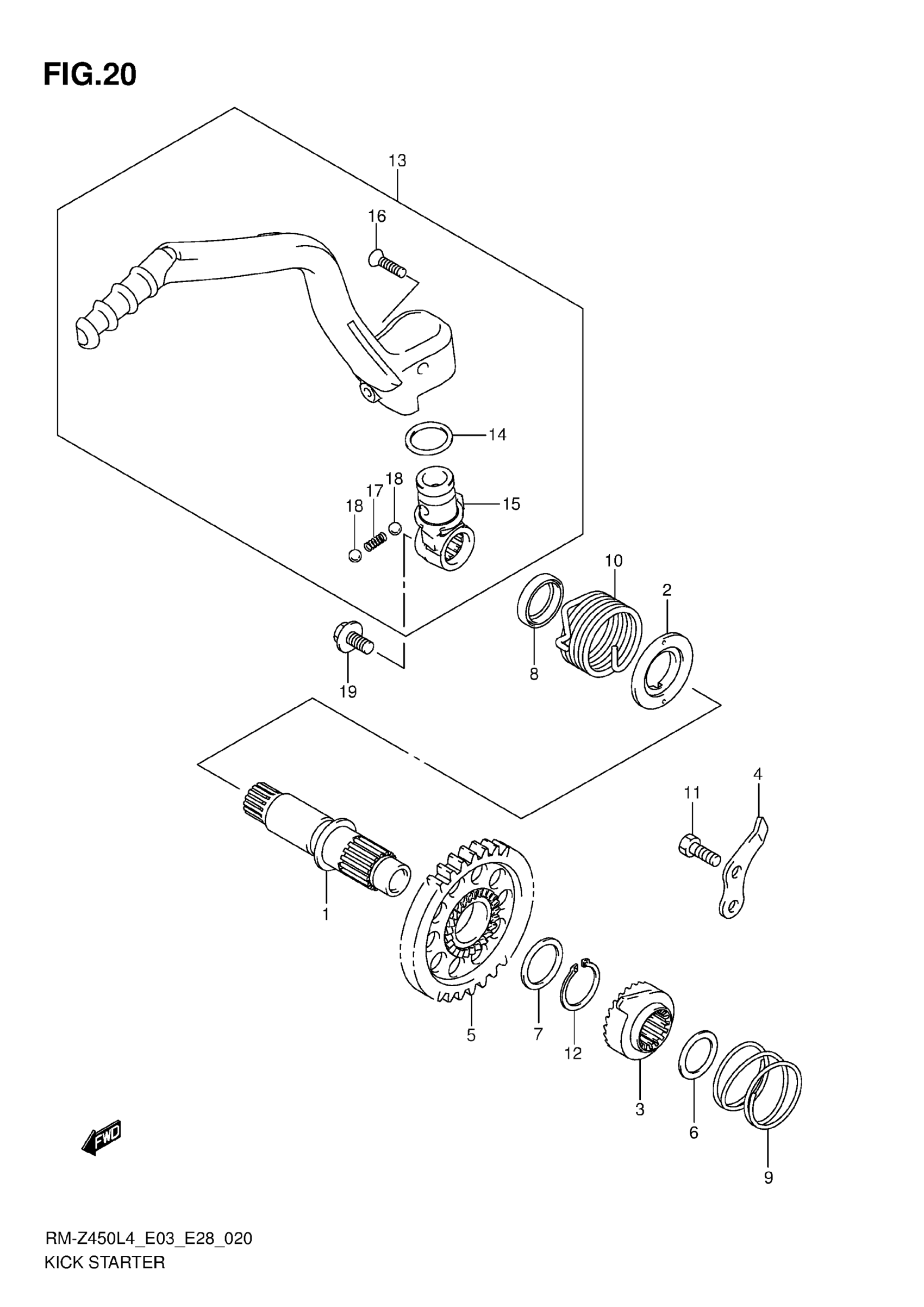

Suzuki RM-Z450L4 (2014) KICK STARTER Diagram

#

Description
Price

1

SHAFT,KICK STARTER

26211-28H00

$114.20

2

GUIDE,KICK STARTER SFT SPRING

26221-35G00

$4.88

3

STARTER,KICK

26231-28H00

$62.48

4

GUIDE,KICK STARTER

26232-28H00

$7.37

5

GEAR, KICK STARTER DRIVE (NT:32)

26240-35G00

$137.80

6

SHIM (17X24X0.5)

09181-17130

$2.96

7

SHIM (20X26X1)

09181-20139

$2.62

8

OIL SEAL (20X27X5)

09283-20031

$5.24

9

SPRING

09440-32002

$2.27

10

SPRING

09448-38007

$6.88

11

BOLT

01500-0612A

$1.78

12

CIRCLIP

08331-3120A

$2.03

13

LEVER ASSY,KICK This part replaces 26300-28H20.

26300-28H21

$177.33

14

.O-RING This part replaces 26313-28E20.

26313-28E21

$2.17

15

.JOINT,KICK STARTER LEVER

26331-28H20

$55.23

16

SCREW (6X27.5)

09127-06016

$2.96

17

SPRING

09440-05031

$1.49

18

BALL

06111-07004

$1.49

19

BOLT (8X14)

09103-08522

$4.17
