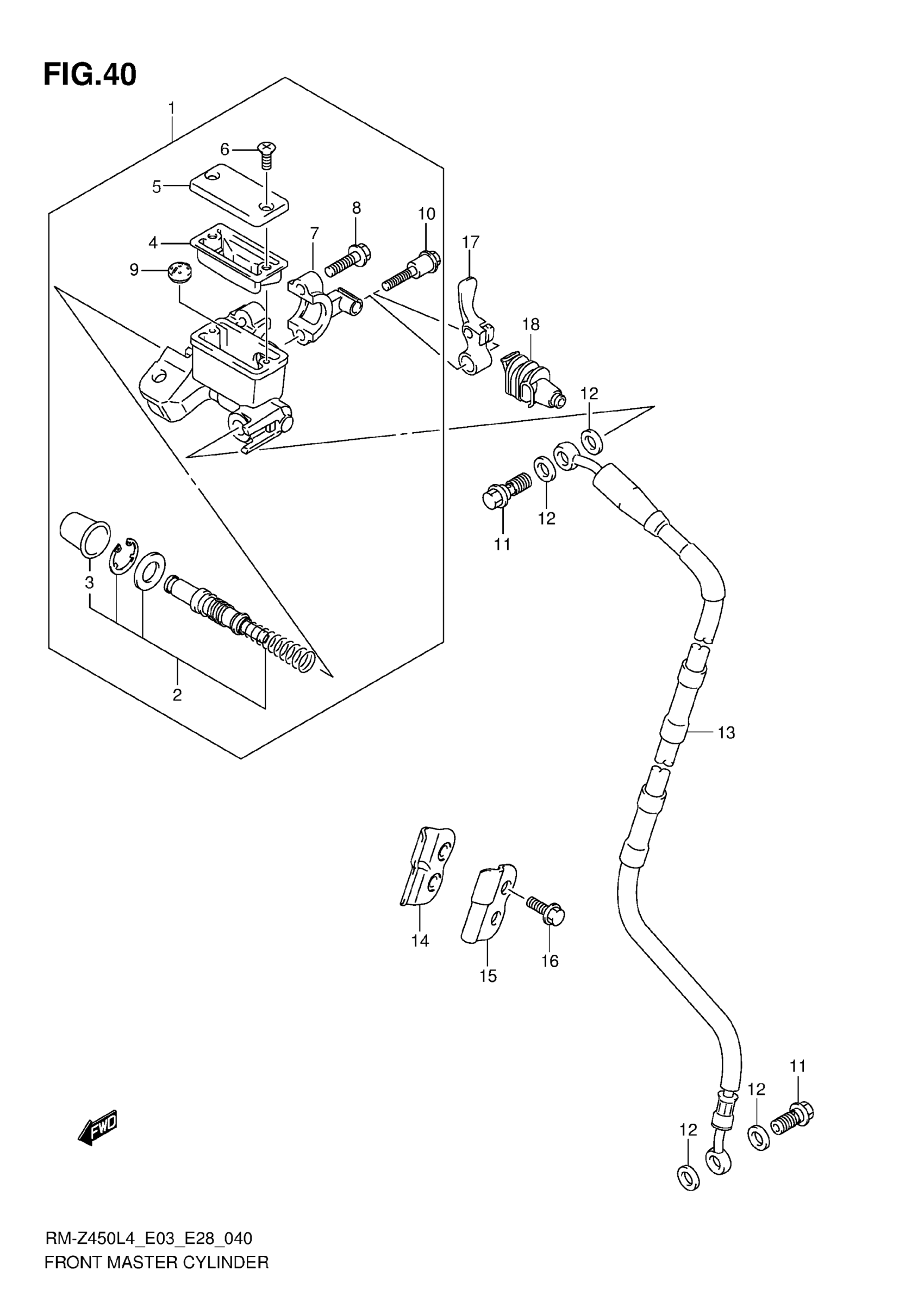

Suzuki RM-Z450L4 (2014) FRONT MASTER CYLINDER Diagram

#

Description
Price

1

CYLINDER ASSY, FRONT MASTER

59600-28H00

$235.37

2

PISTON & CUP SET

59600-37810

$58.68

3

BOOT

59666-44300

$5.80

4

DIAPHRAGM

59667-14500

$10.12

5

CAP

59669-27C01

$23.32

6

SCREW

69689-49300

$1.91

7

HOLDER, MASTER CYLINDER

59671-28H00

$34.07

8

BOLT

59675-06F10

$4.65

9

SEPARATOR

59748-36E00

$9.37

10

BOLT

57517-28H00

$11.95

11

UNION

09360-10065

$8.92

12

WASHER (10X15X1.5)

09161-10009

$1.84

13

HOSE,FR BRAKE This part replaces 59480-28H00.

59480-28H01

$201.65

14

CLAMP, FRONT BRAKE HOSE INNER

59260-28H20

$24.31

15

CLAMP,FR BRAKE HOSE

59271-28H10

$10.96

16

BOLT (6X16)

09103-06234

$2.35

17

LEVER, MASTER CYLINDER HOLDER

57153-28H01

$13.43

18

COVER, HOLDER LEVER

57516-28H10

$10.42
