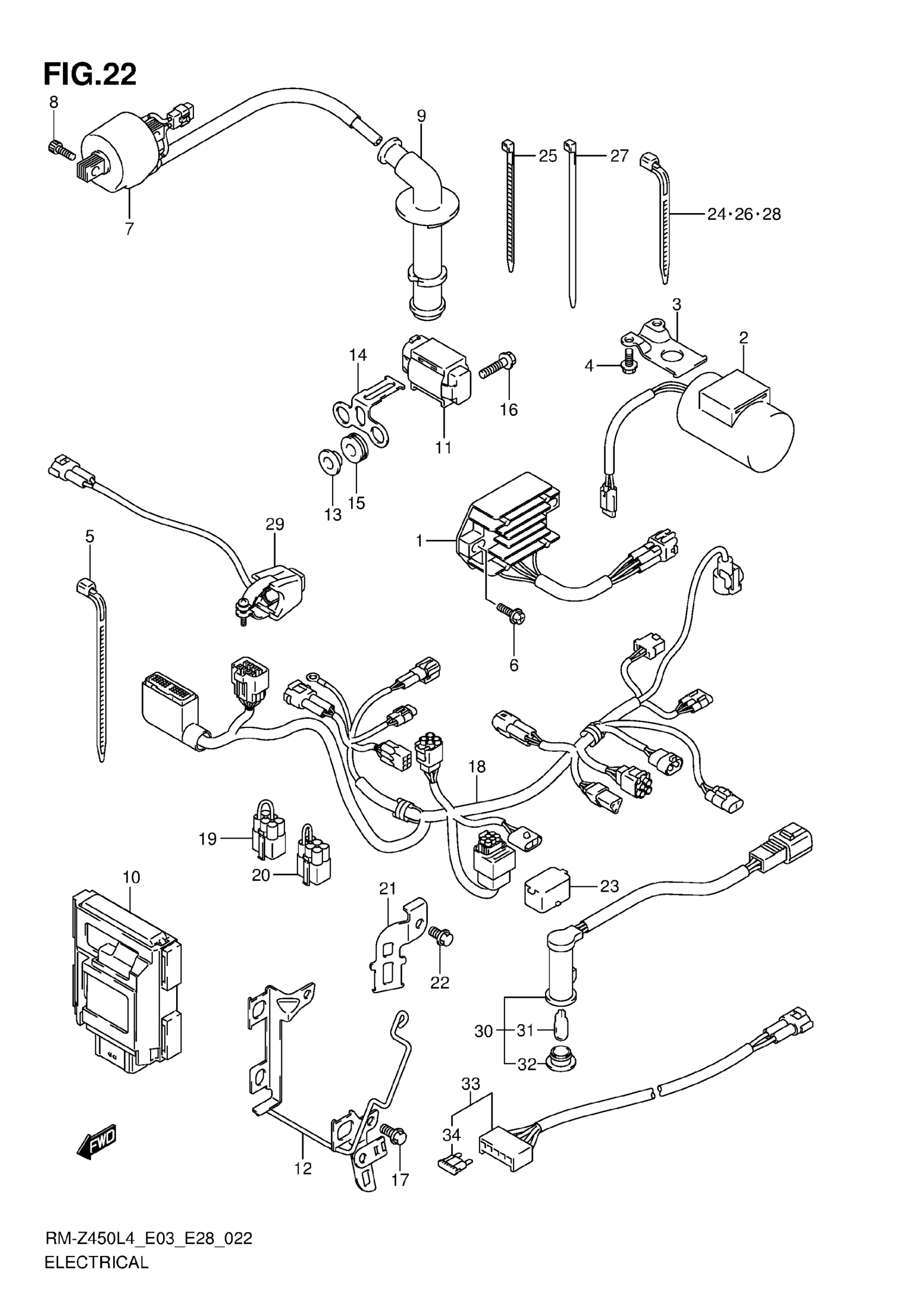

Suzuki RM-Z450L4 (2014) ELECTRICAL Diagram

#

Description
Price

1

RECTIFIER ASSY

32800-28H00

$235.75

2

CONDENSER ASSY

33640-28H00

$157.50

3

BRACKET, CONDENSER

33641-28H00

Unavailable

4

BOLT (6X10)

09103-06188

$2.90

5

CLAMP (L:235)

09407-25401

$4.66

6

SCREW

02162-0620C

$1.71

7

COIL ASSY, IGNITION

33410-28H00

$98.96

8

BOLT

07130-0620A

$2.50

9

CAP ASSY,SPARK PLUG

33510-28H00

$59.80

10

CONTROL UNIT, FI

32920-28HC0

Unavailable

11

SENSOR ASSY,FUEL CUT

33960-06G10

$89.92

12

BRACKET, FI CONTROL UNIT

32931-28H00

$39.47

13

SPACER (6.2X8.4X10.9)

09180-06331

$4.77

14

BRACKET, FUEL CUT SENSOR

33961-28HA0

$6.75

15

CUSHION

09320-08501

$3.23

16

BOLT (6X30)

09116-06103

$3.15

17

BOLT

01547-0612A

$2.03

18

HARNESS, WIRING

36610-28H40

$325.30

19

WIRE,SHORT This part replaces 36852-28H00.

36852-28H01

$13.57

20

WIRE,SHORT This part replaces 36852-49H00.

36852-49H01

$11.48

21

BRACKET, COUPLER

36672-28H10

$8.40

22

BOLT

01547-0610A

$2.45

23

CAP,TS This part replaces 36654-46H00.

36654-46H01

$12.60

24

CLAMP (L:95)

09407-11401

$2.63

25

CLAMP (L:95)

09407-10403

Unavailable

26

CLAMP (L:125)

09407-14403

$2.26

27

CLAMP (L:145)

09407-14407

$3.57

28

CLAMP (L:165)

09407-18402

$2.19

29

SWITCH ASSY,ENGINE STOP

37820-36E00

$25.46

30

LAMP ASSY, FI INDICATOR | OPT

36380-28H00

$77.55

31

BULB (12V,3.4W) | OPT

09471-12028

$1.99

32

LENS (RED) | OPT

36321-28H00

$10.58

33

WIRE, BATTERY | OPT

36890-28H00

$47.33

34

FUSE (10A) | OPT

09481-10101

$2.07
