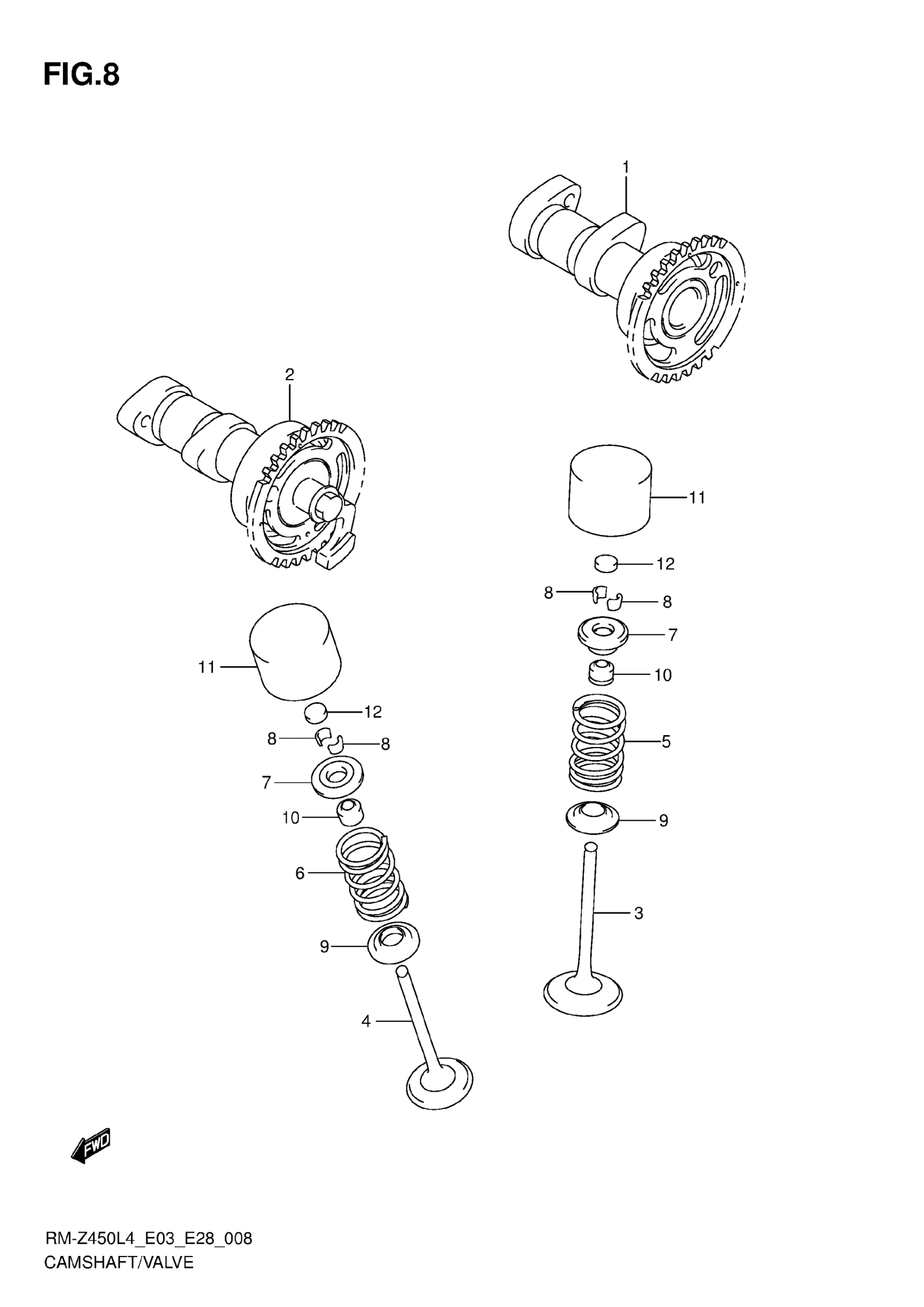

Suzuki RM-Z450L4 (2014) CAMSHAFT/VALVE Diagram

#

Description
Price

1

CAM SHAFT, INTAKE (NT:32)

12710-28H50

$293.90

2

CAM SHAFT, EXHAUST (NT:32)

12720-28H20

$329.80

3

VALVE,INTAKE

12911-28H00

$88.08

4

VALVE,EXHAUST

12912-28H00

$97.68

5

SPRING,VALVE

12921-28H00

$16.93

6

SPRING,VALVE

12921-28H00

$16.93

7

RETAINER,VALVE SPRING

12931-02F10

$15.16

8

COTTER, VALVE

12932-24400

$1.94

9

SEAT,VALVE SPRING

12933-38400

$5.44

10

OIL SEAL (5.5X11X8.2)

09289-05015

$6.70

11

TAPPET This part replaces 12891-02F00.

12891-02F10

$52.61

12

SHIM,TAPPET (T:1.50)

12892-35G00-150

$11.83

12

SHIM,TAPPET (T:1.52)

12892-35G00-152

Unavailable

12

SHIM,TAPPET (T:1.55)

12892-35G00-155

Unavailable

12

SHIM,TAPPET (T:1.58)

12892-35G00-158

Unavailable

12

SHIM,TAPPET (T:1.60)

12892-35G00-160

Unavailable

12

SHIM,TAPPET (T:1.62)

12892-35G00-162

Unavailable

12

SHIM,TAPPET (T:1.65)

12892-35G00-165

$11.83

12

SHIM,TAPPET (T:1.68)

12892-35G00-168

Unavailable

12

SHIM,TAPPET (T:1.70)

12892-35G00-170

Unavailable

12

SHIM,TAPPET (T:1.72)

12892-35G00-172

Unavailable

12

SHIM,TAPPET (T:1.75)

12892-35G00-175

Unavailable

12

SHIM,TAPPET (T:1.78)

12892-35G00-178

Unavailable

12

SHIM,TAPPET (T:1.80)

12892-35G00-180

Unavailable

12

SHIM,TAPPET (T:1.82)

12892-35G00-182

Unavailable

12

SHIM,TAPPET (T:1.85)

12892-35G00-185

Unavailable

12

SHIM,TAPPET (T:1.88)

12892-35G00-188

Unavailable

12

SHIM,TAPPET (T:1.90)

12892-35G00-190

Unavailable

12

SHIM,TAPPET (T:1.92)

12892-35G00-192

Unavailable

12

SHIM,TAPPET (T:1.95)

12892-35G00-195

Unavailable

12

SHIM,TAPPET (T:1.98)

12892-35G00-198

Unavailable

12

SHIM,TAPPET (T:2.00)

12892-35G00-200

Unavailable

12

SHIM,TAPPET (T:2.02)

12892-35G00-202

Unavailable

12

SHIM,TAPPET (T:2.05)

12892-35G00-205

Unavailable

12

SHIM,TAPPET (T:2.08)

12892-35G00-208

Unavailable

12

SHIM,TAPPET (T:2.10)

12892-35G00-210

$11.83

12

SHIM,TAPPET (T:2.12)

12892-35G00-212

Unavailable

12

SHIM,TAPPET (T:2.15)

12892-35G00-215

Unavailable

12

SHIM,TAPPET (T:2.18)

12892-35G00-218

Unavailable

12

SHIM,TAPPET (T:2.20)

12892-35G00-220

Unavailable

12

SHIM,TAPPET (T:2.22)

12892-35G00-222

Unavailable

12

SHIM,TAPPET (T:2.25)

12892-35G00-225

$11.83

12

SHIM,TAPPET (T:2.28)

12892-35G00-228

Unavailable

12

SHIM, TAPPET (T:2.30)

12892-41C00-230

$11.38

12

SHIM, TAPPET (T:2.32)

12892-41C00-232

Unavailable

12

SHIM, TAPPET (T:2.35)

12892-41C00-235

$11.83

12

SHIM, TAPPET (T:2.38)

12892-41C00-238

$11.83

12

SHIM, TAPPET (T:2.40)

12892-41C00-240

$11.83

12

SHIM, TAPPET (T:2.42)

12892-41C00-242

Unavailable

12

SHIM, TAPPET (T:2.45)

12892-41C00-245

$11.83

12

SHIM, TAPPET (T:2.48)

12892-41C00-248

Unavailable

12

SHIM, TAPPET (T:2.50)

12892-41C00-250

$11.83

12

SHIM, TAPPET (T:2.52)

12892-41C00-252

Unavailable

12

SHIM, TAPPET (T:2.55)

12892-41C00-255

$11.83

12

SHIM, TAPPET (T:2.58)

12892-41C00-258

Unavailable

12

SHIM, TAPPET (T:2.60)

12892-41C00-260

$11.38

12

SHIM, TAPPET (T:2.62)

12892-41C00-262

Unavailable

12

SHIM, TAPPET (T:2.65)

12892-41C00-265

$11.38

12

SHIM, TAPPET (T:2.68)

12892-41C00-268

Unavailable

12

SHIM, TAPPET (T:2.70)

12892-41C00-270

$11.38

12

SHIM, TAPPET (T:2.72)

12892-41C00-272

Unavailable

12

SHIM, TAPPET (T:2.75)

12892-41C00-275

$9.69

12

SHIM, TAPPET (T:2.78)

12892-41C00-278

Unavailable

12

SHIM, TAPPET (T:2.80)

12892-41C00-280

$11.38

12

SHIM, TAPPET (T:2.82)

12892-41C00-282

Unavailable

12

SHIM, TAPPET (T:2.85)

12892-41C00-285

$11.83

12

SHIM, TAPPET (T:2.88)

12892-41C00-288

Unavailable

12

SHIM, TAPPET (T:2.90)

12892-41C00-290

$11.38

12

SHIM, TAPPET (T:2.92)

12892-41C00-292

Unavailable

12

SHIM, TAPPET (T:2.95)

12892-41C00-295

$11.83

12

SHIM, TAPPET (T:2.98)

12892-41C00-298

Unavailable

12

SHIM, TAPPET (T:3.00)

12892-41C00-300

$11.60

13

SHIM SET,TAPPET (5PCS. EACH) | OPT NOT ILLUSTRATED

12800-35820

Unavailable

14

CASE, TAPPET SHIM | OPT NOT ILLUSTRATED

99000-69471

Unavailable
