Description

Price

1

WHEEL ASSY,REAR This part replaces 64100-28H00.

64100-28H01

$895.63

2

.HUB,REAR This part replaces 64111-35G20.

64111-35G30

$273.98

3

.SPACER,RR HUB BEARING

64731-35G01

$39.55

4

.BEARING (25X42X9) This part replaces 09262-25139.

09262-25192

$46.28

5

.SEAL,OIL (32X43X7) This part replaces 09283-32045.

09283-32049

$12.32

6

CIRCLIP

08331-41429

$2.41

7

RIM, REAR WHEEL (19X2.15)

65311-35G00

Unavailable

8

.SPOKE,RR WHEEL INNER

65321-35G10

$4.79

9

.SPOKE,RR WHEEL OUTER

65322-35G10

$4.97

10

.NIPPLE,RR WHEEL

65325-35G10

$4.79

11

DISC,RR BRAKE

69211-28H10

$211.15

12

SCREW (8X15)

09139-08022

$4.45

13

AXLE,RR

64711-35G10

$99.88

14

SPACER

64751-28H00

$35.98

15

WASHER (22X35X2)

09160-22081

$3.04

16

NUT

09159-22007

$19.20

17

SPROCKET,RR (NT:50)

64511-36E00

$126.60

17

SPROCKET,RR (NT:48) | OPT

64511-37E00

$175.05

17

SPROCKET, REAR (NT:51) | OPT

64511-40261

$155.22

17

SPROCKET,RR (NT:49) | OPT

64511-28E00

$120.85

18

BOLT (8X28)

09120-08017

$2.62

19

NUT

09159-08133

$5.30

20

WASHER (8.5X16X1.2)

09160-08082

$1.61

21

TIRE, REAR (110/90-19 62M) | BRIDGESTONE

65110-28H00

Unavailable

22

TUBE ASSY,WHEEL INNER

65200-35G01

$75.40

23

PROTECTOR,WHL INR TUBE

65261-35G01

$7.53

24

STOPPER, BEAD (2.15)

65270-28E00

$58.75

25

WASHER

08322-0108A

$1.92

26

NUT

08310-0008A

$1.84

27

COVER, REAR DISC

69231-37F12

$14.65

28

BOLT (6X12)

09116-06197

$2.71

29

COVER,RR AXLE SPACER

64752-28H00

$7.93

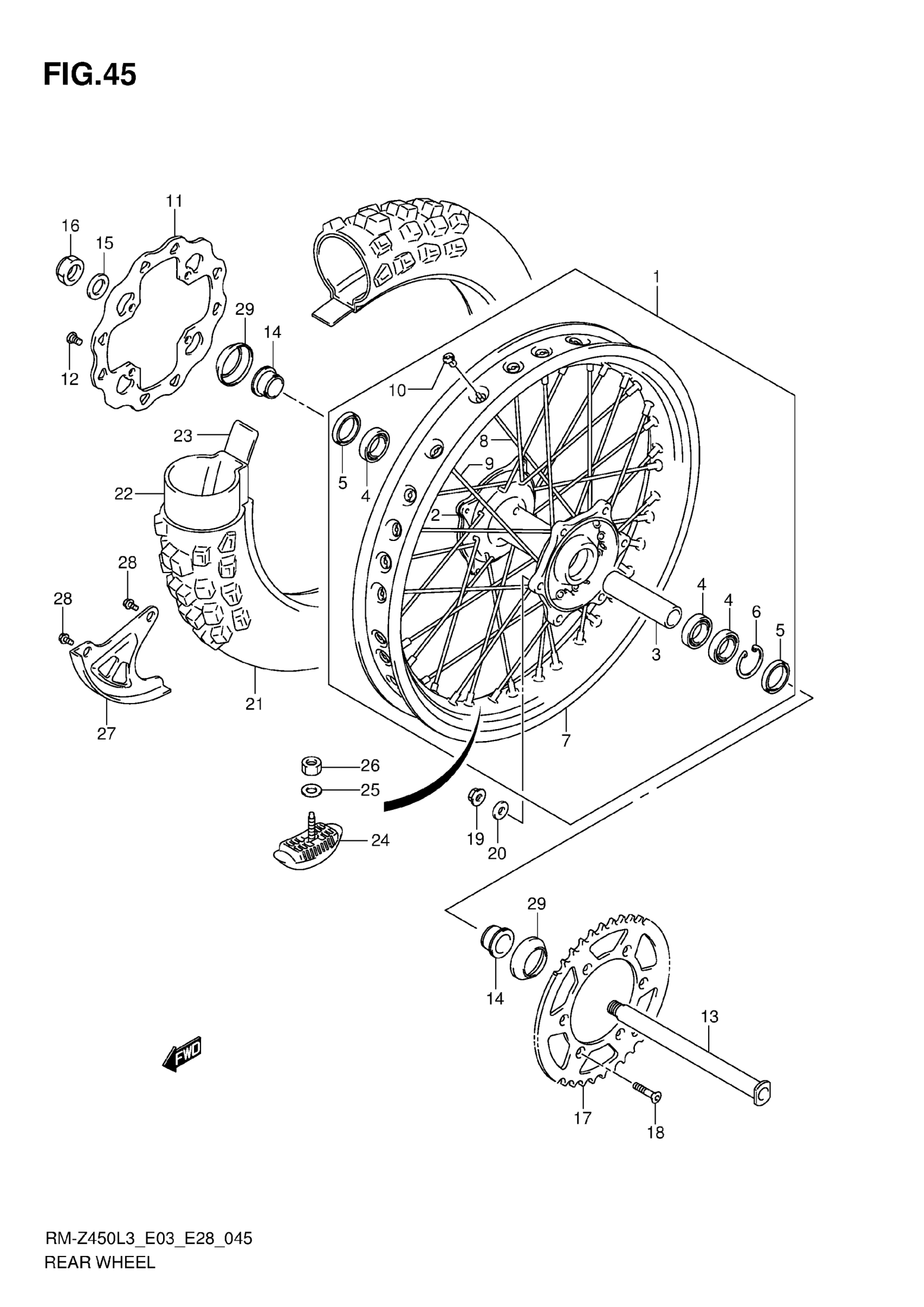

Suzuki RM-Z450L3 (2013) REAR WHEEL Diagram
