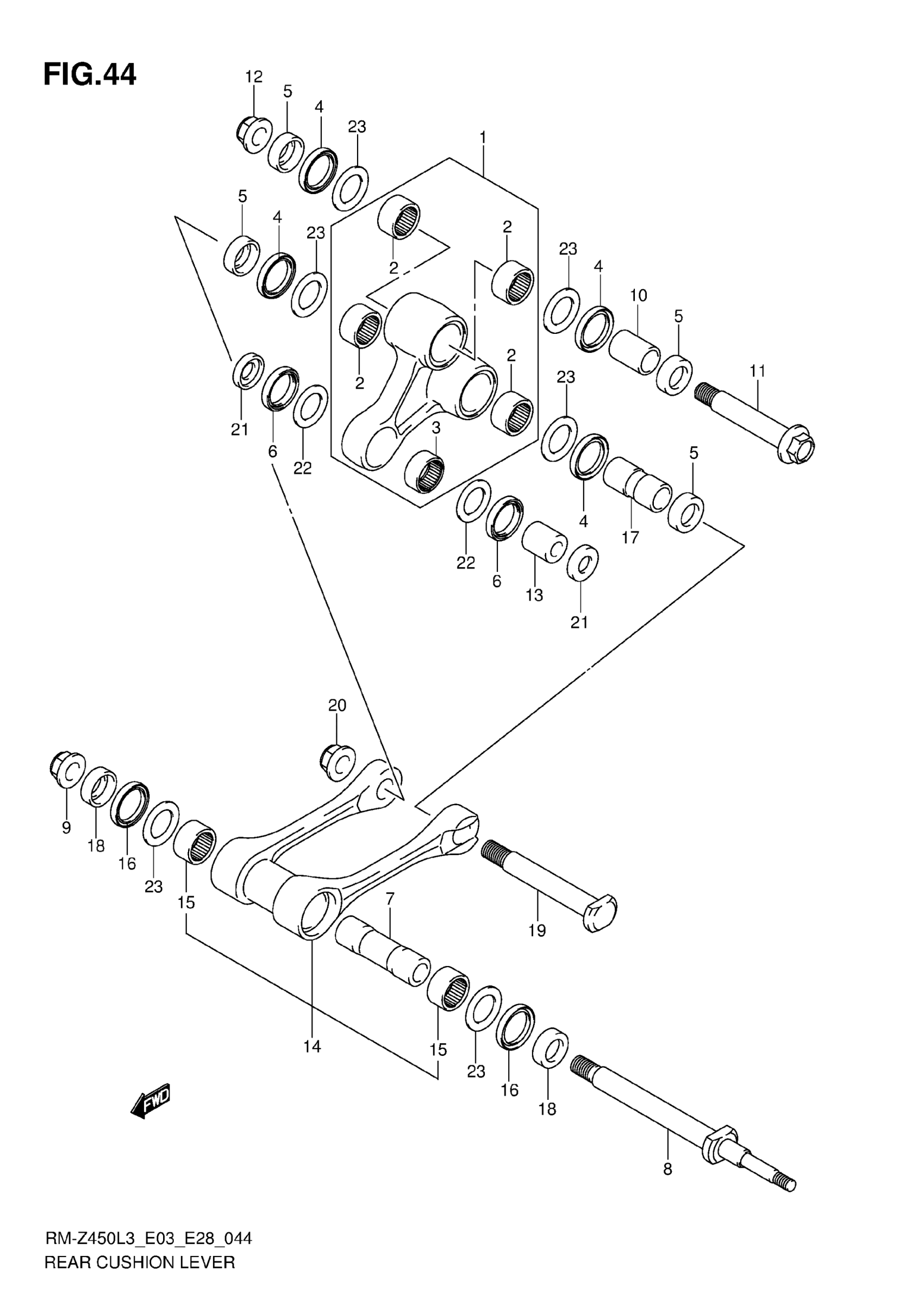

Suzuki RM-Z450L3 (2013) REAR CUSHION LEVER Diagram

#

Description
Price

1

LEVER SET, REAR CUSHION

62600-28880

$514.73

2

BEARING (20X26X14)

09263-20090

$14.85

3

BEARING (16X22X12)

09263-16033

$18.28

4

SEAL,OIL (24X31X5)

09285-24001

$7.85

5

SPACER, LEVER SIDE

62647-28H20

$23.68

6

SEAL,OIL (22X28X4)

09284-22003

$9.33

7

SPACER, REAR CUSHION ROD

62317-28H20

$42.15

8

BOLT, REAR CUSHION ROD

62621-28H10

$66.07

9

NUT

09159-12056

$6.65

10

SPACER, LEVER UPPER

62648-28H20

$24.58

11

BOLT, LEVER UPPER

62658-28H00

$19.42

12

NUT

09159-12056

$6.65

13

SPACER, LEVER FRONT

62684-28H10

$27.67

14

ROD SET, REAR CUSHION

62601-28830

$375.97

15

BEARING (20X26X14)

09263-20090

$14.85

16

SEAL,OIL (24X31X5)

09285-24001

$7.85

17

SPACER,RR CUSHION LEVER LWR

62646-28H20

$31.33

18

SPACER, ROD SIDE

62647-28H20

$23.68

19

BOLT,RR CUSHION LEVER LWR

62657-28H00

$33.75

20

NUT

09159-12056

$6.65

21

SPACER, LEVER FRONT SIDE

62686-28H10

$27.67

22

SHIM (16X28X0.5)

09181-16214

$2.79

23

WASHER

08211-20301

$2.97
