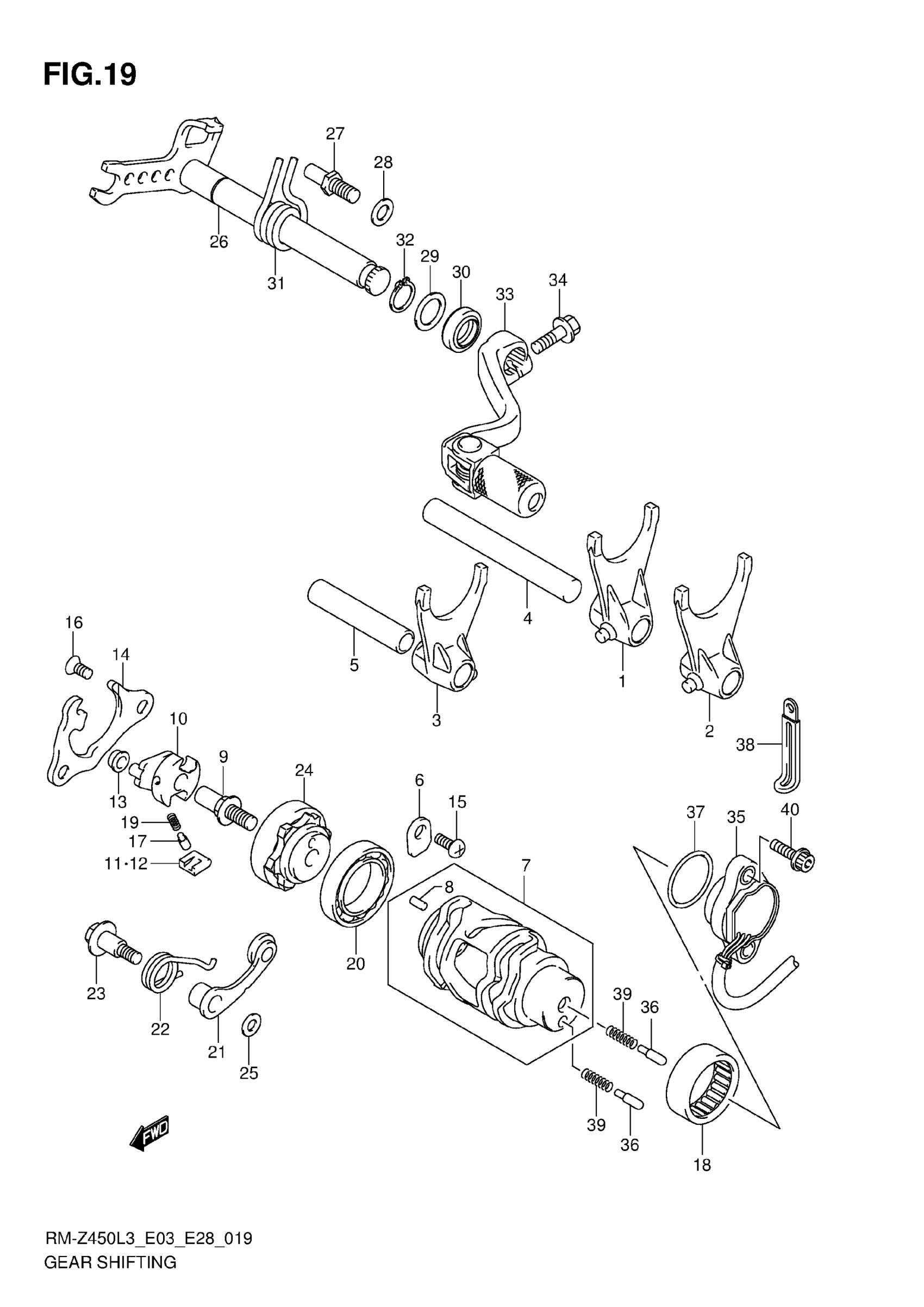

Suzuki RM-Z450L3 (2013) GEAR SHIFTING Diagram

#

Description
Price

1

FORK,GEAR SHIFT NO.1

25211-28H00

$86.50

2

FORK,GEAR SHIFT NO.2

25221-28H00

$89.43

3

FORK,GEAR SHIFT NO.3

25231-28H00

$88.17

4

SHAFT, GEAR SHIFT FORK NO.1

25411-28H00

Unavailable

5

SHAFT, GEAR SHIFT FORK NO.2

25421-27C01

$18.43

6

RETAINER, SHIFT CAM BEARING

24741-21A00

$2.81

7

CAM,GEAR SHIFT This part replaces 25310-28H10.

25310-28H21

$141.10

8

PIN (4X13.8)

04221-04089

$1.49

9

PIN, SHIFT CAM DRIVEN GEAR

25313-37F00

$14.77

10

SHIFTER, GEAR SHIFT CAM

25322-28H00

$64.68

11

PAWL, GEAR SHIFT NO.1

25323-34201

$7.22

12

PAWL, GEAR SHIFT NO.2

25324-34201

$7.22

13

ROLLER,GEAR SHIFT CAM SHIFTER

25325-28H00

$12.40

14

LIFTER,GEAR SHIFT PAWL

25331-28H00

$23.47

15

SCREW (6X12)

09125-06122

$2.44

16

SCREW (6X12)

09126-06011

$2.03

17

PIN

09209-05023

$2.61

18

BEARING (25X32X12)

09263-25018

$21.39

19

SPRING

09440-04003

$1.54

20

BEARING

08140-68050

$60.33

21

STOPPER, GEAR SHIFT CAM

25350-28H00

$21.42

22

SPRING, SHIFT CAM STOPPER

25355-28H10

Unavailable

23

BOLT,SHIFT CAM STOPPER

25357-28H00

$7.85

24

PLATE,GEAR SHIFT CAM STOPPER This part replaces 25381-49H00.

25381-49H10

$45.50

25

WASHER

08211-06121

$1.54

26

SHAFT,GEAR SHIFT This part replaces 25510-28H01.

25510-28H10

$87.45

27

STOPPER, GEAR SHIFT ARM

25671-10H00

$5.98

28

SHIM (8.8X14X1)

09181-08139

$1.91

29

SHIM (14X20X1)

09181-14139

$2.60

30

SEAL, SHIFT SHAFT (14X22X6) This part replaces 09283-14005.

09283-14006

$6.70

31

SPRING

09444-20011

$7.12

32

CIRCLIP

08331-3114A

$1.91

33

LEVER ASSY,GEAR SHIFT

25600-28H01

$94.40

34

BOLT

01547-0620A

$2.03

35

BASE ASSY,GEAR SHIFT TERM

37730-49H00

$125.38

36

PIN (5X15.5)

09209-05011

$2.20

37

O RING (D:2.4,ID:26.2)

09280-26005

$2.30

38

CLAMP (L:45)

09404-06429

$1.83

39

SPRING

09440-04010

$1.54

40

BOLT

07120-0516A

$2.28
