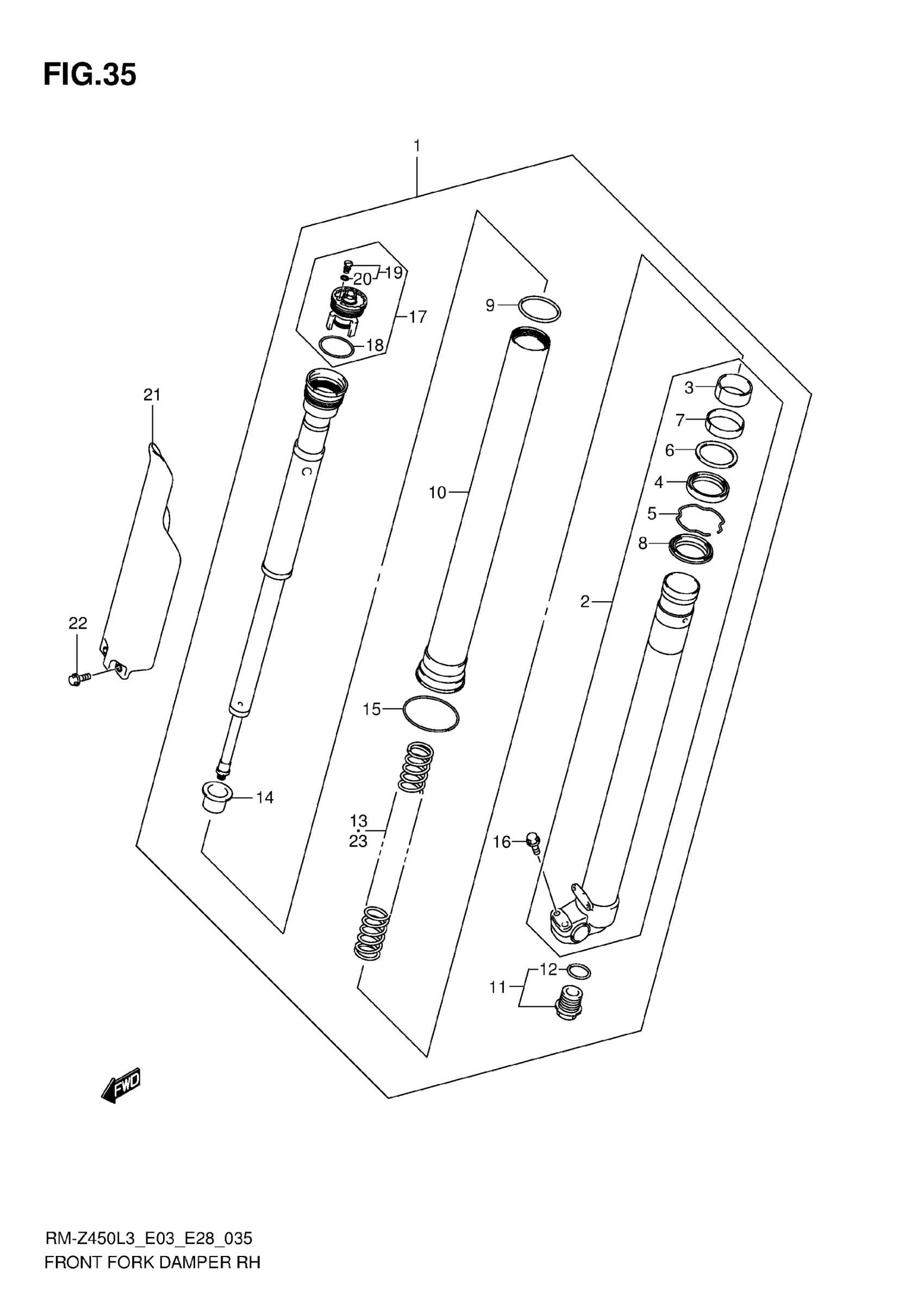

Suzuki RM-Z450L3 (2013) FRONT FORK DAMPER RH Diagram

#

Description
Price

1

DAMPER ASSY, FRONT FORK RH

51103-28H30

Unavailable

2

TUBE, INNER RH

51110-28H30

$438.12

3

BUSH, SLIDE

51121-28H30

$9.13

4

SEAL, OIL

51153-28H30

$16.25

5

RING, OIL SEAL STOPPER

51156-28H30

$6.27

6

SPACER, SEAL

51158-28H30

$3.50

7

BUSH, GUIDE

51167-28H30

$10.00

8

SEAL, DUST

51173-28H30

$16.25

9

..O-RING

51118-28H30

$4.85

10

TUBE, OUTER

51130-28H30

Unavailable

11

BOLT, CENTER

51140-28H30

$119.37

12

O RING

62131-27C40

$4.82

13

SPRING, FRONT

51171-28H60

Unavailable

14

GUIDE SPRING

51182-28H30

Unavailable

15

STOPPER RING

51211-37FC0

$10.18

16

BOLT

51328-37F80

$7.25

17

BOLT, ADJUSTER

51360-28H30

Unavailable

18

..O-RING,FORK BOLT

51187-01H00

$6.79

19

..BOLT,PLUG

51357-36F20

$14.37

20

...O-RING

51358-28E30

$4.28

21

PROTECTOR, RH

51501-28H21

Unavailable

22

BOLT (6X10)

09111-06098

$2.92

23

SPRING, FRONT (SOFT) | OPT

51171-28H50

Unavailable

23

SPRING, FRONT (HARD) | OPT

51171-28H70

$105.62
