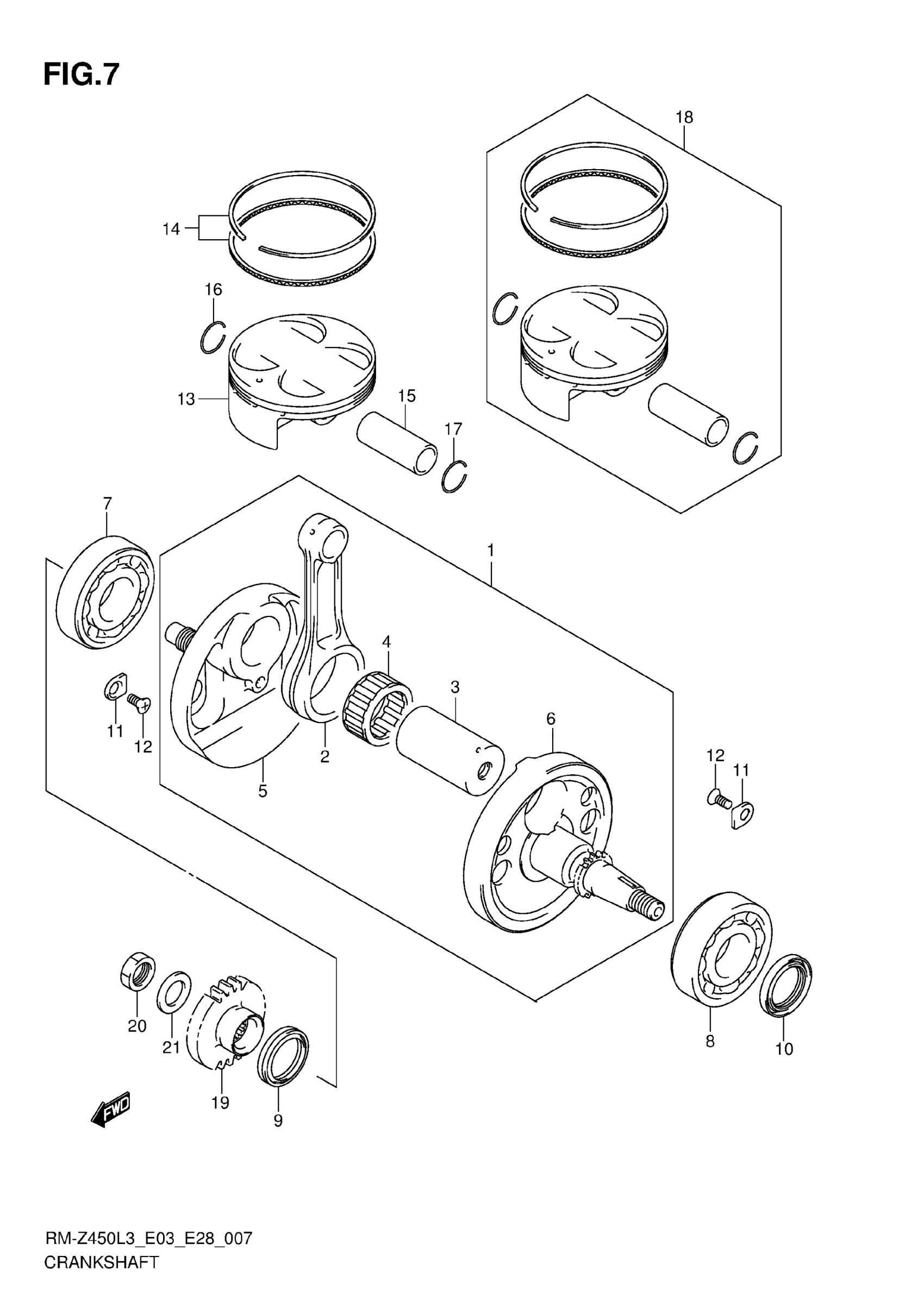

Suzuki RM-Z450L3 (2013) CRANKSHAFT Diagram

#

Description
Price

1

CRANKSHAFT ASSY

12200-28H20

$654.60

2

ROD, CONNECTING

12161-35G10-0B0

$186.60

3

.PIN,CRANK

12210-28H00

$90.60

4

BEARING (34X42X20)

09263-34014-0B0

$136.78

5

CRANKSHAFT, RH

12220-28H10

Unavailable

6

CRANKSHAFT, LH

12261-28H10

Unavailable

7

BEARING (30X72X19) | RH

09262-30115

$88.92

8

BEARING (32X75X20) | LH

09262-32017

$133.23

9

SEAL,OIL (30X40X7) | RH This part replaces 09283-30061.

09283-30076

$15.32

10

SEAL,OIL | LH This part replaces 09283-32037.

09283-32044

$18.71

11

RETAINER

24741-20A00

$2.81

12

SCREW (6X12)

09126-06011

$2.03

13

PISTON This part replaces 12111-28H20-0F0.

12111-28H30-0F0

$157.45

14

RING SET,PISTON

12140-28820

$48.43

15

PIN,PISTON

12151-28H00

$37.20

16

RING,SNAP

09381-19001

$2.29

17

CIRCLIP

09381-19005

$2.19

18

PISTON KIT | OPT This part replaces 12110-28840.

12110-28850

$209.92

19

GEAR,PRIMARY DRIVE (NT:24)

21111-28H00

Unavailable

20

NUT

09140-16037

$14.30

21

WASHER

09164-16002

$3.16
