Description

Price

1

ABSORBER ASSY, RR SHOCK (RED)

62100-28H40-YKS

Unavailable

2

SPRING (K=5.8)

62211-28H00

Unavailable

3

BEARING (16X22X12)

09263-16033

$20.26

4

.SPACER,UPPER BRG,R

62684-36F00

$23.07

5

.SPACER,UPPER BRG,L

62685-36F00

$13.36

6

OIL SEAL (16X22X2.5)

09284-16005

$6.95

7

ROD, PISTON

62120-28H30

Unavailable

8

O RING SET

62150-28H30

$121.77

9

RING, STOPPER

62279-36E80

$6.85

10

ADJUSTER SET

62190-36F00

$116.65

11

SPRING SEAT SET

62220-36F00

$86.03

12

RING, STOPPER

62278-36E00

$8.60

13

..CAP,AIR VALVE

52194-46686

Unavailable

14

BLADDER

62273-36F00

$63.97

15

CAP, CHAMBER

62275-28H30

Unavailable

16

BOLT, PLUG

62130-28H30

Unavailable

17

O RING

62131-28E00

$5.00

18

O RING

51174-36EB0

$5.33

19

BOLT,RR SHOCK ABSORBER UPR

62311-28H00

$9.85

20

NUT

09159-10122

$7.63

21

BOLT,RR SHOCK ABSORBER LWR

62221-37F30

$7.48

22

NUT

09159-10067

$6.11

23

SPRING (SOFT K=5.2) | OPT

62211-10H10

Unavailable

23

SPRING (SOFT K=5.4) | OPT

62211-10H00

Unavailable

23

SPRING (SOFT K=5.6) | OPT

62211-37FM0

Unavailable

23

SPRING (HARD K=5.9) | OPT

62211-35G40

Unavailable

23

SPRING (HARD K=6.0) | OPT

62211-28H30

Unavailable

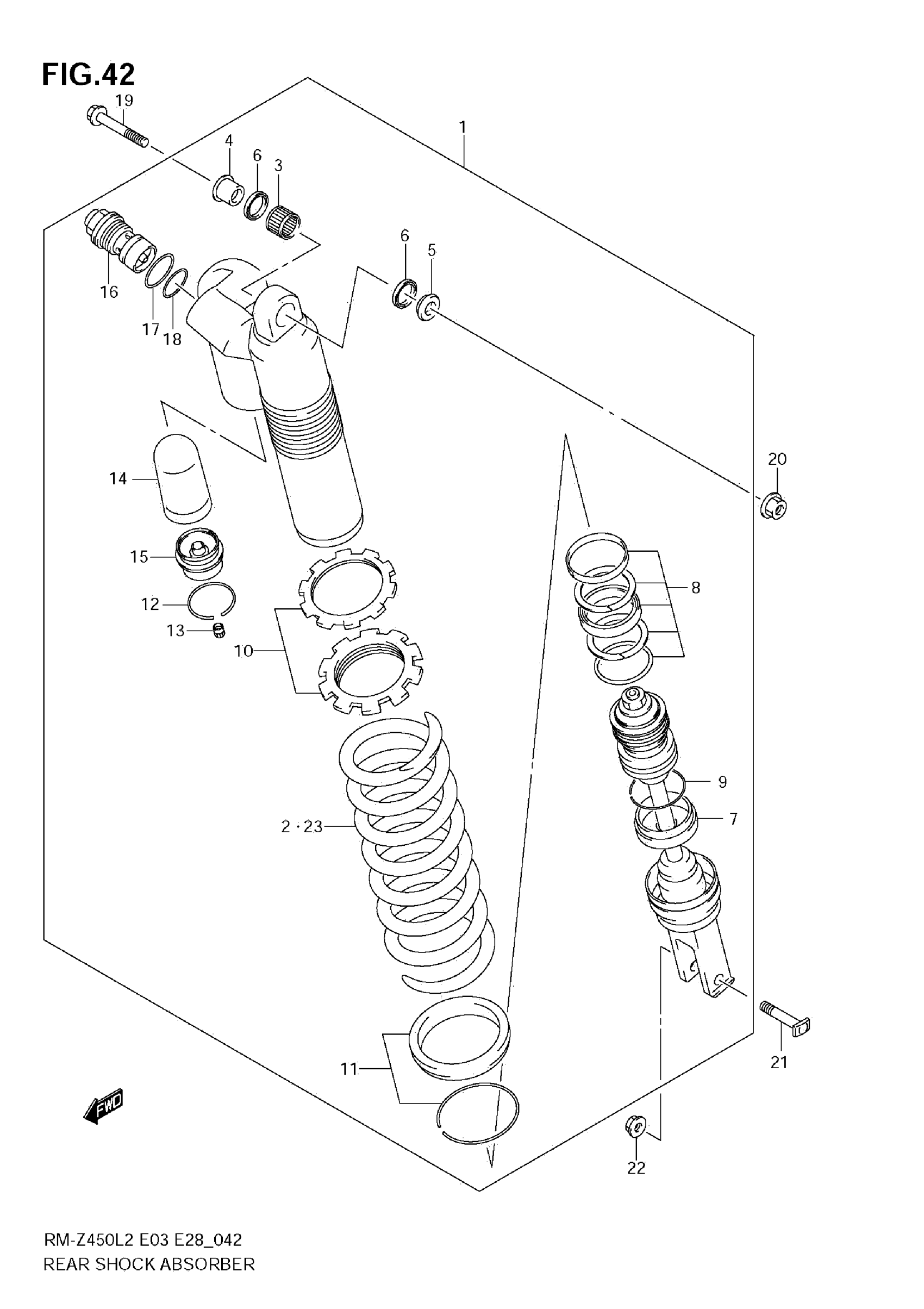

Suzuki RM-Z450L2 (2012) REAR SHOCK ABSORBER (E28) Diagram

ABSORBER ASSY, RR SHOCK (RED)

SPRING (K=5.8)

BEARING (16X22X12)

.SPACER,UPPER BRG,R

.SPACER,UPPER BRG,L

OIL SEAL (16X22X2.5)

ROD, PISTON

O RING SET

RING, STOPPER

ADJUSTER SET

SPRING SEAT SET

RING, STOPPER

..CAP,AIR VALVE

BLADDER

CAP, CHAMBER

BOLT, PLUG

O RING

O RING

BOLT,RR SHOCK ABSORBER UPR

NUT

BOLT,RR SHOCK ABSORBER LWR

NUT

SPRING (SOFT K=5.2) | OPT

SPRING (SOFT K=5.4) | OPT

SPRING (SOFT K=5.6) | OPT

SPRING (HARD K=5.9) | OPT

SPRING (HARD K=6.0) | OPT
