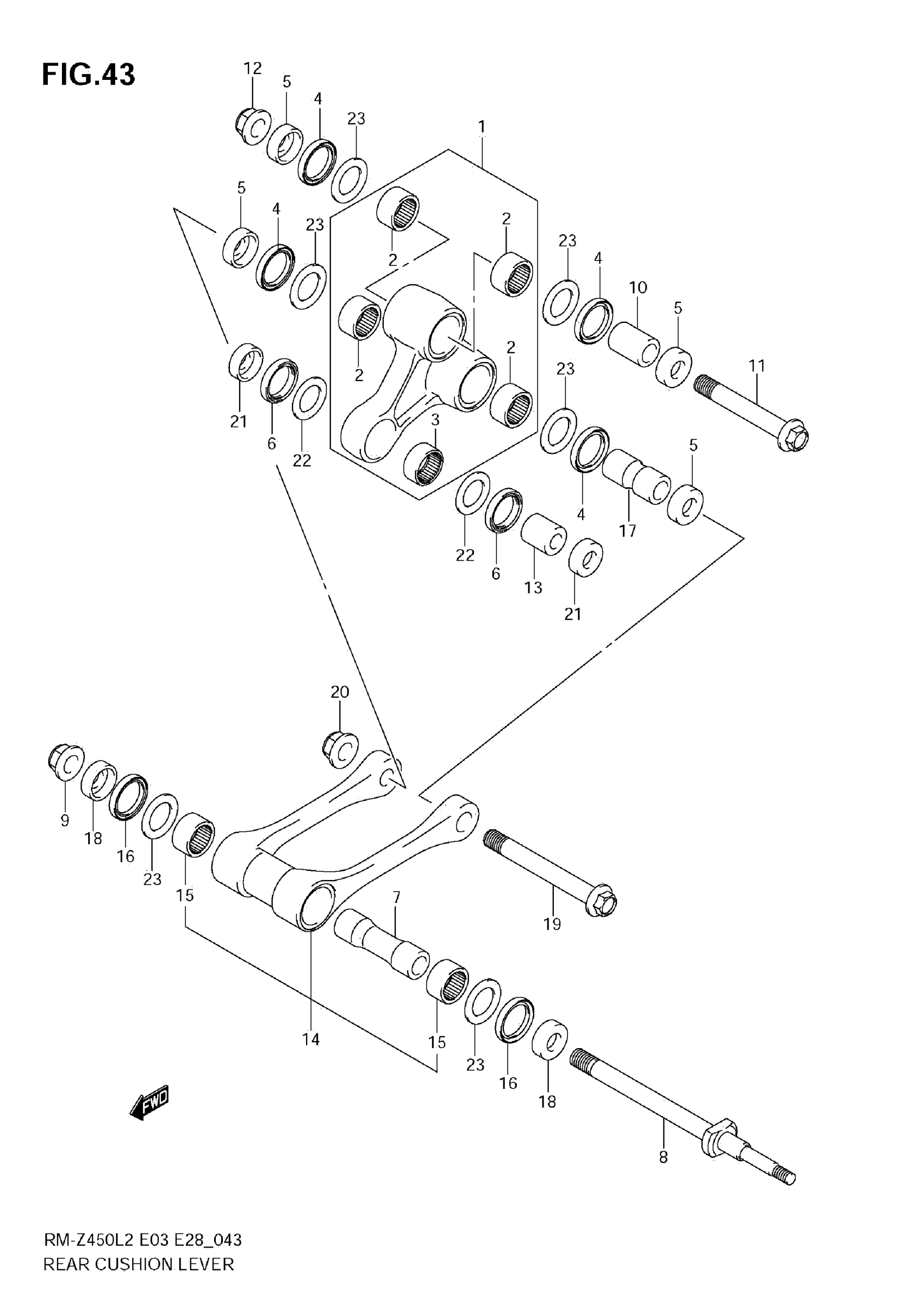

Suzuki RM-Z450L2 (2012) REAR CUSHION LEVER Diagram

#

Description
Price

1

LEVER SET, REAR CUSHION

62600-28880

$467.05

2

BEARING (20X26X14)

09263-20090

$16.23

3

BEARING (16X22X12)

09263-16033

$20.26

4

SEAL,OIL (24X31X5)

09285-24001

$7.22

5

SPACER

62647-28H10

$22.52

6

SEAL,OIL (22X28X4)

09284-22003

$10.19

7

SPACER, RR CUSHION ROD

62317-28H10

$38.55

8

BOLT, RR CUSHION ROD

62621-28H00

$46.22

9

NUT

09159-12056

$7.37

10

SPACER, CENTER (15X20X44)

62648-28H10

Unavailable

11

BOLT, CENTER

62658-37F10

$10.37

12

NUT

09159-12056

$7.37

13

SPACER, RR CUSHION LEVER FR

62684-28H10

$24.52

14

ROD SET, REAR CUSHION LEVER

62600-28890

$341.08

15

BEARING (20X26X14)

09263-20090

$16.23

16

SEAL,OIL (24X31X5)

09285-24001

$7.22

17

SPACER, RR CUSHION LOWER

62646-28H10

Unavailable

18

SPACER, RR CUSHION UPPER

62647-28H10

$22.52

19

BOLT, RR CUSHION LOWER

62657-37F10

$10.65

20

NUT

09159-12056

$7.37

21

SPACER, RR CUSHION LVR FR SIDE

62686-28H10

$24.52

22

SHIM (16X28X0.5)

09181-16214

$2.76

23

WASHER

08211-20301

$2.35
