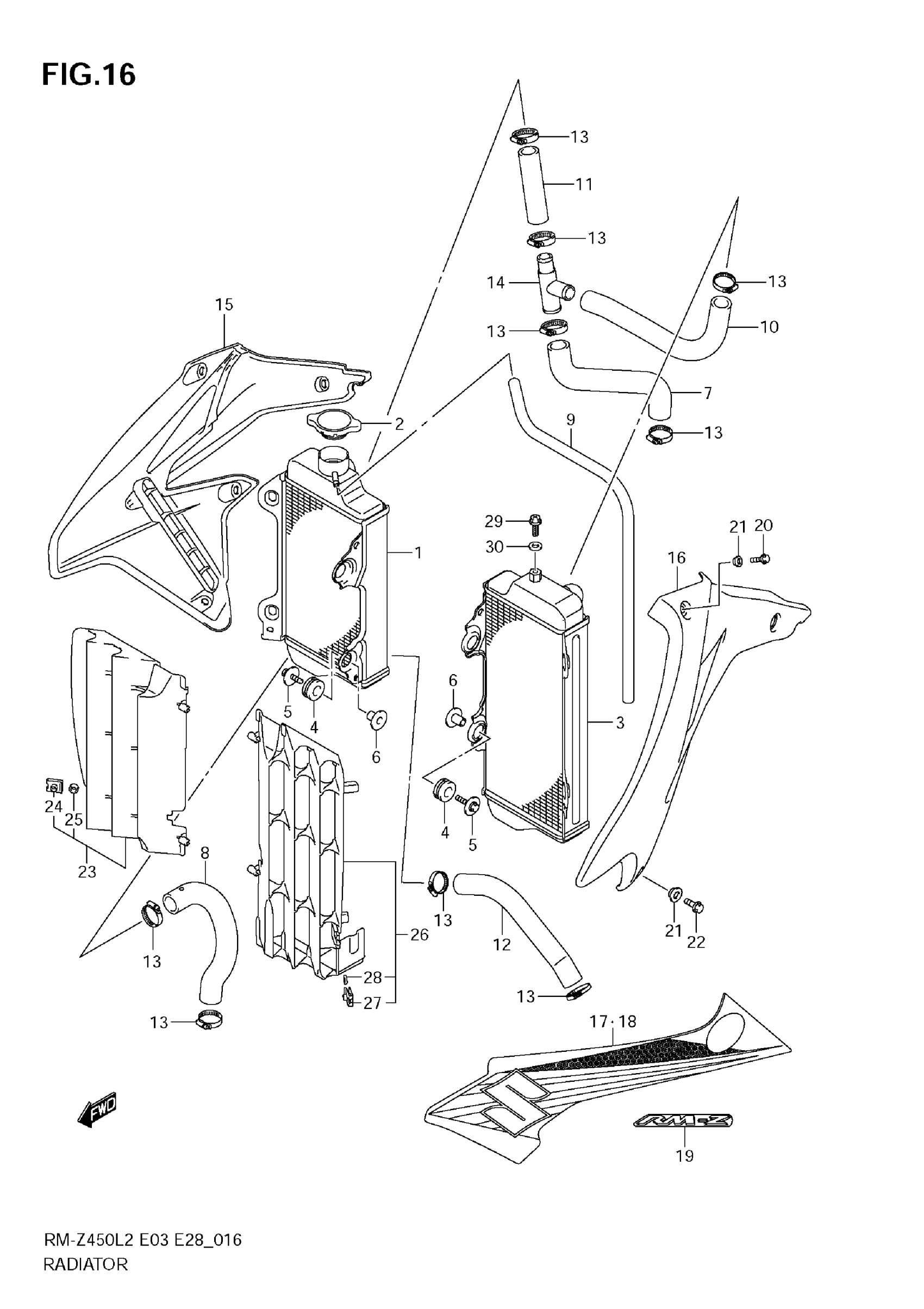

Suzuki RM-Z450L2 (2012) RADIATOR Diagram

#

Description
Price

1

RADIATOR, RH

17710-28H21

$401.77

2

CAP, RADIATOR This part replaces 17730-12C20.

17730-08J00

$42.50

3

RADIATOR, LH

17720-28H20

$466.25

4

CUSHION, SUPPORT

17787-19A00

$3.56

5

BOLT (6X25)

09116-06186

$2.61

6

SPACER (6.5X10.5X14.1)

09180-06243

$5.46

7

HOSE, INLET

17851-28H00

$18.58

8

HOSE, OUTLET

17852-28H00

$22.52

9

HOSE (5X8X2000) | L:2000->700 This part replaces 09351-50803-00A.

09351-50803-00B

$9.10

10

HOSE, JOINT UPPER NO.1

17853-28H00

$26.40

11

HOSE, JOINT UPPER NO.2

17854-28H00

Unavailable

12

HOSE, JOINT LOWER

17855-28H00

$18.18

13

CLAMP

09402-28513

$6.88

14

JOINT, RADIATOR HOSE

17857-35G10

$7.73

15

COVER, RADIATOR RH (YELLOW/BLACK)

17761-28H02-GY8

$104.82

16

COVER, RADIATOR LH (YELLOW/BLACK)

17762-28H02-GY8

$104.82

17

TAPE, RADIATOR COVER RH

68660-28H30-HCL

Unavailable

18

TAPE, RADIATOR COVER LH

68670-28H30-HCL

Unavailable

19

EMBLEM, RADIATOR COVER

68666-28H00-GGM

$41.05

20

BOLT (6X12)

09116-06221

$2.57

21

WASHER, RADIATOR COVER

63191-28H00

$10.28

22

BOLT

01547-0616A

$2.03

23

LOUVER, RADIATOR RH

17801-28H10

$52.22

24

.NUT

09148-06017

$3.20

25

.SPACER (6.2X10X2.2)

09180-06129

$2.12

26

LOUVER, RADIATOR LH

17802-28H10

$52.22

27

.NUT

09148-06017

$3.20

28

.SPACER (6.2X10X2.2)

09180-06129

$2.12

29

BOLT, AIR RELEASE

17568-50F00

$4.76

30

GASKET (6.4X11.5X0.8)

09168-06026

$3.10
