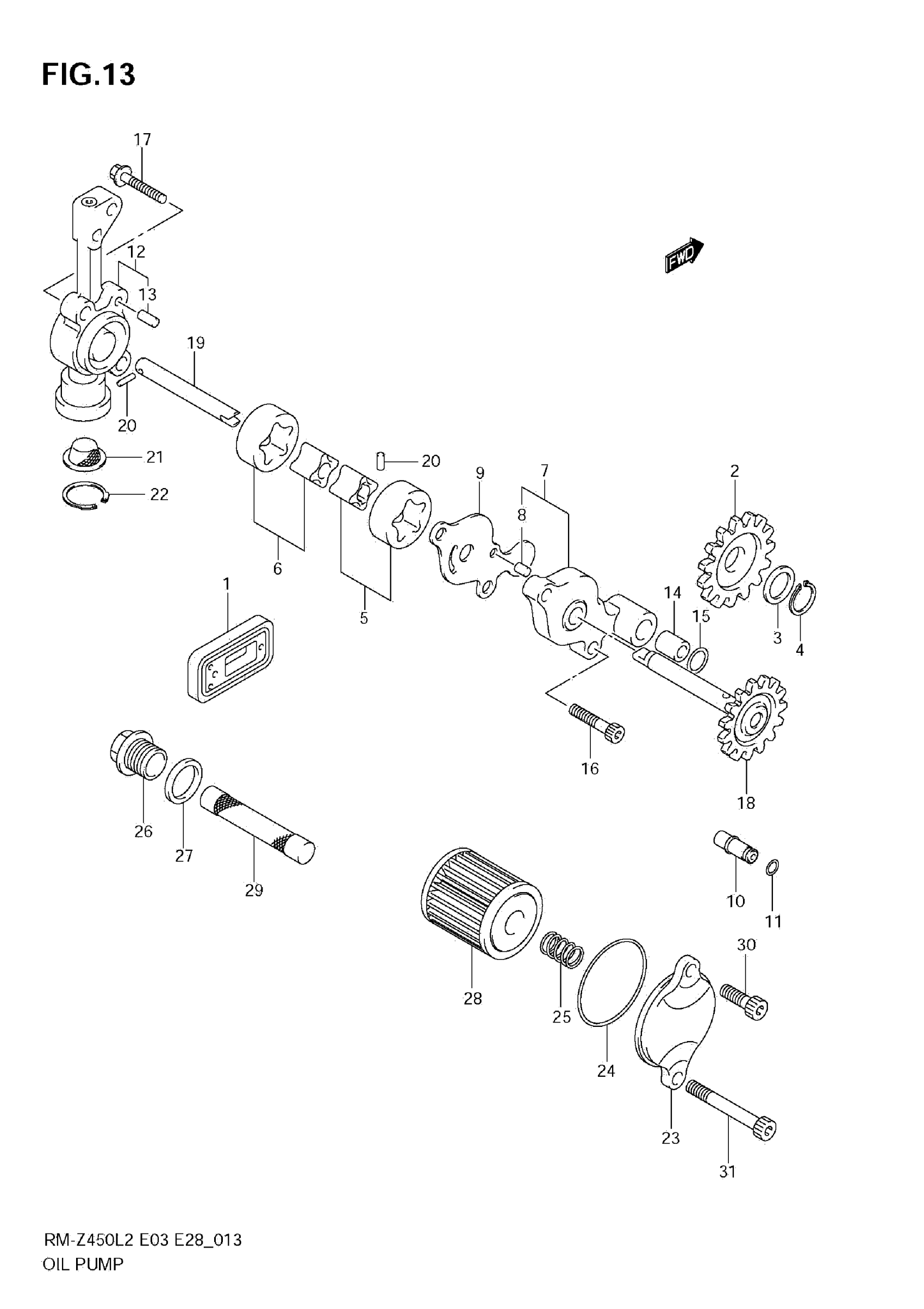

Suzuki RM-Z450L2 (2012) OIL PUMP Diagram

#

Description
Price

1

VALVE ASSY, OIL REED

13150-28H00

$42.85

2

GEAR,OIL PUMP IDLE (NT:15)

16321-28H00

$67.32

3

SHIM (12X18X0.5)

09181-12130

$2.06

4

CIRCLIP

08331-3112A

$1.78

5

ROTOR SET,OIL PUMP NO.1

16410-35G00

$37.45

6

ROTOR SET,OIL PUMP

16410-45G00

$40.84

7

COVER,OIL PUMP NO.1

16430-28H00

$44.07

8

PIN (4X13.8)

04221-04089

$1.49

9

PLATE,OIL PUMP NO.1

16432-35G10

$7.73

10

VALVE ASSY, OIL RELIEF

16440-28H00

$74.08

11

O RING (D:1.2,ID:4.7)

09280-05007

$1.92

12

COVER, OIL PUMP NO.2

16450-28H01

Unavailable

13

PIN (4X13.8)

04221-04089

$1.49

14

PIN

04211-09149

$1.65

15

.O RING (D:1.9,ID:8.6)

09280-09005

$3.70

16

BOLT

07130-0520B

$2.53

17

BOLT (6X25)

09103-06250

$2.23

18

SHAFT,OIL PUMP DRIVEN GEAR (N

16440-35G10

$76.30

19

SHAFT,OIL PUMP NO.2

16443-28H00

$19.38

20

PIN

09261-02008

$1.65

21

STRAINER,OIL PUMP NO.2

16530-28H00

$9.72

22

CIRCLIP

09381-19003

$2.11

23

CAP,ENG OIL FILTER OUTER

16315-35G30

$21.67

24

O-RING (D:2,ID:38.5) This part replaces 09280-39001.

09280-39002

$3.16

25

SPRING

09440-10038

$3.10

26

CAP, ENG OIL STRAINER

16316-10H01

$22.29

27

GASKET (16X22X2)

09168-16002

$1.91

28

FILTER, ENG OIL

16510-35G00

$10.13

29

STRAINER, ENGINE OIL

16520-10H00

$21.70

30

BOLT

01547-0616A

$2.03

31

BOLT

01547-0640A

$2.32
