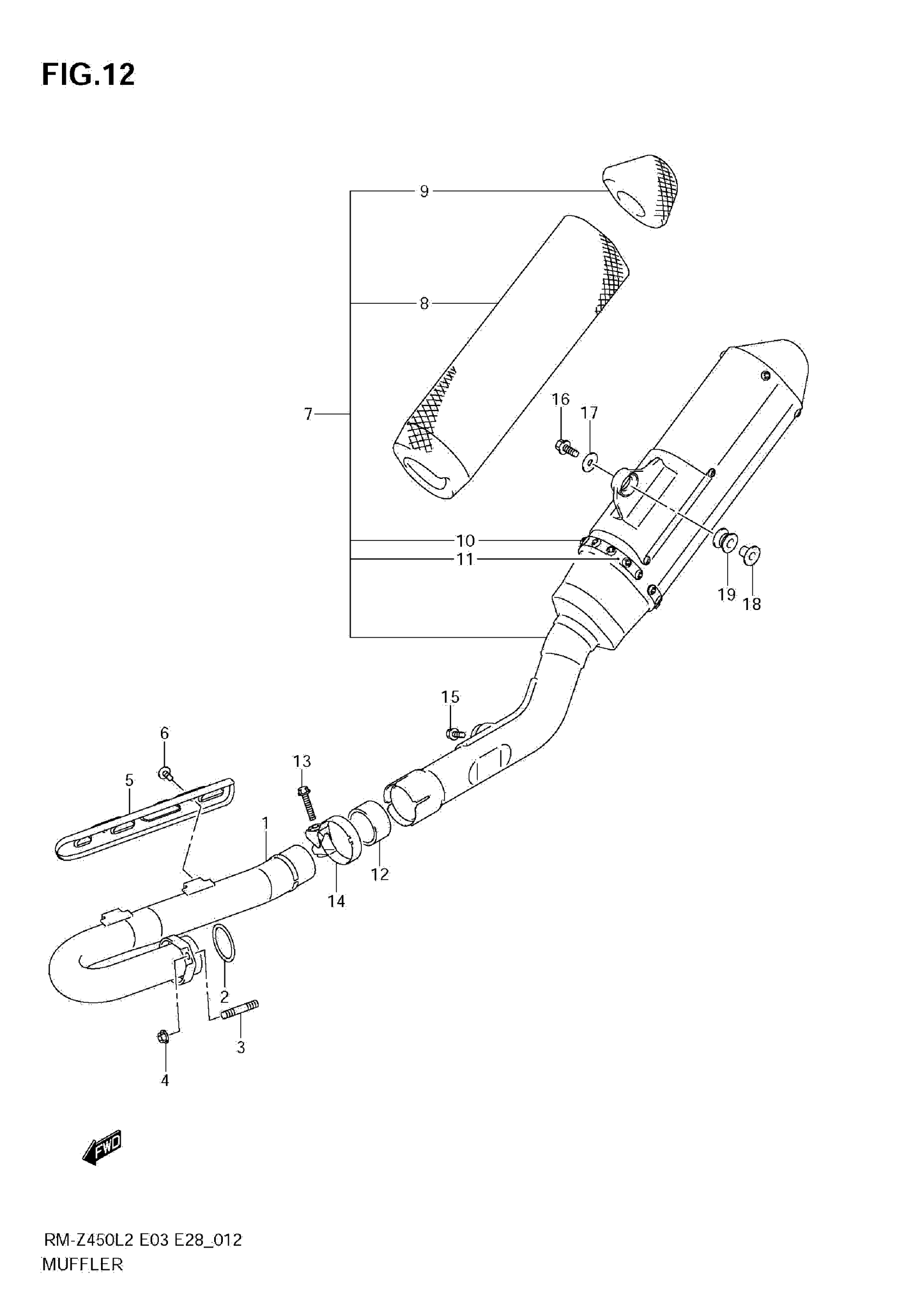

Suzuki RM-Z450L2 (2012) MUFFLER Diagram

#

Description
Price

1

PIPE, EXHAUST This part replaces 14150-28H20.

14150-28H50

$233.83

2

.GASKET,EXHAUST PIPE

14181-35G00

$9.31

3

BOLT, STUD

01421-0820A

$1.91

4

NUT

08316-1008A

$2.45

5

COVER,EXHAUST PIPE

14186-28H20

$54.75

6

BOLT (6X8)

09139-06178

$4.72

7

BODY, MUFFLER

14310-28H50

Unavailable

8

SILENCER, MUFFLER | OPT

14351-28H40

Unavailable

9

GLASS WOOL, MUFFLER TAIL | OPT

14355-49H00

$25.25

10

RIVET, MUFFLER

14454-28H00

Unavailable

11

.BAND,MUFFLER

14781-28H10

Unavailable

12

CONNECTOR

14771-42F10

$23.13

13

BOLT (8X35)

09103-08391

$2.50

14

CLAMP, CONNECTOR

14459-28H00

$36.80

15

BOLT (8X20)

09103-08426

$4.60

16

BOLT (8X35)

09103-08391

$2.50

17

WASHER (8.5X26X1.6)

09160-08151

$1.99

18

SPACER (8.6X12X18.5)

09180-08157

$7.12

19

CUSHION

09320-12043

$7.98
