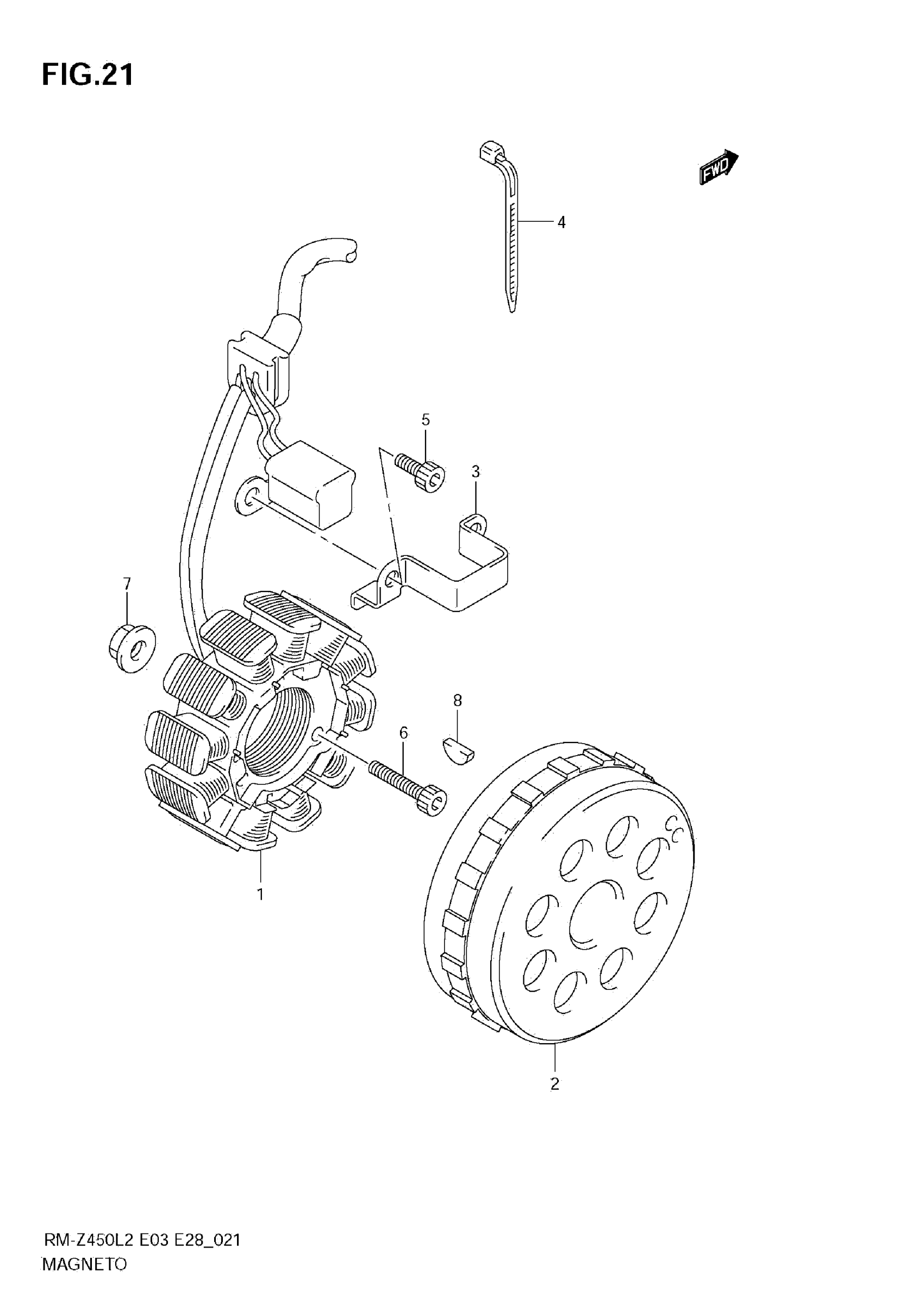

Suzuki RM-Z450L2 (2012) MAGNETO Diagram

#

Description

Price

1

STATOR ASSY, MAGNETO

32101-28H11

$552.53

2

ROTOR ASSY, MAGNETO

32102-28H10

Unavailable

3

CLAMP, MAGNETO LEAD

32371-35G00

Unavailable

4

CLAMP (L:125)

09407-14403

$2.26

5

BOLT

07130-0512A

$2.19

6

BOLT

07130-0525A

$2.28

7

NUT

08316-1012B

$2.76

8

KEY

08341-31039

$1.89
